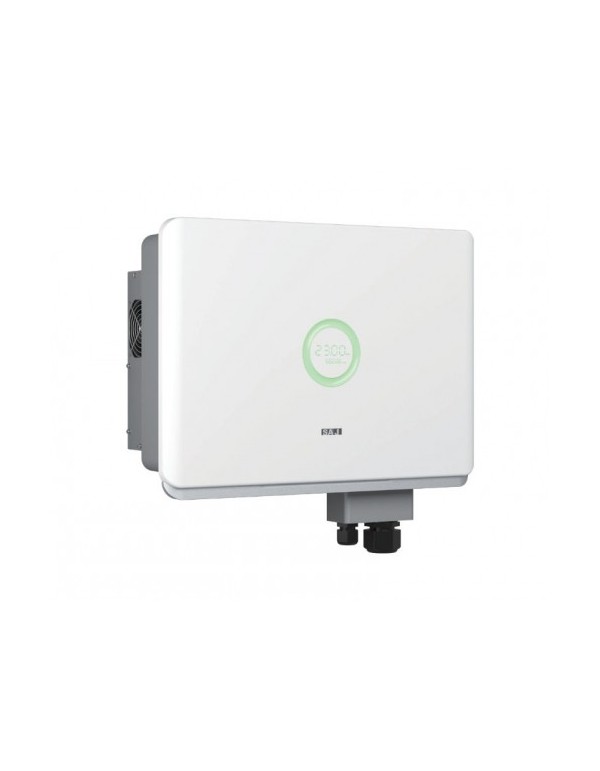

Inverter solar SAJ R6 25kw - Three-phase
R6-25K-T2-32
€1,222.00
Tax included
Inverter three-phase SAJ of 25000W with 2 MPPT, a maximum efficiency of 98.8% and a maximum entry current of 32a. These inverters They stand out for their safety, intelligence and efficiency.
The R6 series is a inverter of three phases connected to the network for installations in residential and commercial roofs. They have a new industrial aesthetic design, with a wide LED inside the luminous ring to highlight key information. The input current of 16a DC and the AFCI function (optional) make the R6 series a competitive product in the market. It is worth mentioning that this group of inverters It supports the supervision of the load during 24 hours, zero injection and commercial supervision solutions for intelligent energy management.
5 year warranty (expandable).
The R6 series stands out for the following characteristics:
- - Max. 16A photovoltaic entry current, better than that of the main photovoltaic modules of the market.
- - intelligently detects the arc signal on the DC side and cuts the energy to avoid fire for a safer operation.
- - Max Performance Efficiency 98.8% 150% Overdimensioning and 110% AC overload.
- - IP65 protection (outdoor and interior mounting).
- - WiFi included, USB connector and AC Plug & Play connector.
- - No fan available.
- - Optional network non-injection system.
Overview of the system:
Technical sheet:
|
Model
|
R6-25k-t2-32
|
|
Entrance (DC)
|
|
|
Max power of the photovoltaic matrix [Wp]
|
37500
|
|
Max input voltage. [V]
|
1100
|
|
Range of Voltage MPP [V]
|
180-1000
|
|
Nominal input voltage [V]
|
600
|
|
Boot voltage [V]
|
200
|
|
Max input current. [A]
|
32/32
|
|
Short circuit current max.[A]
|
38.4 / 38.4
|
|
Number of MPP trackers
|
2
|
|
Number of chains by MPP tracker
|
2/2
|
|
Departure (CA)
|
|
|
Nominal AC output power [W]
|
25000
|
|
AC output power max. [VA]
|
27500
|
|
Nominal AC output current [A]
|
36.2
|
|
AC output current max. [A]
|
41.7
|
|
Voltage / CA Nominal Range [V]
|
3L + N + PE, 220/380, 230/400, 240/415; 180-280 / 312-485
|
|
FREQUENCY / NOMINAL RANGE OF THE AC NETWORK [Hz]
|
50, 60 / 44-55, 54-65
|
|
Total distortion harmonic [THDi]
|
|
|
Power factor
|
0.8 Leader ~ 0.8 lagging
|
|
Power phases / AC connection phases
|
3/3
|
|
Effectiveness
|
|
|
Max. Efficiency
|
98.8%
|
|
Euro efficiency
|
98.5%
|
|
Protection
|
|
|
DCI monitoring
|
Integrated
|
|
GFCI monitoring
|
Integrated
|
|
Network monitoring
|
Integrated
|
|
AC grounding detection
|
Integrated
|
|
Protection against CA short circuits
|
Integrated
|
|
DC isolation resistance detection
|
Integrated
|
|
CC overvoltage protection
|
Type III
|
|
Protection against overvoltages
|
Type III
|
|
Anti-printer
|
AFD
|
|
AFCI protection
|
Optional
|
|
Interface
|
|
|
AC
|
Terminal block
|
|
DC connection
|
Mc4
|
|
Monitor
|
LED + APP (Bluetooth)
|
|
Communication port
|
RS232 (USB) + RS485 (RJ45) + DRM (RJ45)
|
|
Communication mode
|
WiFi / Ethernet / 4g
|
|
Cargo monitoring
|
24/7 (optional)
|
|
General data
|
|
|
Topology
|
Transformer
|
|
Operating temperature range
|
-40 ° C. ~ + 60th C
|
|
Cooling method
|
intelligent cooling fan 0% ~ 100% without condensation
|
|
Noise [dBA]
|
|
|
Dimensions [H*W*D] [mm]
|
409 * 558 * 234
|
|
Weight [kg]
|
23.7
|
|
Certifications
|
IEC / EN62109-1 / 2, EN61000-6-1 / 2/3/4, IEC61683, IEC60068-2, IEC62116, ESC61727, PEA / MEA, VDE0126-1-1 / A1, CEI 0-21, VDE-AR-N 4105, AS / NZS4777.2, CQC NB / T 32004, G98 / G99, NBR 16149, NBR 16150, C10 / 11, RD1669, UNE206006, UNE206007, EN50438
|
- Power (kW)
- 20 - 29.9
- Phase Type
- Three-phase
- Max Current Input (A)
- 20+
