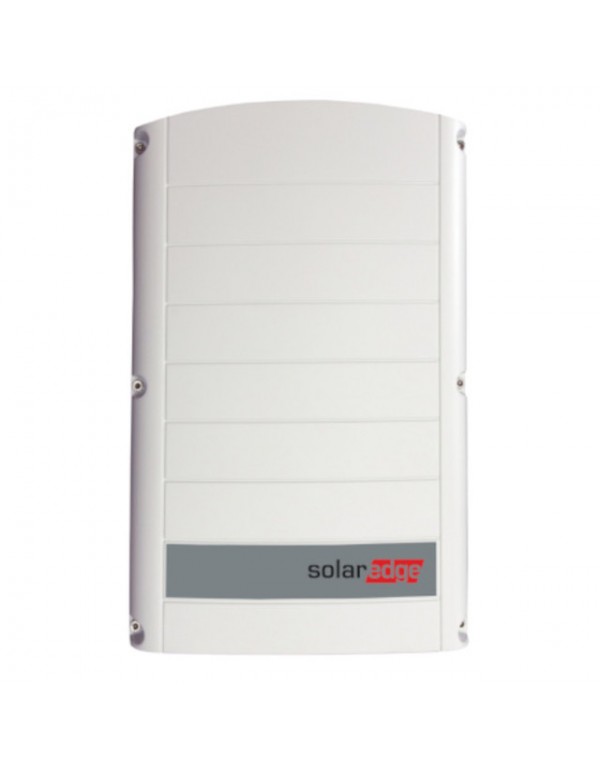

Solar inverter SolarEdge SE16K 16kW - three phase
Solar inverter SolarEdge SE16K 16kW - three phase

Inverter solar SolarEdge SE16K 16KW - Three-phase

SE16K-RW0T0BNN4
€1,440.23
Tax included

Inverter three-phase SolarEdge Network connection 16000W with SetApp configuration. It has an efficiency of 98% and a maximum entry current of 23 A. These inverters They stand out for their efficiency, lightness and safety.

The inverter Maximizes solar energy obtaining thanks to combining digital control technology with an efficient energy conversion architecture. Fixed voltage technology guarantees that the inverter Always running at an optimal input voltage, regardless of the number of modules in a chain or environmental conditions. The data of the monitoring receiver of the inverter and the performance of the energy optimizer of each solar board can be transmitted to the Web.

12-20 year warranty.



The inverters three-phase solar SolarEdge They stand out for the following characteristics:

  • - Upper efficiency (98%)
  • - Quick and simple start-up inverter directly from a smartphone using the SetApp SolarEdge
  • - Small, the lightest of your kind and easy to install
  • - Integrated monitoring at the module level
  • - Internet connection through Ethernet or wireless (via Wi-Fi, ZigBee® or cellular supplements)
  • - IP65 - Exterior and interior installation
  • - Inverter of fixed voltage for longer chains
  • - Control of intelligent energy management
  • - Optional integrated DC security unit: eliminates the need for external DC insulators
  • - Advanced security features: integrated protection against arc failures and optional fast disconnection
  • - CC surge protection and optional DC fuses
  • - Excellent reliability with a standard 12 year warranty (expandable at 20 or 25 years)

Technical sheet:

Model

Se16k-RWS

EXIT



Nominal power output of CA

16000 W

Maximum power of AC output

16000va

AC output voltage (nominal)

380/220; 400/230 VAC

AC output voltage range

184 - 264.5 VAC

AC frequency (nominal)

50/60 ± 5 Hz

Maximum continuous output current

25.5

Admitted grids - three-phase

3 / N / PE (Wye with neutral)

Monitoring of Public Services, Islands Protection, Configurable Power Factor, Configurable Thresholds by Country

Yes

ENTRANCE



Maximum power of CC

21600 W

No transformers, without ground connection

Yes

Maximum input voltage

1000 VDC

Nominal DC input voltage

750 VDC

Maximum input current

23 ADC

Reverse polarity protection

Yes

Earth fault insulation detection

            Sensitivity of 700 kΩ

Maximum efficiency of the inverter

98%

European weighted efficiency

97.7%

Compliance with rules



Security

IEC-62103, IEC-62109, AS3100

Network connection standards

VDE-AR-N-4105, G59 / 3, AS-4777, EN 50438, CEI-021, VDE 0126-1-1, CEI-016, BDEW

Emissions

IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12

Installation specifications



CA output - diameter of the cable gland

15 - 21 mm

DC Entrance (PV)

2 x Par MC4

Dimensions (H x W x D)

540 x 315 x 260 mm

Noise

Weight

33.2 kg

Cooling

Fan (replaceable by the user)

Operating temperature range

-40 to +60 c

Degree

IP65 - Exterior and Interior
Power (kW)
15 - 19.9
Phase Type
Three-phase
Max Current Input (A)
20+
