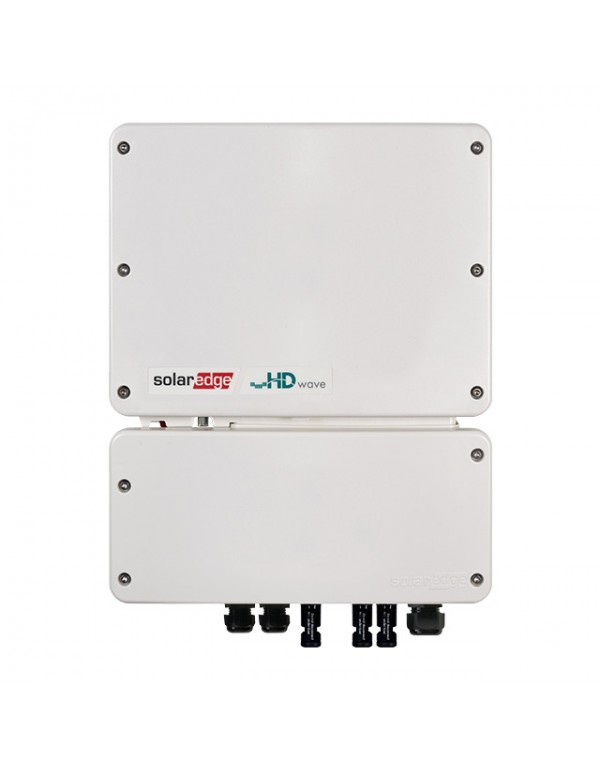

Inverter solar SolarEdge Storedge HD-Wave 6.0kw
SE6000H-RWS00BNO4
€1,419.97
Tax included
Inverter Single-phase 6000W Storedge with HD-WAVE technology and SetApp configuration. It has an efficiency of 99% and a maximum entry current of 16.5 A. Storedge stands out for its efficiency, reliability, simplicity and easy installation.
The design of this inverter It works so if it is disconnected, it collects the energy of all the optimizers to a safe voltage so that there is no danger of electrocutions and can work without problems. This power management, gets unlike classical network connection systems in which all go in a single series, the performance of each panel does not influence those that are connected to it inverter, but they bring the energy that each of them captures
12 year warranty.
The inverters solar Solar Storedge stand out for the following characteristics:
- - Installation and management of simple inventory.
- - High reliability and efficiency.
- - A unique inverter manage FV, self-consumption and battery power.
- - Allows the connection of supplier batteries as LG Chem Resu.
- - Integrated module level monitoring.
- - Designed to remove tension and CC intensity during installation, maintenance or fire extinction.
- - Inverter at fixed tension for longer strings.
- - Installation outdoors and indoors.
Technical sheet:
Model | Se6000h |
EXIT |
|
Nominal power output of CA | 6000va |
Maximum power of AC output | 6000va |
AC output voltage (nominal) | 220/230 VAC |
AC output voltage range | 184 - 264.5 VAC |
AC frequency (nominal) | 50/60 ± 5 Hz |
Maximum continuous output current | 27.5 a |
Total harmonic distortion (THD) | |
Power factor | 1, adjustable from -0.9 to 0.9 |
Monitoring of Public Services, Islands Protection, Configurable Power Factor, Configurable Thresholds by Country | Yes |
Load the battery from ca | Yes |
Entrance (PV) |
|
Maximum power of CC | 12000 W |
No transformers, without ground connection | Yes |
Maximum input voltage | 480 VDC |
Nominal DC input voltage | 380 VDC |
Maximum input current | 1 6.5 ACC |
Reverse polarity protection | Yes |
Earth fault insulation detection | 600 kΩ |
Maximum efficiency of the inverter | 99.2% |
European weighted efficiency | 99% |
Entrance (battery) |
|
Compatible batteries | LG Chem Resu7h, LG Chem Resu10h, LG Chem Resu10h Prime, LG Chem Resu16h Prime |
Number of batteries inverter | A single battery LG Chem resu7h or resu10h two batteries LG Chem Resu10h or Resu16h Prime |
Loading and continuous maximum discharge of the battery | 5000 W |
Maximum input voltage | 480 VDC |
Maximum continuous current | ADC |
Compliance with rules |
|
Security | IEC-62109-1 / 2, AS-3100 |
Network connection standards | IEC61727, IEC62116, EN 50438, VDE-AR-N-4105, VDE 0126-1-1, UTE_C_15-712, G83 / 2, G59 / 3, Ce- 021, Önorm, TF3.2.1, C10-11, NRS 097-2-1 |
Emissions | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC Part 15 Class B |
Installation specifications |
|
CA output - compatible cable diameter | 9-16 mm |
AC - Transversal section of compatible wire | 1-10 mm ^ 2 |
DC Entrance (PV) | 1 x MC4 |
Battery entry | 1 x MC4 |
Dimensions (H x W x D) with Storedge interface | 450 x 370 x 174 mm |
Noise | |
Weight | 10 kg |
Cooling | Natural convection |
Operating temperature range | -40 to +60 c |
Degree | IP65 - Exterior and Interior |
- Power (kW)
- 6 - 9.9
- Phase Type
- Single phase
- Max Current Input (A)
- 16 - 16.99
- Compatibility list
- LG RESU
