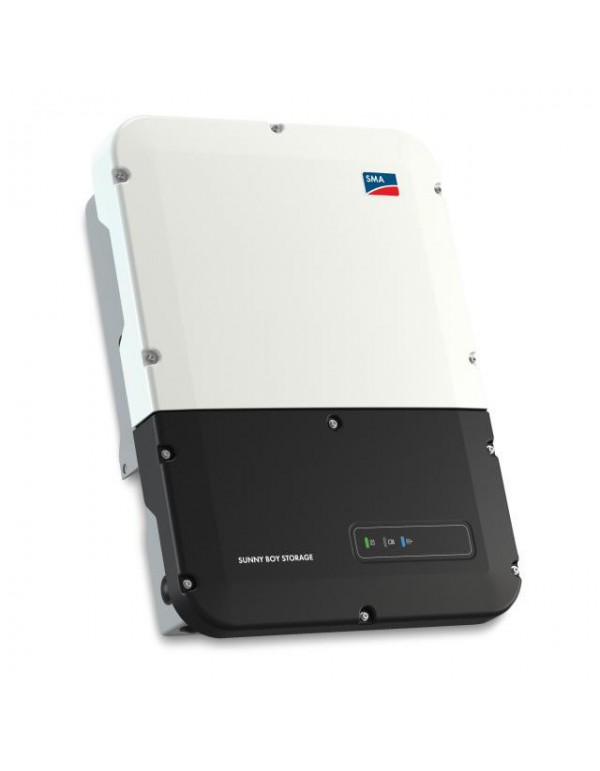

Hybrid Inverter SMA Sunny Boy Storage 2.5
SBS2.5-1VL-10
€699.00
Tax included
1043,533 Solar Hybrid Solar Hybrid for Network Connection SMA of 2500 BC with 3 MPPT with an efficiency of 96.1% and a maximum input current of 10 A with convection cooling system. This inverter It stands out for its flexibility, simplicity and efficiency.
The inverters Sunny Boy Storage are protected against short circuits, overloads and high temperatures, will provide trouble-free operation of your three-phase solar installation for many years. Inverter Network connection hybrid for solar installations with excellent value for money. It does not include transformer and offers IP65 protection.
Product guarantee of 5 years.
The inverter Sunny Boy Storage 2.5 is characterized by the following characteristics:
- - Versatile configuration and expandable photovoltaic design
- - For new and existing plants
- - Free choice of high-voltage lithium-ion battery
- - Installation possible with a person
- - WLAN and intuitive web interface
- - Transparency thanks to its direct connection with Sunny Portal / Sunny Places
- - The system connected to the most economical CA in the market
- - Dynamic injection regulation for inverters of SMA with WebConnect
Technical sheet:
|
Model
|
Sunny Boy Storage 2.5
|
|
AC
|
|
|
Nominal power (at 230 V, 50 Hz)
|
2500 W
|
|
Max power apparent
|
2500 VA
|
|
Nominal AC voltage / Range
|
220V, 230 V, 240 V / 180 V A 280
|
|
AC network frequency / range
|
50 Hz, 60 Hz / from -5 Hz A + 5Hz
|
|
Alternate current max
|
11 a
|
|
Assigned / adjustable power factor
|
1 / 0.8 inductive to 0.8 capacitive
|
|
Power phases / connection phases
|
1/1
|
|
Battery DC Entrance
|
|
|
CC power max.
|
2650 W
|
|
Max tension cc
|
500 V
|
|
DC voltage min, / DC start voltage
|
100 V / 100 V
|
|
Continuous current max.
|
10 a
|
|
Short circuit current max.
|
18 a
|
|
Battery types
|
Lithium ions
|
|
Effectiveness
|
|
|
Max Performance / european
|
97.5% / 96,1%
|
|
Protective devices
|
|
|
Insulation vigilante / network monitoring
|
● / ●
|
|
CC Reverse Polarity Protection / CA Short Resistance / Galvanic Separation
|
- / ● / -
|
|
Residual current monitoring unit sensitive to all poles
|
●
|
|
Protection class / overvoltage category
|
I / III
|
|
General data
|
|
|
Dimensions (w / h / d)
|
450 mm / 357 mm / 122 mm (17.7 inch / 14.1 inch / 4.8 inch)
|
|
Weight / Weight incl. packaging
|
9.2 kg (20.3 lbs)
|
|
Operating temperature range in battery operation
|
Of -40 ° C to +60 ° C (from -40 ° F to +140 ° F)
|
|
Emission of noise, typical (1 m away)
|
|
|
Topology
|
Transformer
|
|
Cooling method
|
Convection
|
|
Protection against the entrance
|
Ip65
|
|
Climate category
|
4k4h
|
|
Maximum permissible value for relative humidity
|
100%
|
|
Equipment / function / accessories
|
|
|
Connection of CC / CA
|
Connector / connector
|
|
Display via phone, tablet or laptop
|
●
|
|
Integrated Web Server
|
●
|
|
Interfaces: Ethernet / WLAN
|
● / ●
|
|
Communication protocols
|
Modbus (SMA, SunSpec), WebConnect
|
|
Communication of the battery
|
Bus
|
|
Limitation of integrated dynamic active power (from 0 to 100%)
|
●
|
|
Warranty 5/10 years
|
● / ●
|
|
Certificates and Authorizations (Others on request)
|
AS4777, C10 / 11/2012, CEI0-21, CE, DIN EN 62109-1 / IEC 62109-1, G59 / 3 EN50438, G83 / 2, NEN 50438, VDE-AR- N4105, VDe0126-1-1, VFR 2014
|
|
Certificates and Authorizations (in Planning)
|
IEC61727, NRS097, PPC, PPDS, RD 1699
|
|
Commercial model
|
Sbs2.5-1vl-10 |
- Power (kW)
- 0.5 - 0.9
- Phase Type
- Three-phase
- Max Current Input (A)
- 10-10.99
