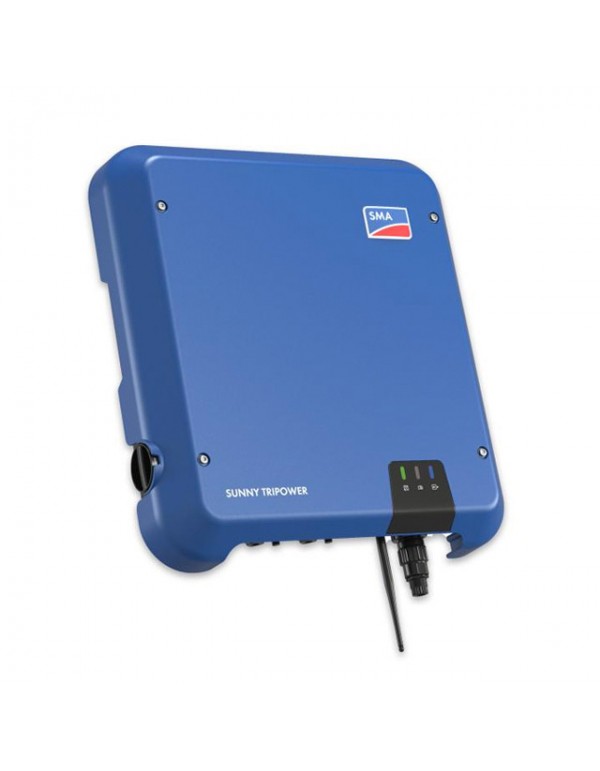

Solar inverter SMA Sunny Tripower STP5.0-3AV-40

Inverter solar SMA Sunny Tripower STP5.0-3AV-40

Name: Inverter solar SMA Sunny Tripower STP5.0-3AV-40
Brand: SMA
SKU: SUNNY TRIPOWER 5.0
Price: 1640.76 EUR
Availability: PreOrder

Reference SUNNY TRIPOWER 5.0

€1,640.76

Tax included

Inverter Three-phase solar for self-consumption or network connection SMA of 5000W AC with 2 MPPT with 97.4% efficiency and maximum 12A input current per inlet with convection cooling. The Sunny Tripower stands out for its variety of configurations, wide MPPT voltage range and its lightweight and compact structure.

The Sunny Tripower have short-circuit protection, overloads and high temperatures, will provide a problem-free operation in its three-phase solar installation for many years. Inverter Solar for solar installations with excellent value for money. The Sunny Tripower line does not include transformer, in addition to offering a degree of protection.

Warranty of 5 years of product.

The inverters sunny Sunny Tripower Solar stand out for the following characteristics:

- Inverter solar lightweight (17kg) which allows you to manage by one person
- Compact design inverter to occupy less space
- Easy installation with the Plug & Play system
- Intelligent management and energy storage solutions can be added at any time
- It can be combined with the TS4-R components to optimize the module
- Use of excess energy by dynamic limitation of active power
- Shadow Management with Optitra Global Peak or Integrated TS4-R

Curva de eficiencia

Model	Sunny Tripower 5.0
Max power. Ad	9000 W
Voltage Max. Entrance	850 V
Range Voltage MPP	215V to 800 V
Voltage Nominal Entrance	580 V
Min. Voltage Entrance / Voltage Initial Entrance	125 V / 150 V
Max current. Entry: Entrance to / input B	12 a / 12 a
Max. Current Entry by String: Input A / Input B	18 a / 18 a
Number of independent entries MPP Input / Strings by entry MPP	2 / A: 1; B: 1
OUTPUT (AC)
Power (at 230 V, 50Hz)	5000 W
Max. Apparent power AC	5000 VA
Nominal Voltage AC / Range	3 / no / PE; 220 V / 380 V 3 / no / PE; 230 V / 400 V 3 / no / PE; 240 V / 415 V
AC Frequency / Range	50 Hz, 60 Hz / -5 Hz to +5 Hz
Nominal frequency / nominal voltage	50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Max current. Exit	3 x 7.6 A
Power factor at nominal power	1
Power factor setting	+/- 0.8
FASHINGSCARING / FASESCONNECTION	3/3
Eficienciamax. Efficiency	98.2% / 97.4%
Protection elements
Internal disconnection point	●
Earthing monitoring / Network monitoring	● / ●
Reverse polarization protection in DC / Short circuit capacity AC / Galvanic isolation	● / ● / -
Residual-polle-sensitive monitoring unit	●
Protection Type (IEC 62103) / SOVERVALEE CATEGORY (based on IEC 60664-1)	I / III
Datosgenerales
Dimensions (width / high / long)	435 mm / 470 mm / 176 mm (17.1 inches / 18.5 inches / 6.9 inches)
Weight	17 kg (37.4 lbs)
Operating temperature range	-25 ° C to + 60 ° C (-13 ° F to + 140 ° F)
Emission, typically	30 dB (a)
Self-consumption (night)	5.0 w
Topology	Transformer
Type of cooling	Convection
Degree of protection (based on IEC 60529)	Ip65
Climate category (based on IEC 60721-3-4)	4k4h
Max value. allowed for relative humidity (without condensing)	100%
Teams
Connection / Connection	Sunclix / AC connector
View on Smartphone, Tablet, Laptop	●
Interface: WLAN, Ethernet / RS485	● / ● / ●
Warranty: 5/10 / 15 years	● / ○ / ○
Certificates and approvals (more available upon request)	AS 4777, C10 / 11, CE, CEI 0-21, DIN EN 62109-1 / IEC 62109-1, DIN EN 62109-2 / IEC 62109-2, EN 50438, G59 / 3, G83 / 2, NEN-EN 50438, ÖVE / ÖNORM E 8001-4-712, PPDS, PPC, RD 1699, SI 4777, TR 3.2.1, UTE C15-712, VDe-AR-N 4105, VDE-0126-1-1, VFR 2014
Certificates and Approvals	DEWA 2016, EN 62116, IEC 61727, IE-EN 50438, NBR 16149, NRS 097-2-1
Availability of SMA Smart Connected in countries	Au, at, be, ch de, es, it, lu, nl, uk
Reference	Stp5.0-3av-40

Power (kW): 3 - 5.9
Phase Type: Three-phase
Max Current Input (A): 12 - 12.99
