Inverter Solar Fronius Symo 7.0kw -3-M Full | Inverters Three-phase network connection solar

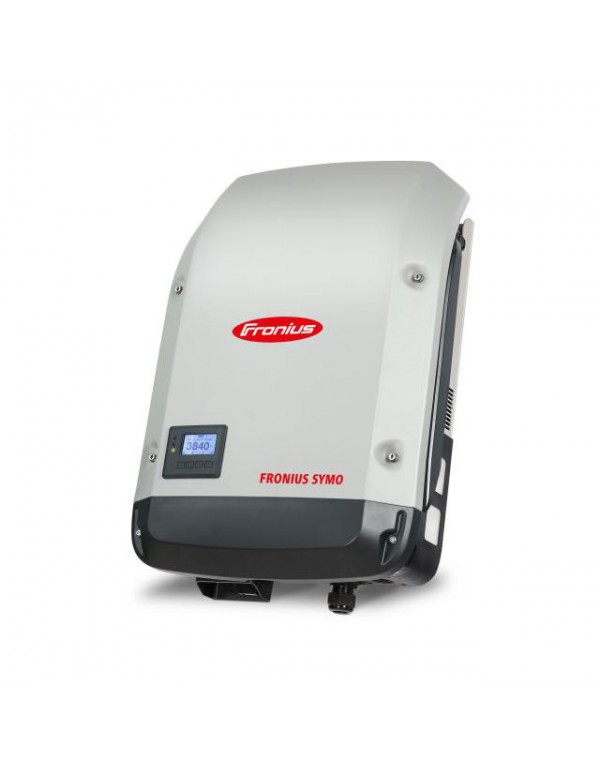

Fronius Symo 7.0kw Full: Performance and Advanced Connectivity for Your Solar Plates

The passage to a three-phase system of 7000w Requires components of maximum robustness to ensure impeccable energy management. The Symo series of Fronius complies with the highest expectations, protecting internal electronics against short circuits or thermal peaks while simply synchronizing your energy solar with the electrical network of your property.

Integrated Communication and SolarWeb Monitoring

Unlike simplified "light" variants, inverters solar range Full They integrate a complete data transmission ecosystem. When connecting wirelessly via WiFi or using Ethernet cable to your local network, it allows to dump all performance information to the free portal Fronius Solar.web. This gives you an absolute control of your production solar panels And from the daily consumer curves in real time, all manageable intuitively through its mobile application.

Installation flexibility with Snapinverter and Dynamic Peak Manager

Modular design Snapinverter Revolutionize assembly and maintenance tasks. The wall bracket and all cable connections are fixed independently of the power stage of the apparatus. If at some point a technical intervention is required, it is not necessary to remove all wiring from the photovoltaic plates, reducing times and costs. In addition, this inverter Solar Solverts Intelligently Partial Shades Thanks to Algorithm Dynamic Peak Manager, which constantly evaluates the behavior of the cells to ensure that the system always operates at its point of maximum power available.

Technical specifications (Symo 7.0-3-M Full model):

• Nominal output power (AC): 7000 W

• Maximum input power (DC): 14000 W (excellent capacity for oversizing solar)

• Number of MPPT followers: 2

• Start voltage (DC): 200 V

• Nominal input voltage (DC): 595 V

• Maximum input voltage (DC): 1000 V

• Maximum input current (MPPT1 / MPPT2): 16.0 A / 16.0 A

• Short circuit current (MPPT1 / MPPT2): 24.0 A / 24.0 A

• Nominal output current (AC): 10.1 a

• Network connection: Three-phase (380V / 400V)

• Degree of environmental protection: IP65 (suitable for outdoor or interior mounting)

• Serial connectivity: Datamanager, WLAN, Ethernet, Modbus TCP / RTU, Fronius Solar API

• Refrigeration system: Smart forced ventilation (Active Cooling)

• Team weight: 21.9 kg

Frequently Asked Questions (FAQ)

Why choose the Symo 7.0kw "Full" version instead of the "Light" version? The model Full Includes the factory installed DataManager data card. This means you have wifi and native Ethernet connectivity to link the inverter Solar with the monitoring application on your smartphone, without the need to acquire additional communication walkways.

Can I integrate lithium batteries into this inverter of 7000W? The inverters solar range Fronius Conventional Symo operate exclusively under the mode of connection to pure network. They do not support direct coupling of lithium batteries. If you require accumulation for your surpluses, we advise you to consult our section of inverters hybrid.

How does Zero injection work on this equipment? If your installation produces more energy than you consume and do not want to pour electricity to the network (or the legalization procedures of your solar panels they are pending), the inverter Solar adapts its output power instantly to strictly cover your domestic demand, achieving a totally null dump.

What advantages does the active ventilation system offer in this model? The system Active Cooling Forcedly extracts the hot air from the internal components. This prevents the inverter Solar reduces its performance by excess temperature (derating) and protects the useful life of all electronics against hot climates.
