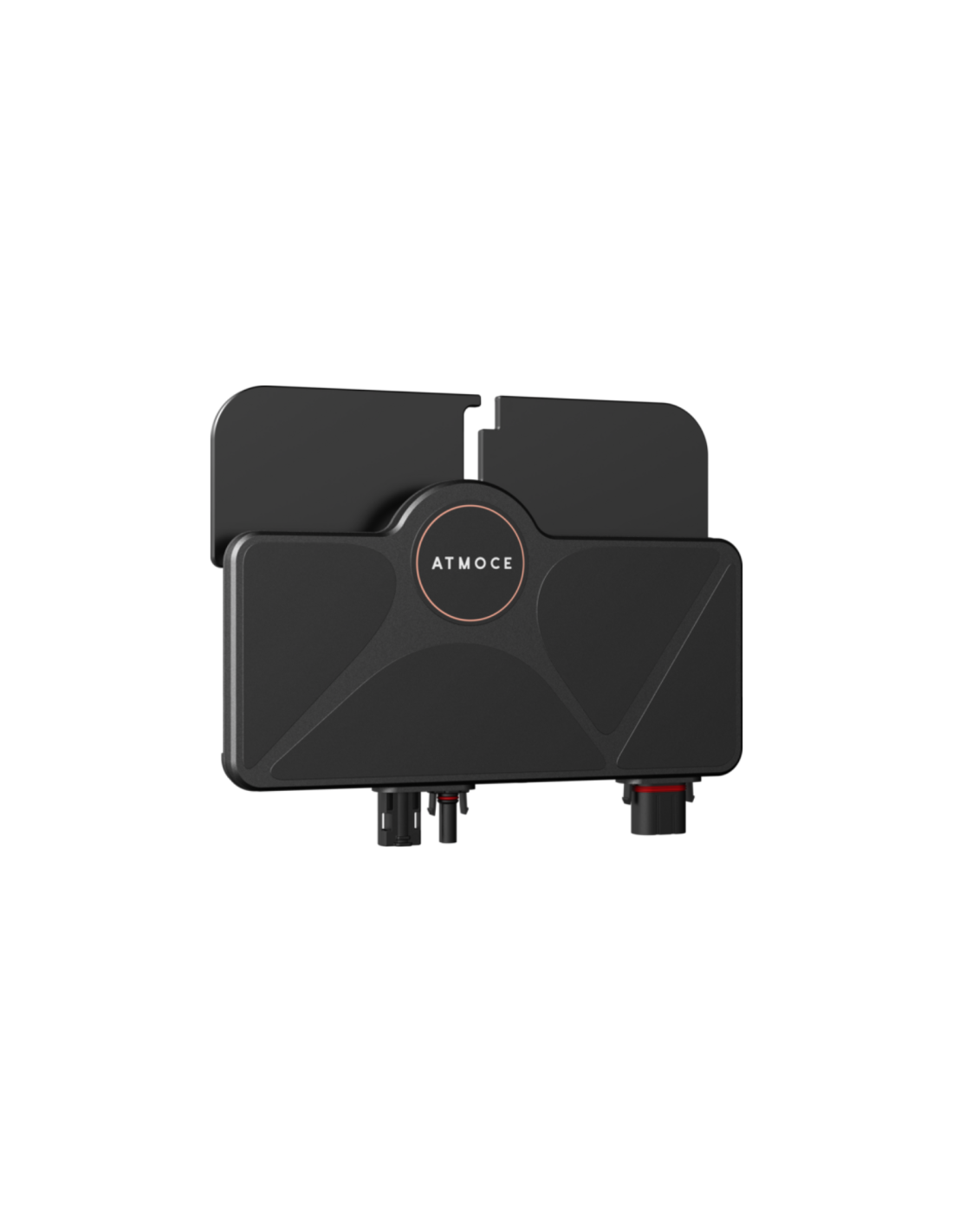

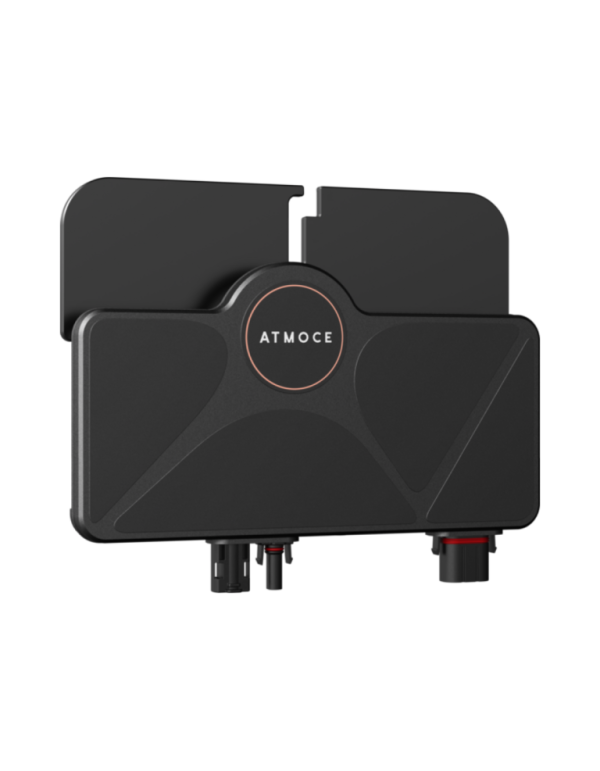

Microinverter Atmoce MI-600 700w

Benefits microinverter Atmoce MI-600

The microinverter Atmoce MI-600 It is positioned as one of the most efficient options in the market within the category of microinverters Thanks to its management and optimization at the module level. Unlike centralized systems, where a shadow or dirt in a single panel can penalize the performance of the entire chain, the MI-600 allows Each panel works independently, Maximizing the actual energy production of the installation.

Maximum efficiency and long-term reliability

With a Maximum efficiency of 97.4% and one MPPT efficiency of 99.9%, the MI-600 Ensures practically optimal energy conversion in any irradiance condition. Your Input voltage range from 16 to 60V and his Start voltage of only 22V They allow the team to begin to generate energy even under conditions of low luminosity, such as dawn or cloudy days, advanceing the start of daily production with respect to other market solutions.

In terms of reliability, Atmoce back MI-600 with a Product guarantee of 25 years, a figure that equals the usual life of the solar Modern and drastically reduces maintenance and substitution costs throughout the life of the installation. Its light plastic housing (1.3 kg) with protection Ip67 and insulation class Class II It guarantees superior resistance against moisture, dust and prolonged exposure to the weather.

Reinforced security without ACCI

The MI-600 Eliminates by design the electric arc in continuous current (No DC ARCand has a function of Quick shutdown (Rapid Shutdown), which suppresses the need to install additional AFCI devices in the electrical panel. This feature simplifies assembly, reduces the total cost of the system and increases safety against other architectures-based inverters networking Traditional that does require such protection.

A single SKU for single-phase and three-phase installations

One of the highlights of the MI-600 It is your ability to adapt to Singhafish and three-phase installations with a single product reference, which greatly simplifies stock logistics for professional installers and distributors. This flexibility, together with its function Grid Forming, convert to MI-600 in an ideal component for projects seeking a robust and prepared distributed generation architecture for future extensions, such as the incorporation of lithium batteries o Additional accumulation systems.

PLC communication and installation monitoring

The MI-600 Incorporates communication through PLC (Power Line Communication), transmitting the production data through the electrical wiring itself without the need for additional data wiring. This greatly facilitates individual monitoring of each photovoltaic module, allowing early detection of performance, localized dirt or possible failures in concrete, something especially valuable in facilities on solar Of great surface where physical access for review is more complex.

If you want to deepen how to properly design an installation with microinverters, in the Blog Tienda Solar You will find technical and comparison guides prepared by our team of experts to help you make the best decision.

Detailed technical characteristics

Input parameters (DC)

• Maximum power of compatible FV modules: 700 W
• Input voltage range (MIN / MAX): 16 to 60 V
• Range of power tracking voltage (MPPT): 39 to 55 V
• Nominal input voltage: 42 V
• Starting voltage: 22 V
• Maximum continuous entry current: 16 a
• Maximum current of input short circuit: 20 a
• Overvoltage class DC port: II
• Return current Puerto DC: 0
• Array FV Configuration: 1 x 1, without ground connection

Departure parameters (AC)

• Nominal voltage: 220/230 V
• Voltage range: 184 to 276 V
• Nominal output power: 600 W
• Maximum apparent power: 600 VA
• Nominal output current: 2.61 a @ 230v / 2.73 a @ 220V
• Maximum output current: 2,74 A @ 230V / 2.86 A @ 220V
• Nominal frequency: 50/60 Hz
• Extended frequency range: 45 to 65 Hz
• Max. microinverters by circuit of 20a: 6 units
• Max. microinverters by circuit of 25a: 8 units
• Night mode consumption: 0 MW
• Overvoltage class AC Puerto: III
• Power factor: > 0,99 (Adjustable 0.8 in advance to 0.8 late)
• Total harmonic distortion (THDI):
• AC overventions protection: Type II

Efficiency parameters

• Maximum efficiency: 97,4%
• European efficiency (EU): 97,0%
• MPPT efficiency: 99,9%

Mechanical and environmental parameters

• Dimensions (without support): 247.2 x 180 x 38.5 mm
• Weight (without support): 1.3 kg
• Refrigeration: Natural convection
• Suitable for wet locations: Yes
• Degree of contamination: III
• Topology: Isolated
• Case protection class: Class II, double insulation
• Environmental category: Exterior - IP67
• Maximum altitude: 3,000 m
• Noise:
• Range of room temperature: -40 ° C to 65 ° C
• Storage temperature range: -40 ° C to 85 ° C
• Relative moisture range: 4% to 100%, with condensation
• DC connector: Stäubli MC4, 1 pair
• AC connector: Matt-02502-a, 1 pair (requires MW-Cable Cables)

Communication and conformity

• Communication: PLC
• Indicator: 1 x LED
• Security: IEC 62109-1 / -2
• EMC: IEC 61000-6-1 / -2 / 3 / -4, EN 62920
• Network regulations: VDE 0124, VDE 4105, UTE 0126, EN 50549, EN 50530
• Product guarantee: 25 years

Frequently Asked Questions (FAQ)

1. How many I can connect to a microinverter Atmoce MI-600? The MI-600 is designed with a Array 1x1 configuration, that is, each microinverter it connects to A single solar panel up 700w of power. This allows a completely independent management of each module within the installation.

2. Do I need to install an additional AFCI device with this microinverter? No. The MI-600 Includes protection Without RCD (No DC ARC) and function of quick off, so No additional AFCI, simplifying the installation against other architectures based on inverters solar conventional.

3. Is the MI-600 Both for single-phase and three-phase installations? Yes. It's about A single SKU Compatible with facilities 1 phase and 3 phases, which facilitates the stock and selection of the equipment without the need for different references according to the type of network.

4. What guarantee does the manufacturer offer Atmoce for him MI-600? The microinverter MI-600 has a Product guarantee of 25 years, in line with the expected life of full photovoltaic installation.

5. How are the production data of the microinverter? Through PLC Communication (Power Line Communication), which sends the performance information through the electrical wiring itself, without the need for additional data wiring.

6. Can I combine the MI-600 With batteries or expand the installation in the future? Yes. Thanks to its function Grid Forming and to its modular architecture, the MI-600 It is compatible with future extensions, including the incorporation of lithium batteries. You can check more recommendations of sizing in the Blog Tienda Solar or visit the home Tienda Solar To see the complete catalog.
