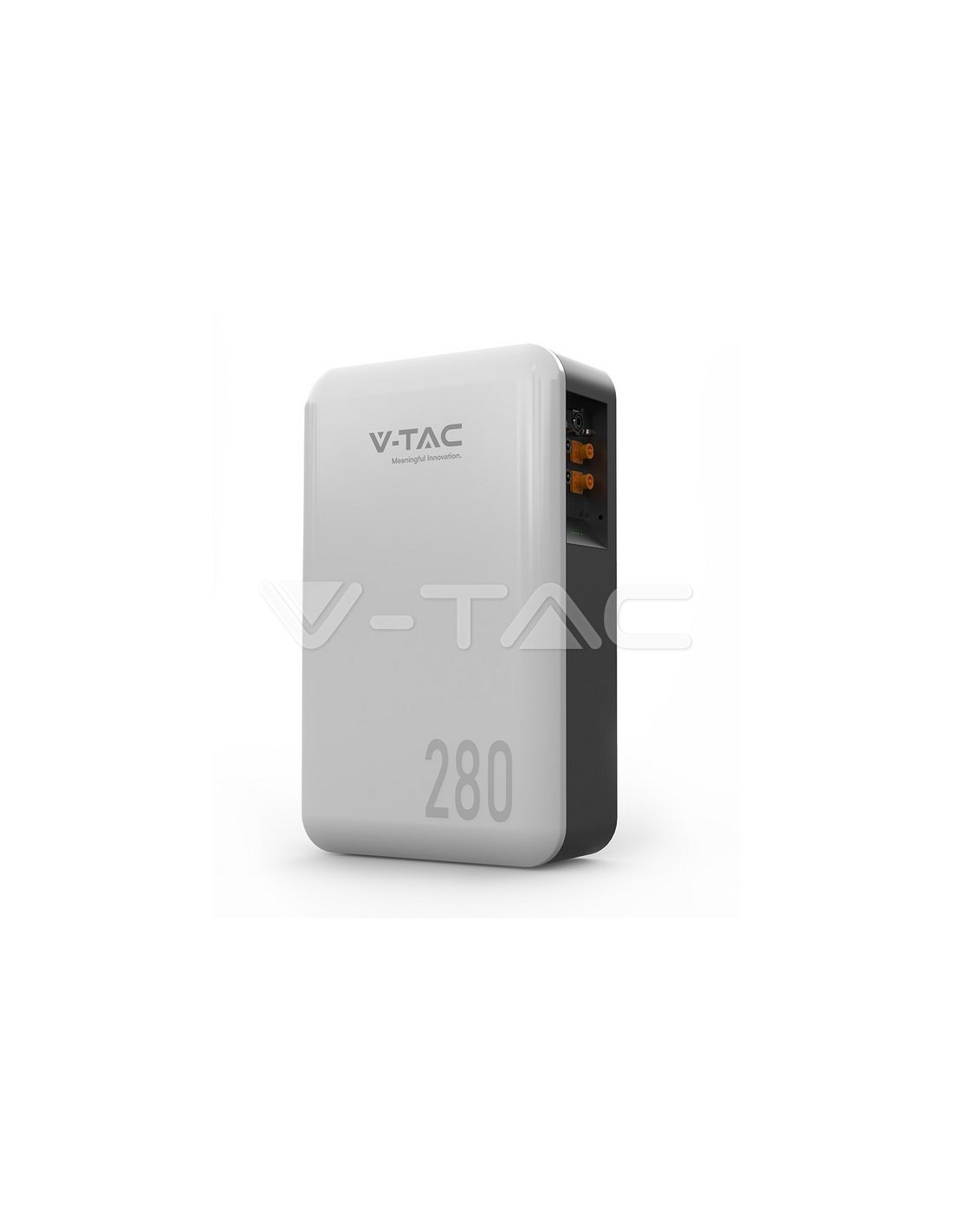

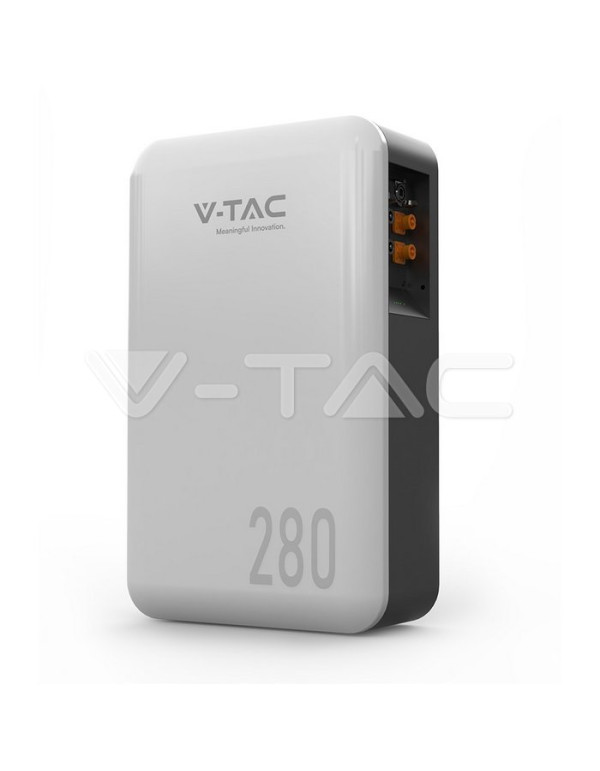

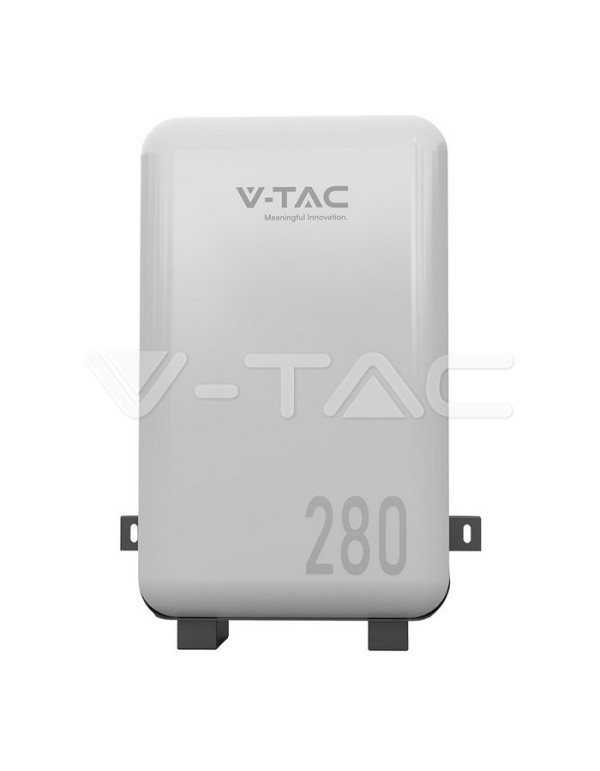

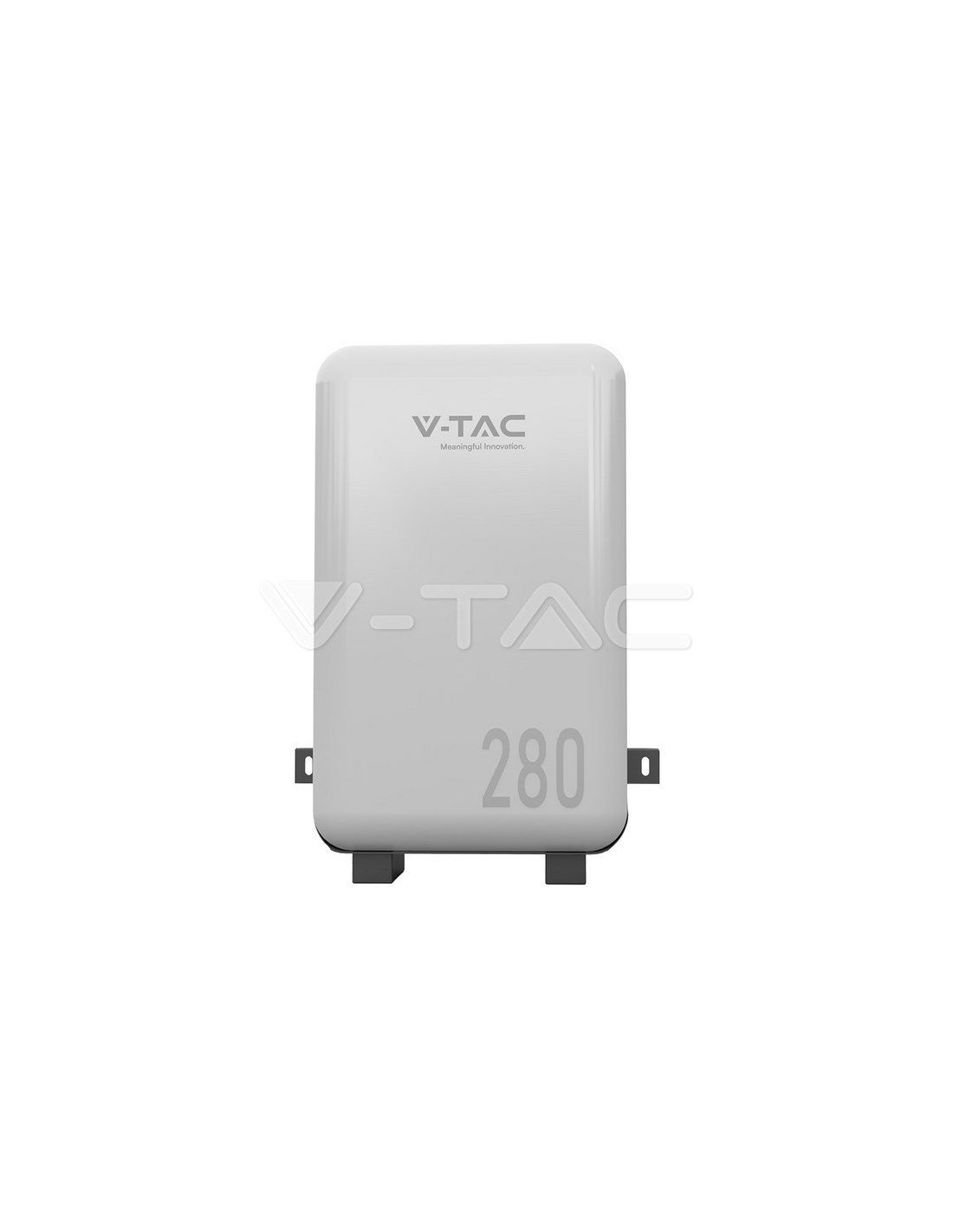

Lithium Battery V-TAC 14.33KWh VE51280W

Benefits of Lithium Battery V-TAC VE51280W

Is lithium battery It stands out by combining a high capacity (14,33kwh) with a high load and unloading stream (150a continuous), which makes it especially suitable for residential facilities with high consumption or specific peaks, surpassing many lithium batteries of similar capacity of the market.

The LFP Cells of Grade A, managed by a Smart BMS With protection against overcurrent, they offer a high level of safety, backed by a Life cycle greater than 6000 cycles 80% of DOD and one Design lifespan of more than 15 years. The possibility of connecting up to 4 units in parallel It allows to scale the storage capacity well above the 14,33kwh of a single unit, adapting to higher consumption facilities or planned to grow over time, perfectly complementing inverters hybrid of greater power.

The Integrated mobile application To monitor and control the capacity of the battery, it facilitates the monitoring of the system without the need for additional equipment, while the 10-year warranty offers a unusual long-term tranquility in front of others AGM batteries or Gel batteries, Technologies with a considerably limited useful life and benefits.

Versatile installation: Wall or floor

Dimensions 500 x 800 x 250mm and a compact design, the ve51280W admits so much Installation on wall as on floor, adapting to different technical spaces such as garages, storage or dedicated rooms. Its protection Ip65 and a rank of operating temperature up -20 ° C in download, allow use in a wide variety of climates and locations, provided that the installation conditions recommended by the manufacturer are respected.

Detailed technical characteristics

GENERAL DATA:

• Nominal voltage: 51.2Vdc
• Voltage range: 43.2v ~ 57.6v
• Nominal capacity: 14,33kwh
• Nominal load voltage (@ 25 ° C): 56.4Vdc
• Maximum continuous load current: 150a
• Discharge cut voltage (@ 25 ° C): 43.2Vdc
• Continuous maximum discharge current: 150a
• Communication: CAN / RS-485
• Maximum parallel units: 4
• Working temperature in load: 0 ° C ~ 55 ° C
• Working temperature in download: -20 ° C ~ 60 ° C
• Storage temperature: -20 ° C ~ 60 ° C
• Degree of protection: Ip65
• Refrigeration: natural
• Installation: on wall or in floor
• Relative humidity: 5% ~ 95%RH, without condensation
• Maximum altitude: 2000m
• Useful life design: More than 15 years (at 25 ° C)
• Lifecycle: More than 6000 cycles, 80% DOD at 25 ° C
• Design regulations: UL1642, IEC62619, EN61000, UN38.3

Listing data:

• Model: Ve51280w
• SKU code: 11525
• EAN code: 3800157693592

Packing:

• Units by pallet: 4 Boxes / pallet
• Product size: 500 (AN) x 800 (AL) x 250 (PR) mm

Frequently Asked Questions (FAQ)

1. What guarantee does this lithium battery have?
The manufacturer offers 10 years warranty For this specific model, backed by a Life cycle greater than 6000 cycles At 80% of DOD.

2. Can I install it both on the wall and on the ground?
Yes, the ve51280W admits Both installation methods, adapting to different technical spaces according to the needs of each project.

3. How many units can I connect in parallel?
The system supports a Maximum of 4 units in parallel, allowing climbing the storage capacity well above the 14,33kWh of a single unit.

4. Is it suitable for installation abroad?
Has IP65 protection, suitable for outdoor, although we always recommend consulting the specific installation conditions in the manufacturer's manual according to climate and location.

5. How can I monitor the status of the battery?
Through his Integrated mobile application, which allows you to consult and track the capacity of the battery in real time. Consult more technical content in the Blog Tienda Solar.
