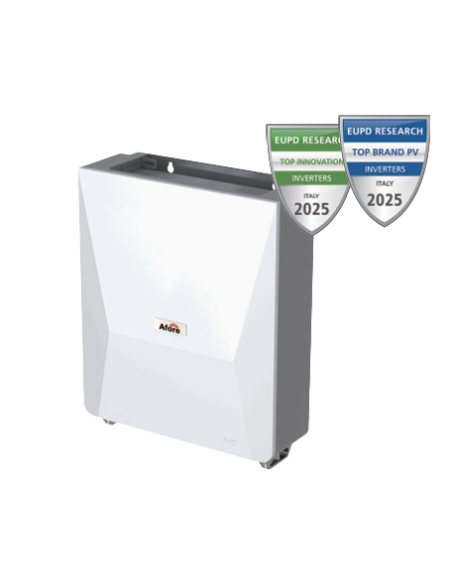

Lithium battery Afore 5.12kwh ATOM-Wb512100

Benefits of lithium battery Afore ATOM Wb-512100

In a market where many lithium batteries They offer similar specifications about paper, this Lithium Battery of Chemistry LifePO4 It differs by the balance between mechanical robustness and advanced electronic management. Your Smart BMS It is not limited to protecting the battery against overvoltage, overcurrent and overtholly: it incorporates a active balance That distributes the load between cells dynamically, avoiding premature aging of the weaker pack units, a usual problem in active-balancing systems.

The Life cycle of up to 6000 cycles to 0.5c next to Design life of 10 years They convert this lithium battery into a particularly interesting long-term investment for self-consumption facilities that seek to maximize the return of photovoltaic investment. The Depth of discharge (DOD) of 80% It allows to take advantage of a very significant part of the stored energy without compromising the longevity of the cells, one of the safest and most stable chemicals currently available for residential storage.

At the construction level, the housing manufactured in Spcc with Degree of protection IP65 and corrosion resistance Class C4 enables its installation both indoors and outdoors, something that not all Gel batteries or AGM batteries Conventional can offer with the same reliability against moisture and aggressive environments. In addition, its compatibility with inverters Afore and its communication via Can / rs485 facilitate integration into existing hybrid systems, perfectly complementing the inverters hybrid They form the core of any self-consumption installation with storage.

Flexible design for residential self-consumption

One of the great advantages of this lithium battery of the series ATOM WB is your installation versatility: Mounting on wall or floor, with compact dimensions of 480x165x550mm and a weight of 56kg They facilitate their handling even in reduced spaces such as garages, storage or technical rooms. This flexibility makes it an ideal solution for both new photovoltaic installations and for the expansion of existing systems that incorporate solar and seek to add storage capacity without complex works.

The possibility of connecting Up to 15 units in parallel It allows you to scale the storage capacity from the 5,12kWh of a single module to high-capacity solutions for housing with high energy consumption or small commercial facilities, adapting to the future growth of the user's needs without the need to replace the entire system.

Intelligent monitoring and remote updates

The battery incorporates Real-time monitoring through mobile application, which allows the user to monitor the load state, temperature and overall performance of the system from anywhere. In addition, Remote update capacity of the firmware It guarantees that the equipment remains optimized with the last manufacturer's improvements without the need for face-to-face technical intervention, reducing long-term maintenance costs.

Detailed technical characteristics

Performance specifications:

• Type of battery: Lifepo4
• Nominal capacity: 100ah
• Energy: 5120Wh (5,12KWh)
• Nominal voltage: 51.2v
• Operating voltage range: 44.8V ~ 57.6V
• Standard load current: 50a
• Maximum load current: 100a
• Standard discharge current: 50a
• Maximum continuous discharge current: 100a
• Load voltage limit: 57.6v
• Recommended discharge depth (DOD): 80%
• Lifecycle: 6000 cycles to 0.5c
• Useful life design: 10 years

General Specifications:

• Communication: CAN / RS485
• Efficiency: 96%
• Maximum of units in parallel: ≤15 units
• Discharge temperature range: -20 ° C ~ 60 ° C
• Charging temperature range: 0 ° C ~ 55 ° C
• Storage temperature range: 0 ° C ~ 35 ° C
• Type of terminal: Fast connector
• Case material: Spcc
• Degree of protection: Ip65
• Degree of protection against corrosion: C4
• Auxiliary heating function: Optional
• Dimensions (an x pr x al): 480 x 165 x 550mm
• Net / crude weight: 56kg
• Certifications: CE / IEC62619 / CEI-021 / UN38.3 / MSDS
• Compatibility inverter: Afore

Frequently Asked Questions (FAQ)

1. With what inverters This lithium battery is compatible Afore ATOM Wb-512100?
This lithium battery is designed to work natively with inverters Afore, communicating through protocol Can / rs485 For integrated and efficient energy management of the system. If you need to equip your installation from scratch, you can check the full range of Inverters solar Available in our store.

2. How many batteries ATOM WB-512100 Can I connect in parallel?
The system supports a Maximum of 15 units in parallel, which allows you to scale the storage capacity well above 5,12kWh of a single module, adapting to higher consumption residential facilities.

3. Can it be installed on the floor or alone on the wall?
This lithium battery admits Both installation options, both on the wall and in soil, thanks to its versatile design and its Dimensions of 480x165x550mm, adapting to different technical spaces.

4. What do the life cycle of 6000 cycles and the DOD of 80% mean?
The Lifecycle of 6000 cycles to 0.5c Indicates the number of fillers and complete downloads that the lithium battery can support maintaining optimal performance, while the Depth of discharge (DOD) of 80% It is the percentage of stored energy that can be used safely in each cycle without damaging the cells.

5. Is it suitable for outdoor installation?
Yes, thanks to your IP65 protection and its corrosion resistance Class C4, this lithium battery can be installed both indoors and abroad, being a robust option against moisture and demanding environmental conditions. You can check more installation technical guides in the Blog Tienda Solar, where you will find tips, purchase and specialized content guides developed by experts.

To complete your self-consumption installation, in Tienda Solar You will find Solar kits, solar and microinverters To complete your photovoltaic system with total guarantee.
