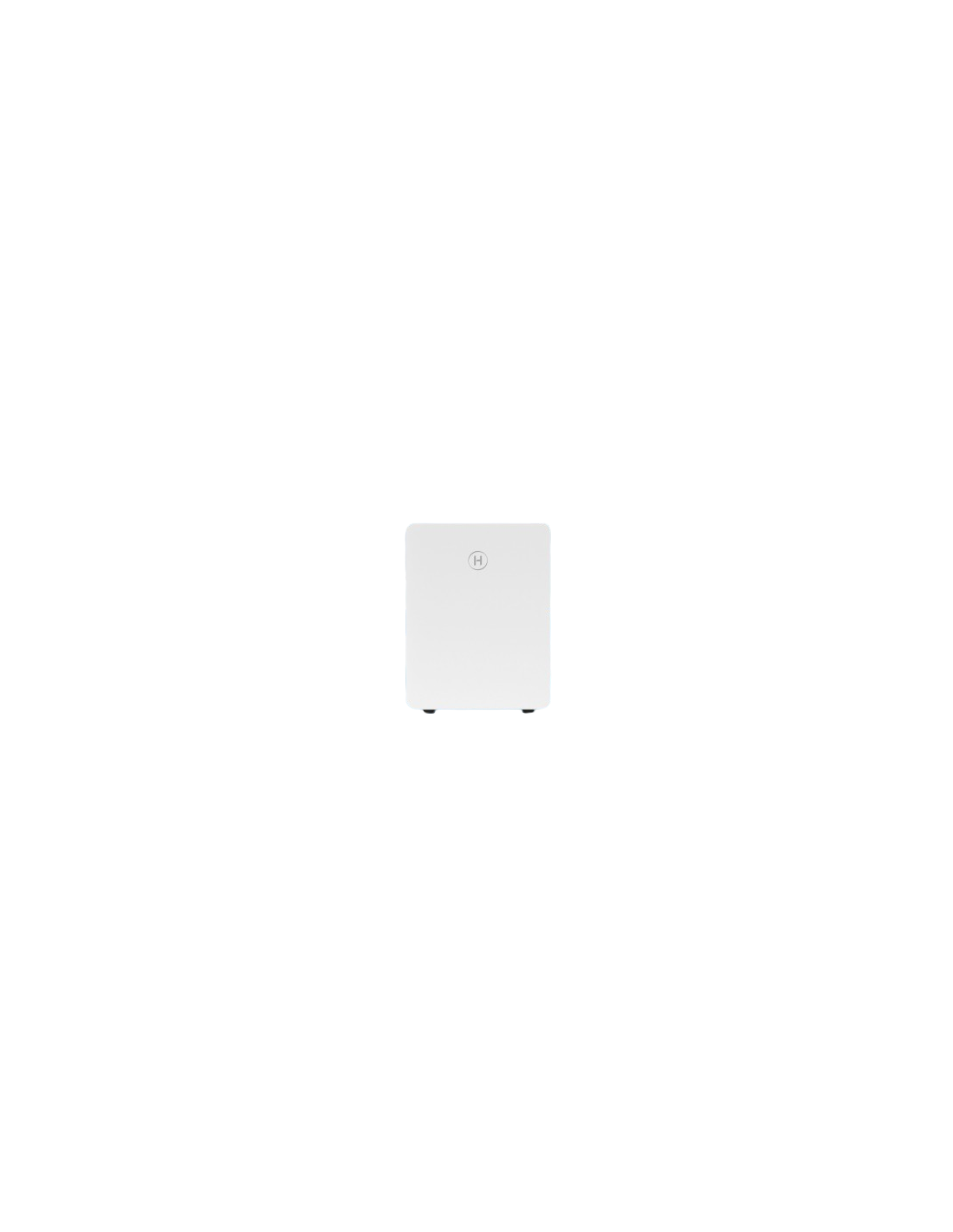

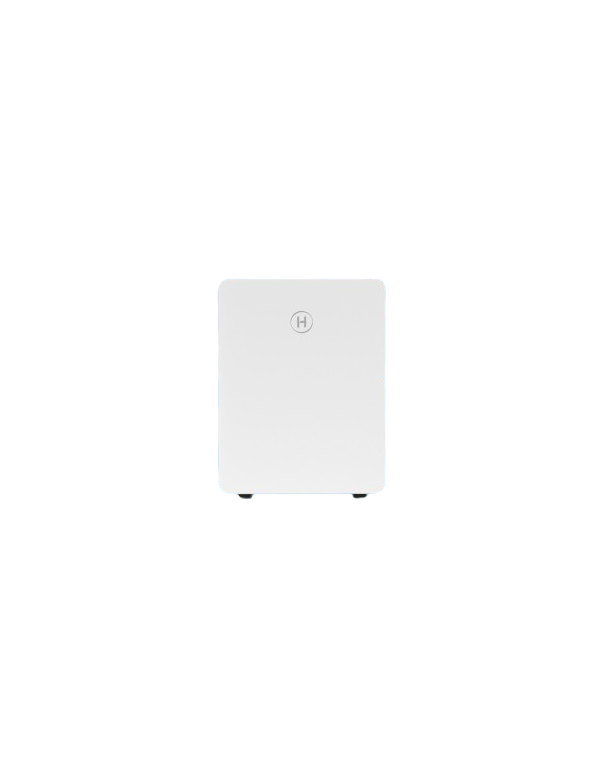

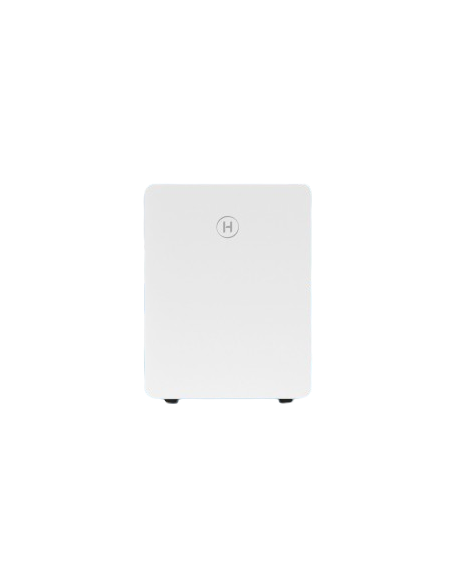

Lithium battery Hoymiles 16,08KWh LB-16D-G2 Low Voltage

Benefits of lithium battery Hoymiles Lbs-16d-g2

The Lbs-16d-g2 belongs to the category of lithium batteries With low voltage high capacity, designed for housing with a high electricity consumption that seek to cover your demand with the least possible number of units. With 16,08 kWh on a single battery, it allows dimensioning complete residential facilities without the need to combine multiple smaller equipment, simplifying both the installation and the wiring.

Their LIFEPO4 cells of 314 ah offer a Maximum load power / download of 8.04 kW, with a continuous stream of 157a and peaks up 200A for 10 seconds, which makes it suitable for covering high demand peaks at home without the need to oversize the system. Your 90% recommended download depth maximizes the useful energy available in each cycle, while its Smart BMS It incorporates multiple protection functions to ensure long-term safe operation.

Thanks to his modular design, the capacity can be climbed from the 16,08 KWh of Single Unit up to a maximum of 241 kwh combining 15 parallel batteries, an option designed for higher-scale facilities or housing with forestenance of increased their electricity consumption in the future (for example, with the incorporation of an electric vehicle or additional air conditioning).

Compatibility with Hybrid Inverters

The LB-16D-G2 works in a Voltage range of 42 to 57.6V, so it is compatible with inverters hybrid who admit lithium batteries in this range by communication Can. Its high loading / unloading power (8,04 kW) It makes it especially suitable to be combined with inverters Hybrids of greater power, capable of taking advantage of all the current capacity of this battery.

Instalación en Interior y Seguridad

Unlike other range batteries Hoymiles prepared for exterior, the LB-16D-G2 is designed specifically for indoors, with assembly in the floor (It does not have a mural mounting option) and a degree of protection Ip20, own domestic equipment for use indoors. Its loading temperature range 0 ° C to + 55 ° C and download of -20 ° C A + 55 ° C It covers most of usual conditions in a technical room or garage. In addition, it incorporates optionally (and always as a whole) the functions of heating and automatic switch DC, which can not be hired separately.

Detailed technical characteristics

System data:

• Type of battery: Lifepo4
• Nominal capacity: 314 ah
• Total energy: 16,08 kWh
• Nominal voltage: 51.2 V
• Voltage range: 42 to 57.6 V
• Nominal loading / unloading current: 62.8 / 157 a
• Maximum continuous current (at 25 ° C): At
• Current loading / unloading: 200 A (10 s)
• Maximum loading / unloading power: 8,04 kW
• Communication: Can
• Recommended discharge depth (DOD): 90%
• Maximum number in parallel: 15 units (up to 241 kWh)

Protection:

• Protection against overvoltage and subtension: Integrated
• Protection against overcurrent: Integrated
• Protection against overtemperature and sub-streak: Integrated
• Heating: Optional (Only available along with the DC switch)
• DC automatic switch: Optional (Only available along with heating)

General information:

• Dimensions (an × prof): 500 × 880 × 240 mm
• Weight: 115 kg
• Installation environment: Interior
• Assembly: Floor
• Charging temperature: 0 ° C to + 55 ° C
• Discharge temperature: -20 ° C A + 55 ° C
• Degree of protection: Ip20
• Refrigeration: Natural convection
• Maximum altitude: ≤2,000 m
• Useful life (25 ° C, 0.2c): 6,000 cycles (80% DOD)
• Certification: IEC 62619, A 38.3, CE-EMC, CB
• Warranty: 5 years

Frequently Asked Questions (FAQ)

1. Can I install the LB-16D-G2 on the outside?

No. Unlike other batteries Hoymiles Prepared for interior and exterior, the LB-16D-G2 has a degree of protection Ip20 and is specifically designed for indoors, on soil (garage, technical room or similar).

2. How many LB-16D-G2 batteries can I install in parallel?

Until 15 units, reaching a total capacity of 241 kwh, which allows you to scale the installation to cover high electrical consumption or future growth forecasts.

3. What power of hybrid Inverter Do I need to take advantage of this battery?

Since it offers a Maximum load power / download of 8.04 kW and a continuous current of up 157a, it is recommended to combine it with inverters hybrid of medium-high power compatible with its voltage range of 42 to 57.6V, to take advantage of all its performance.

4. Can I hire only the heating function without the DC switch?

No. According to the manufacturer's technical sheet, the heating and the automatic switch DC They are offered only as a combined option; It is not possible to hire a function without the other.

5. How many years of useful life does this battery have?

Their cells Lifepo4 they are certified for 6,000 cycles to 80% depth of discharge (DOD), and has a manufacturer warranty of 5 years.

6. What happens in cold climates with this battery?

Your discharge temperature range supports -20 ° C., while the standard load is limited to 0 ° C. at least; To load at lower temperatures it is necessary to hire the option of heating, Available only together with the DC automatic switch.
