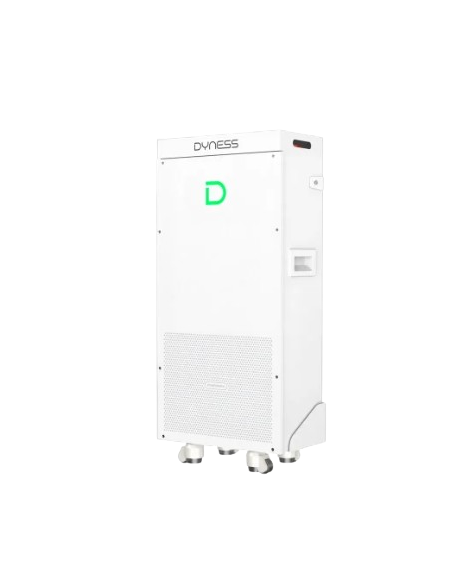

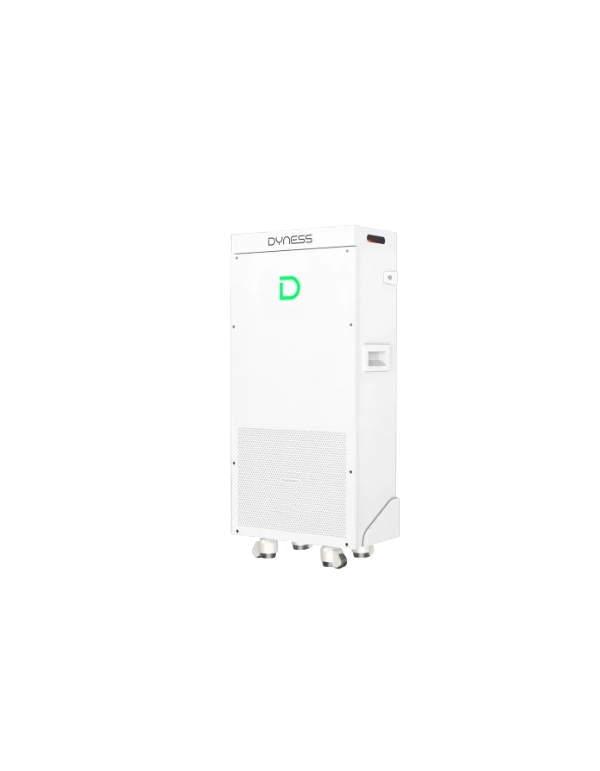

Lithium battery Dyness PowerBrick plus 16kwh 48V 51.2V

Dyness PowerBrick Plus 16.07kwh: 314Ah Premium Cells, Automatic Extinction in 5S and AutoCalentation

Ensure a total resilience against the cuts of light and optimize the use of nightvoltaic surpluses demand massive, reliable and compact accumulation solutions. The modular cabinet Dyness 16kwh PowerBrick Plus it is positioned as the absolute reference in the low voltage market (48V nominal). Designed specifically for demanding residential and commercial environments, this device brings together in a single structure on wheels the control electronics and a powerful chemical bank capable of supplying multiple simultaneous loads of great power in the house.

New Generation LFP Cells, High Current and Anti-Fire Safety

The technical core of the PowerBrick Plus breaks with the common standards when using lFP Monocelded Cells (Lithium Ferrophosphate) of 314Ah High Energy Density. This allows you to concentrate more energy usable in less physical space, minimizing internal interconnections and reducing critical failures. The module is able to supply and absorb a current loading and continuous discharge of up to 200A, delivering maximum power peaks up 10.24 kW sustained. To govern these energy flows with maximum efficiency and ensure uninterrupted supply before blackouts, this accumulator is connected natively with our advanced selection of inverters hybrid of low voltage.

Indoor and outdoor security has been reinforced priority in this model. Dyness has integrated a revolutionary intelligent Fire Extinguishing System Integrated which is able to monitor the cells the cells, detecting any anomalous ignition principle and stopping the risk in a record time of only 5 seconds. If you are planning the design of your energy space and want to compare different architectures or expand the capacity of the system, you can examine all our alternatives available in the general section of batteries of stationary lithium.

Giant scalability in parallel and optional self-holding

The versatility of expansion of the PowerBrick Plus series has no rival in its category, since the system admits the connection of up to 50 identical units in parallel, which allows climbing the total capacity from the basic 16.0 kWh to an industrialized storage of 803 kWh. Thanks to its optional function of automatic AutoCalentation (Self-Heating), the module conditions its cells to be able to load without problems in severe winter climates up -20 ° C. It has a mobile chassis with wheels and isolation IP65 high climatic resistance. If you are going to complement the installation by installing solar in your roof To recharge this accumulator, we suggest you secure your plates firmly using our structures for of anodized structural aluminum.

Technical specifications (model Dyness POWERBRICK PLUS 16KWH):

Performance parameters and electrical capacity:

• Nominal battery power: 16.07 kwh

• Real usable energy: 15.27 kwh

• Nominal cell capacity: 314 ah

• Nominal system voltage: 51.2 V

• Operating voltage range: 44.8 V - 57.6 V

• Power loading / recommended download: 7.16 KW (140A)

• Charging power / continuous maximum discharge: 10.24 KW (200A)

• Peak stream in discharge (25 ° C): 300 A (maximum 2 minutes)

• Depth of discharge of the system (DOD): 95%

Physical, constructive and environment characteristics:

• Chemical cell technology: LFP (Lithium Ferrophosphate / Lifepo4)

• Total dimensions [Ancho/Fondo/Alto]: 435 x 235 x 850 mm

• Net structural weight: 119 kg

• Degree of external isolation: IP65 (installation suitable for interiors and exteriors)

• Communication protocols: Can / RS485 ports

• Guaranteed life cycles: > 8000 full work cycles

• Temperature range in download: -20 ° C A + 55 ° C

• Commercial manufacturer guarantee: 10 years

• Product Certifications: EC, UN38.3, UL1973, IEC62619

Frequently Asked Questions (FAQ)

1. What real advantages do the cells of 314Ah bring in front of old models? The advanced monocrystalline cells of 314ah of Dyness multiply the amount of chemical energy that can be stored in a single solid block. By drastically reducing the number of interconnected small cells that required a classic module, the 16kWh battery decreases internal resistance, improves thermal dissipation and reduces BMS balancing errors, Achieving a lifespan superior to the 8000 cycles.
2. How does the integrated system of automatic fire extinction work? PowerBrick plus cabinet equips at the factory a smart extinction system that detects and extinguishes fire within 5 seconds in view of any extreme critical heating or internal electric arc. By acting autonomously and locally located at the module level, it provides an industrial degree security standard, isolating the anomaly to completely shield the safety of housing.
3. Is this 48V module compatible with facilities that require great simultaneous power? Yes, totally. Unlike other low voltage accumulators limited in current, the PowerBrick Plus supports a maximum Duty Current Loading and Unloading 200A. This translates into a real capacity to deliver up 10.24 kW of pure power continuously to the consumption of housing, allowing the ignition of demanding appliances as heat pumps or induction plates without penalties.
4. What anchoring options and physical installation offers due to your weight? Despite its great energy capacity and its 119 kg, Your handling has been optimized to the maximum. The chassis is provided with a factory-lower wheel set that allows you to move the equipment easily. The design of the PowerBrick Plus supports both the direct support on firm soil as the anchor set to the wall, adapting with total flexibility to the space available in the garage or technical room.
