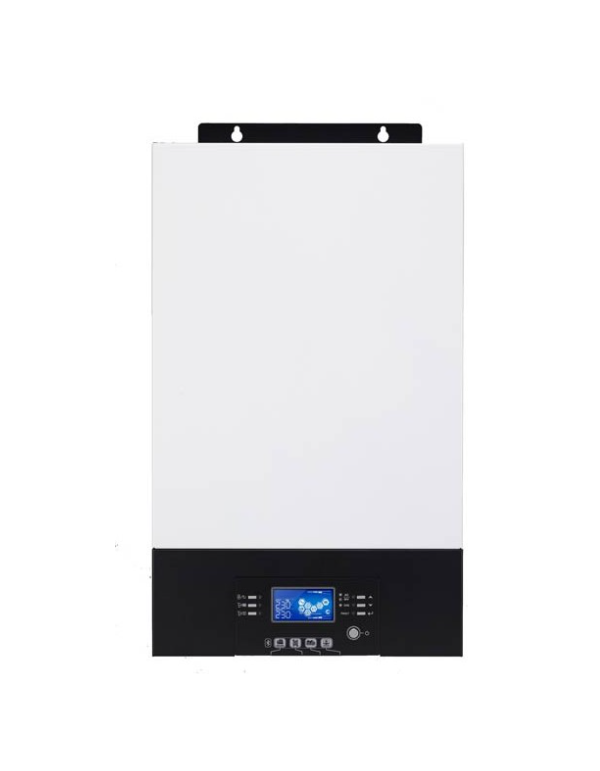

axpert king 5000W

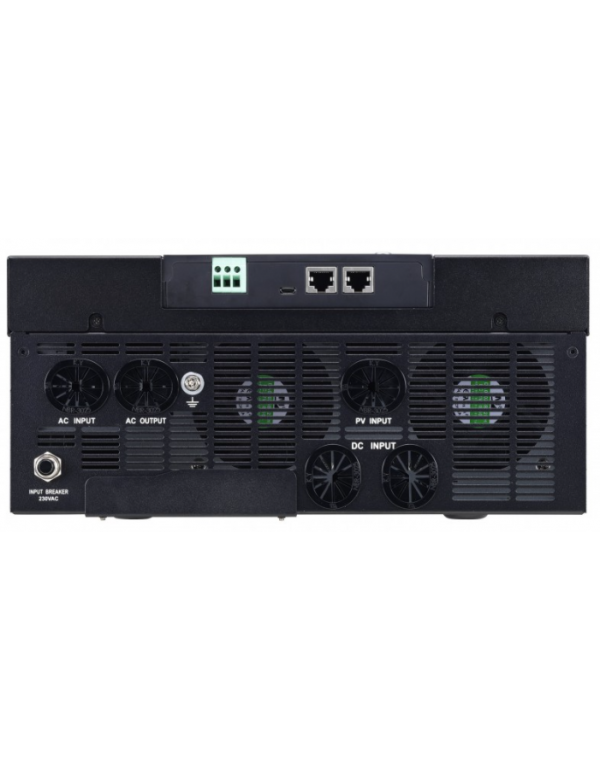

bottom view axpert king 5000W

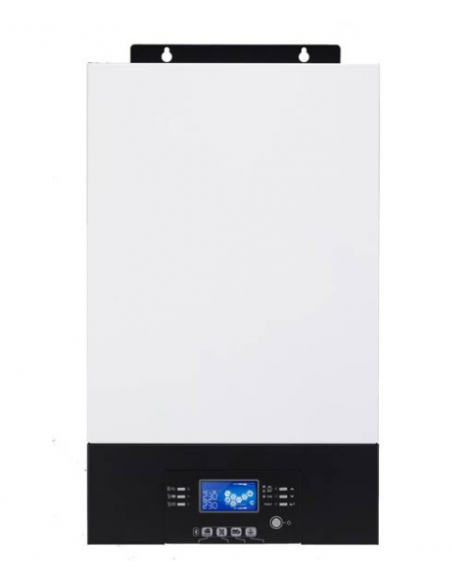

axpert king 5000W
bottom view axpert king 5000W

Inverter Solar charger Axpert King 5000-48V

AXVKNG5K48
€544.50
Tax included

Inverter Solar charger for isolated 5000W to 48V insulated installations to be able to connect the corresponding voltage solar battery bench (48V). The Axpert King 5K has a single MPPT (maximum power tracking point) and provides a yield of 93.0%. The maximum solar regulator entry current is 80A

The Axpert King of 5000W A 48V integrates the MPPT loading controller with removable screen and the possibility of connecting 9 inverters Solar in parallel. Automatic generator equipment start. Continuous voltage from 60 to 115VDC and up to 4000W of input solar panel.



This inverter 5KW Axpert King Solar Charger (KVA) offers a 2-year product and CE certificate warranty



The inverter Solar Axpert King 5000W-48V as the rest of the family stands out in addition to its price for the following characteristics:

  • - Inverter Isolated pure sine wave wave of great efficiency
  • - MPPT loading regulator integrated in the inverter solar
  • - Wide range of input voltage selection of the inverter Solar (110-280VAC)
  • - Wide range of selection of entry current of the inverter Solar for battery charge up to 140A
  • - Configurable AC / Solar Entrance through the LCD screen
  • - In this case the AXPERT KING 5000-48V does have self-maintenance for diesel generator or hybrid installation
  • - Overvoltage and short circuit protections in the inverter solar
  • - Option for coupling remote control of the inverter charger

The inverter- Axpert King 5000W-48V charger is a very economical option for demanding clients who want to own a reliable and trouble-free product in the operation of its installation.  For any questions, consult with us in [email protected]

Technical characteristics

Model

Axpert King 5000W-48V

Nominal power

5000va / 5000w

Entrance voltage

110-280 VAC

Assigned network frequency / frequency range

50hz / 60hz

Output voltage AC

230VAC +/- 5%

Maximum power peak transient

10000va

Efficiency peak

93%

Waveform

Pure sine

Battery tension

48vdc

Load floating tension

54vdc

Overload protection

66vdc

Maximum power Solar PV

4000wp

MPTT range in operating voltage

60VDC - 115VDC

Maximum tension of circuit open by String

145vdc

Maximum solar current

80a

Maximum AC current

60a

Power (kW)
3 - 5.9
Phase Type
Single phase
Max Current Input (A)
20+
Compatibility list
Dyness BX51100
Dyness Power Box
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
Turbo Energy (Slim)
Inverter Type
Hybrid
