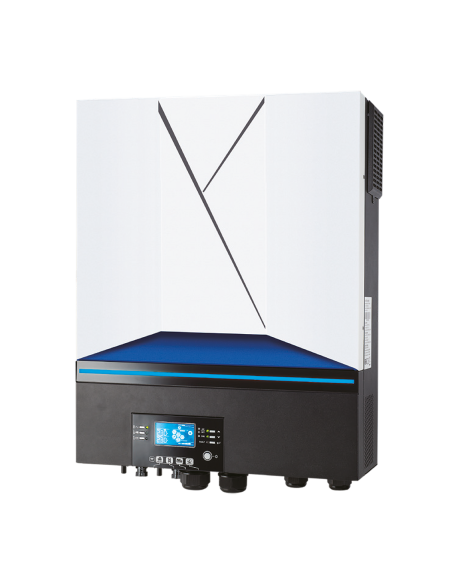

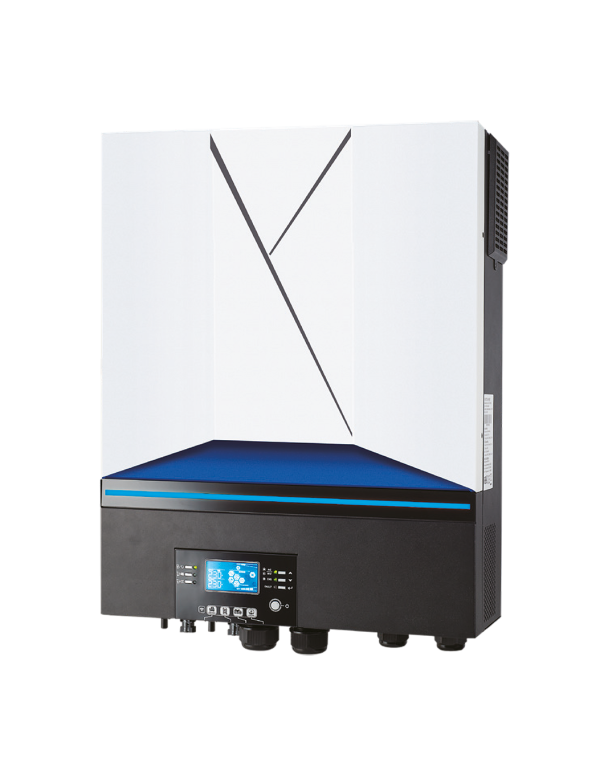

Inverter Axpert Max 7200-48V Solar Charger
Inverter Axpert Max 7200-48V Solar Charger

Inverter Axpert Max 7200-48V Solar Charger

AXMAX72K48
€900.00
Tax included

Book your unit for June!

The inverter Solar Axpert Max 7200W 48V is all in one model (inverter/ Charger / Regulator) of the Voltonic brand. Oriented to demanding uses in isolated installations that need greater power.

Model to work with 48V batteries of any technology. It offers up to 7200W output power and allows you to connect To work hybrid, with an efficiency similar to network connection of inverters solar.

Up to two groups can be connected From 4000W up to a total of 8000W panel power with the additional advantage of working with open circuit voltage up to 500V and a very broad MPPT range of between 90 and 450V.

This inverter 7.2KW Axpert Max Solar Charger (KVA) offers a guarantee of 2 years of product and CE certificate



The Axpert Max can work with a high-voltage photovoltaic field, as well as the inverters network connection simplifies the connection, increases efficiency and reduces high current losses. inverter solar Axpert Max as the rest of the family stands out in addition to its price for the following characteristics:

  • - Integrated WiFi for Mobile Monitoring (there are Android / iOS applications available
  • - Supports USB function on-the-go communication port reserved for BMS (RS485, Can-Bus or RS232)
  • - Replaceable fan design for facilitating maintenance
  • - Independent Battery Design Timer and Prioritization of Configurable EXIT EXIT
  • - Selectable high power load current
  • - Selectable Input Voltage Range for Appliances and Personal Computers
  • - Compatible with the generator electrical network or entrance
  • - Anti-Kit of dust
  • - Optional DC output for DC fan, LED bulb, router, etc.

The inverter- Axpert Max 7200W-48V charger is a very economical option for demanding customers who want to own a reliable and smooth quality product in the operation of its installation.  For any questions, consult with us in [email protected]

Technical characteristics

Model

Axpert Max 7200W-48V

Nominal power

7200va / 7200w

Entrance voltage

230vac

Assigned network frequency / frequency range

50hz / 60hz

Output voltage AC

230VAC +/- 5%

Maximum power peak transient

15000va

Efficiency peak

93%

Waveform

Pure sine

Battery tension

48vdc

Load floating tension

54vdc

Overload protection

66vdc

Maximum power Solar PV

8000WP (2x4000W)

MPTT range in operating voltage

90VDC - 450VDC

Maximum tension of circuit open by String

500vdc

Maximum solar current

80a

Maximum AC current

80a
Power (kW)
6 - 9.9
Phase Type
Single phase
Max Current Input (A)
10-10.99
Compatibility list
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
Turbo Energy (Slim)
