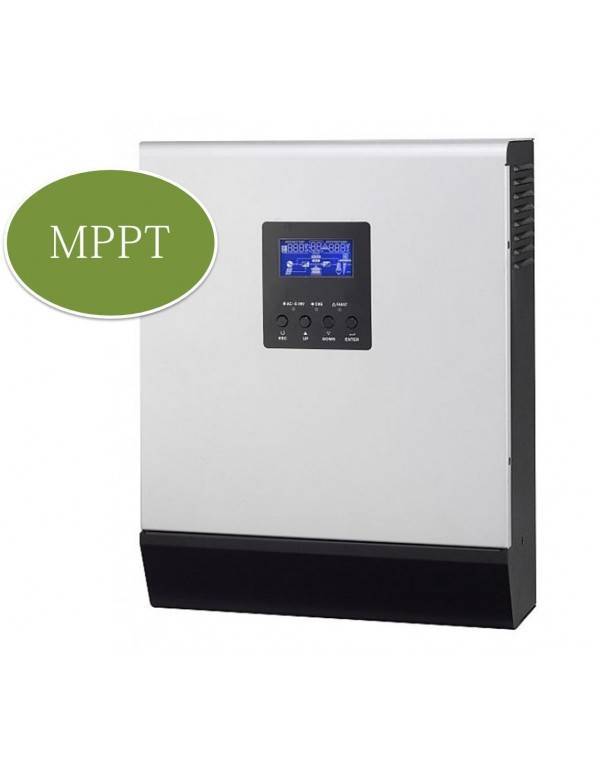

Inverter 24V 2400W HUBER POWER 2424 Loader

Inverter 24V 2400W HUBER POWER 2424 Loader

The inverter Power Plus charger is a pure sine wave multifunction team that combines functions of inverter, Charger and MPPT load regulator in a single unit, which offers uninterrupted power support in a compact size.

The charger is compatible with the power of the generator or with the voltage of the electrical network. Your LCD screen has easy access and can be configured by the user through the multiple options of its buttons, such as the AC / Solar charger priority, battery charge and input voltage for computers and electrical appliances.

Functions:

• Optional remote control panel available
• AutoArranque when recovering CA
• Protection against overload and short circuit
• Smart battery charger designed to optimize performance
• Function cold boot

Features:

• Power: 3000VA / 2400W
• Voltage: 230 VAC
• Selectable voltage range: 170-280 VAC (for PCs) and 90-280 VAC (for appliances)
• Frequency range: 50 Hz / 60 Hz (Sensitive Auto)
• Voltage regulation AC (Batt. Mode): 230VAC ± 5%
• Apparent power: 6000VA
• Efficiency (peak): 90-93%
• Transfer time: 10 ms (for PCS) and 20 ms (for appliances)
• Battery voltage: 24 VDC
• Floating load voltage: 27 VDC
• Protection overloads: 31 VDC
• Maximum power of ARRAY PV: 1500W
• Maximum FV Voltage in Open Circuit: 145 VDC
• MPPT range operating voltage: 30 - 115 VDC
• Maximum solar load current: 60 A
• Maximum load current CA: 30A
• Dimensions deep x wide x high (mm): 140 x 295 x 479
• Weight (KGS): 11.5
• Humidity: 5% to 95% relative humidity (without condensation)
• Operating temperature: 0 ° C to 55 ° C
• Storage temperature: -15 ° C to 60 ° C
