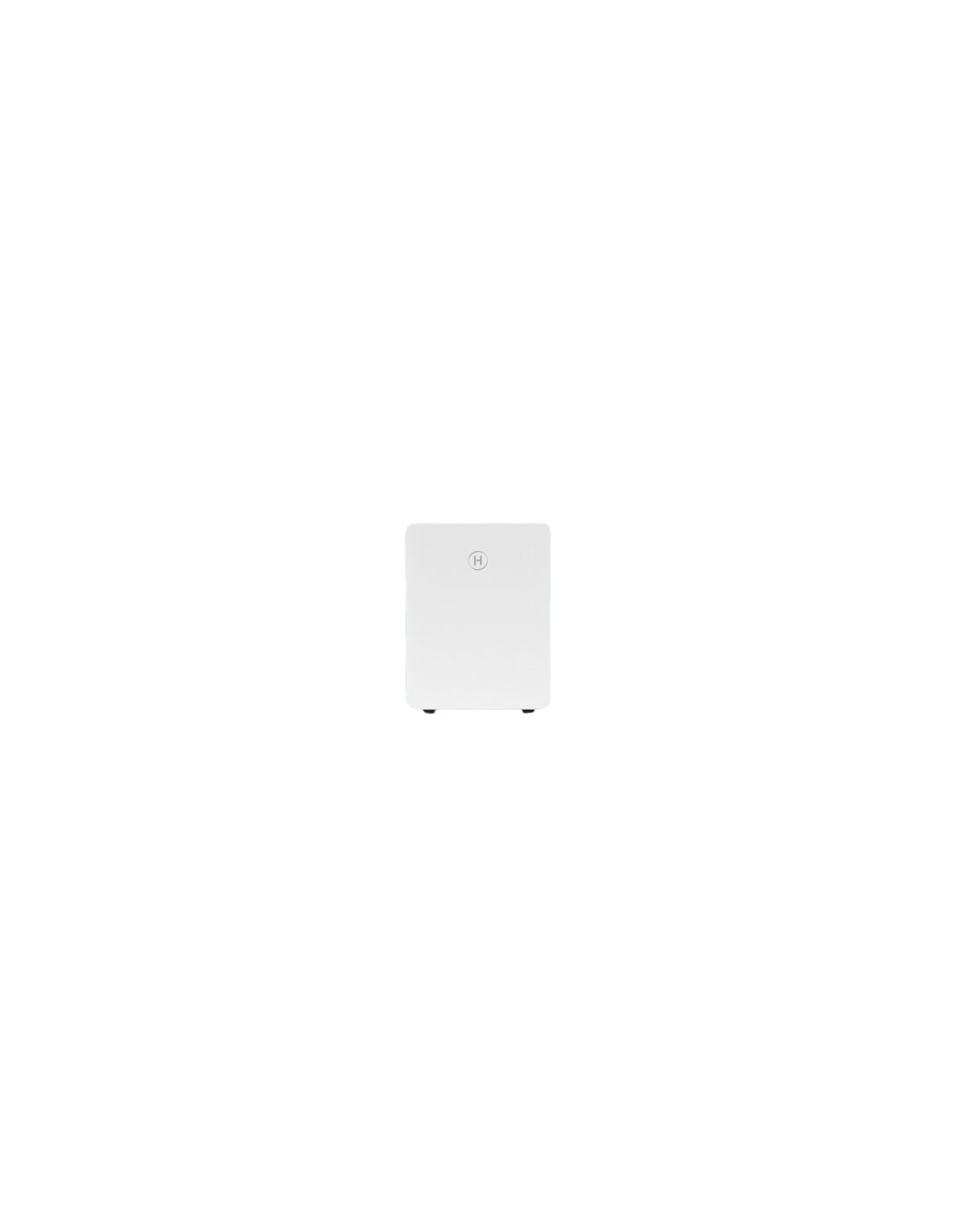

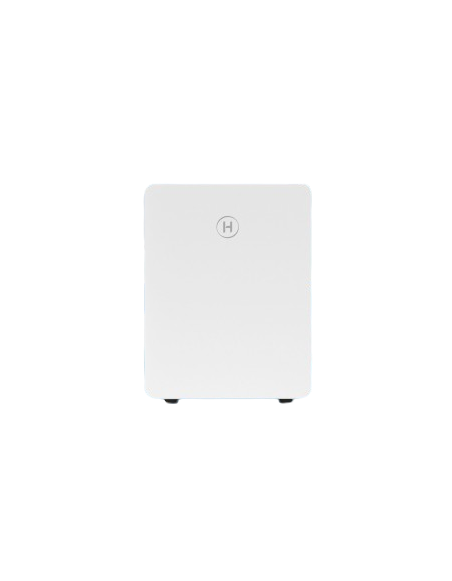

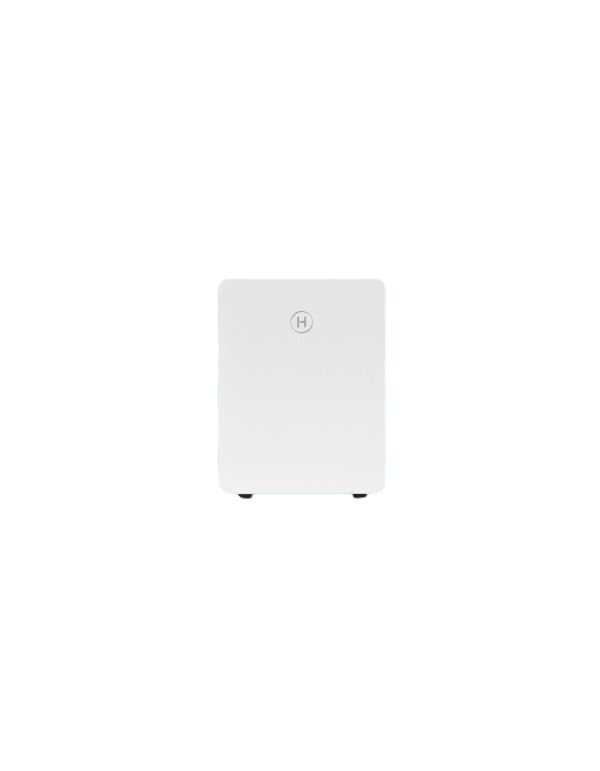

Hybrid Inverter Hoymiles Single-phase 10kw HiOne-10S-G3

Benefits Hybrid Inverter Hoymiles HiOne-10S-G3

The HiOne-10S-G3 It is one of the most powerful models of the new Hione range of Hoymiles, Designed as Modular System all on one by the battery HiOne-8B-G3, Stackable at the same team tower. Like the rest of the series, it offers Overdimensioned DC / AC up to 200%, allowing you to connect a power of solar Very superior to its nominal output power, which maximizes the use of solar generation even under conditions of low irradiation.

With 10kw of nominal power, admits a 20,000w maximum FV power of FV, the second highest of the entire Hione range, allowing it to cover larger residential facilities or housing with high electric consumption (for example, with air conditioning, electric vehicle or heat pump) without the need for a second inverter.

In the Security section, it incorporates a system AFCI (Arc Fault Circuit Interrupter) that actively detects possible electrical arcs in the installation, preventing fire risks, a function that not all inverters hybrid of the market offer as standard.

4 MPPT and active cooling for high power

Just like the HiOne-8S-G3, the HiOne-10S-G3 incorporates 4 independent MPPT, with a range of tension 50 to 550V and up Maximum current per entry, which facilitates the management of configurations More complex or higher total power installed. Its system Intelligent active air cooling, instead of the natural convection of the lower power models, it allows to dissipate the heat generated by its high nominal power without compromising the useful life of the electronic components, guaranteeing a stable operation even working continuously near its maximum power.

Compatible modular battery: HiOne-8B-G3

The HiOne-10S-G3 it is compatible with the lithium battery HiOne-8B-G3, a module of 8 KWh of Total Energy (7.8 kWh useful) cells LIFEPO4 of 314 AHthat can be stacked up 4 units per tower and combine in 2 towers in parallel, allowing to scale the storage capacity in a modular way integrated in the same furniture as the inverter. Your self-catency system Allows operating in cold climates, and its degree of protection Ip66 It enables the installation both inside and abroad.

Detailed technical characteristics

Battery:

• Type of compatible battery: Li-ion
• Battery voltage range: 390 to 550 V
• Compatible battery model: HiOne-8B-G3
• Number of admitted modules: 1 to 8

Solar Entrance (PV):

• Maximum recommended FV power: 20,000 W
• Maximum input voltage: 600 V
• Nominal voltage: 390 V
• Starting voltage: 70 V
• MPPT voltage range: 50 to 550 V
• Maximum input current: 18 A (× 4)
• Maximum short circuit: 27 A (× 4)
• Number of MPPT / maximum Strings: 4/4

AC output:

• Nominal output power: 10,000 W
• Maximum apparent power on-grid: 10,000 VA
• Maximum output current: 45.5
• Maximum apparent power OFF-GRID: 15,000 goes for 10 s (Requires Gateway Hoymiles)
• Network form: L / no / PE
• Nominal output voltage: 220/230/240 V
• Nominal network frequency: 50/60 Hz
• Power factor: > 0.99 (0.8 in advance - 0.8 in delay)
• THDI (at nominal power):

Efficiency:

• Maximum efficiency: 98,0%
• EF EFFICIENCY: 97,5%

Protection:

• Anti-Isla Protection: Integrated
• Protection against reverse polarity in Strings PV: Integrated
• Detection of insulation resistance: Integrated
• Residual current monitoring: Integrated
• Protection against AC overcurrent: Integrated
• Protection against CA short: Integrated
• Protection against overvoltage and AC sub-tension: Integrated
• Surge protection: DC Type II / AC Type II

General information:

• Dimensions (an × prof): 620 × 360 × 255 mm
• Weight: 28.5 kg
• Assembly: Mural or in soil
• Operating temperature: -30 ° C A + 65 ° C (derateo above 45 ° C)
• Relative humidity: 0-95%, without condensation
• Refrigeration: Intelligent active air
• Topology: No isolation (no isollation)
• Maximum altitude: ≤4,000 m
• Degree of protection: Ip66
• User interface: LED and app
• Communication: RS485, Bluetooth, Wi-Fi / Ethernet / 4G (optional)
• Warranty: 10 years

Certifications and regulations:

• Network connection standard: EN 50549-1 / -10, NF EN 50549-1 / -10, CEI 0-21, AS / NZS 4777.2, PEA / MEA, Tor Erzeuger Type A, NTS 631, UNE 217001, UNE 217002
• Standard Safety / EMC: IEC / EN 61000-6-1 / -2 / -3 / -4, EN 62920, IEC / EN 62109-1 & 2

Frequently Asked Questions (FAQ)

1. What installation size can I cover with the HiOne-10S-G3?

Admits a 20,000w maximum FV power of FV, thanks to his Overdimensioned DC / AC of 200%, which allows you to cover larger residential facilities or housing with high electrical consumption with a single inverter.

2. What battery can I connect to HiOne-10S-G3?

It is compatible with the lithium battery modular HiOne-8B-G3of 8 kwh per module, stack up 4 units per tower and combinable in 2 towers in parallel, integrating in the same furniture as the inverter.

3. How is it different from HiOne-8S-G3?

Offers a Upper nominal power (10kw versus 8kw), a Highest recommended maximum FV power (20,000W compared to 16,000W) and one Maximum output current (45.5A versus 36.4a), maintaining the same number of MPPT, active cooling and physical dimensions.

4. What is AFCI and why is it important?

The AFCI (Arc Fault Circuit Interrupter) It is a protection system that actively detects possible electrical arcs in the installation wiring, cutting the supply to prevent fire risks, an additional safety layer versus inverters Without this function.

5. Is it suitable for outdoor installation?

Yes, it has a degree of protection Ip66 and a range of operating temperature of -30 ° C A + 65 ° C (with derateo above 45 ° C), admitting mural assembly or in soil both indoors and outdoor.

6. How is the operation of the inverter?

Through its interface LED and app, with communication RS485, Bluetooth, Wi-Fi, Ethernet or 4G (Optional), which allows to remotely monitor solar production, battery status and energy management strategies from Smart EMS integrated.
