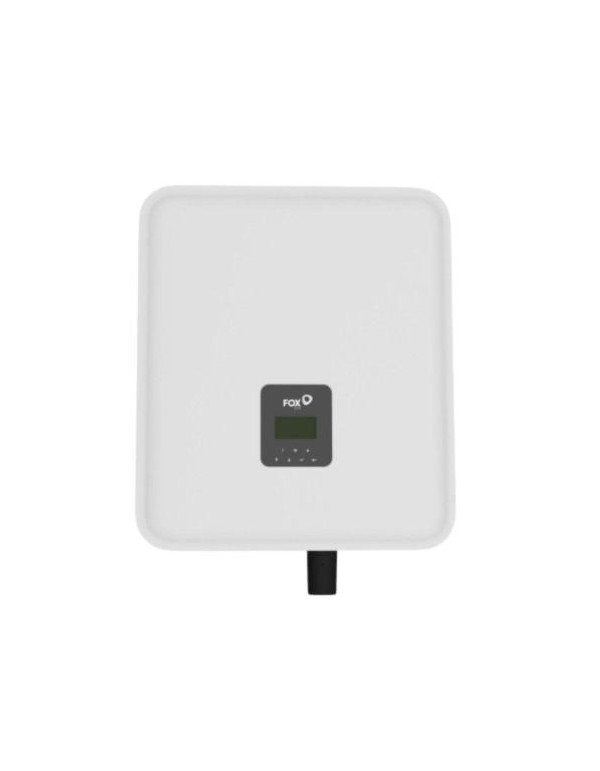

Hybrid Inverter Three-phase Fox ESS H3-12.0-Smart 12000W Wifi Triple MPPT

Fox ESS H3-12.0-Smart: Three-phase photovoltaic efficiency and advanced storage management

The development of a system of own consumption efficient three-phase and prepared for the future requires inverters able to manage the energy with the minimum loss. The hybrid Inverter Fox ESS H3-12.0-Smart of the H3 SMART series is positioned ahead of its direct competitors thanks to its direct coupling with lithium batteries high voltage, operating optimally in a range of up to 800V. When working with raised voltages, the system significantly reduces operating currents and thermal dissipation losses, allowing an impressive load and unloading capacity of up to 15kw. This robust storage management ensures maximum use of solar surpluses and guarantees the stability of the power supply during 24 hours a day.

Triple MPPT high stream for complex cover configurations

Equipped with 3 independent MPP followers (with configuration of 1 String by Tracker), this equipment eliminates the usual photovoltaic design restrictions. Amproves a maximum entry current of 20a and up 25th short circuit current by MPPT, a key specification to assimilate without losses the high stream of solar modern large format. With an ultra low boot voltage of 140v, the inverter squeeze the performance of the plates from dawn to sunset, even in covers with cross-orientimed orientaciones.

Advanced security, IP65 insulation and EPS electric backup immediate

Long-term reliability is guaranteed by a set of factory integrated protections that include overvoltage protection integrated by SPD Type II dischargers Both on the CC side (PV) and AC. It has a physical cutting switch DC, insulation monitoring and anti-island protection. His chassis with degree of protection IP65 allows direct installation outdoors. In case of a cut in the supply of the electrical network, its backup functionality (ePS output) Respond automatically in a record time less than 10 milliseconds, delivering an apparent emergency power of 12000va (with peaks up 14400VA for 60 seconds) to keep the critical loads fully operational.

Featured technical characteristics:

• Nominal output power: 12000 W with a maximum apparent power output 13200 VA.
• Maximum power of the solar field: Admits a field of up 24000 WP (10000 W max by MPPT).
• Max input voltage DC: 1000 V with a nominal operating voltage of 620 V.
• MPPT operating voltage range: Broad-range 120 V to 950 V with boot 140 V.
• Maximum current of entry PV: 20 a per follower Short circuit current 25 a.
• Number of Followers MPP: 3 independent MPPT with 1 String by Tracker.
• Storage compatibility: Designed to lithium batteries (Chemistry LFP) high voltage between 100 V and 800 V.
• Charging power / battery discharge: High capacity management of up to 15kw of continuous power.
• Conversion efficiency: Maximum efficiency 97.90% and European efficiency of the 97.20%.
• Transfer time back-up: Ultra fast switching of emergency output in less than 10 ms.
• Structural and thermal design: Active cooling by smart fan (Fan cooling) and sound level of less to 55 dB.
• Dimensions and weight: Compact body 600 x 450 x 226 mm with a net weight of 34 kg.
• Serial connectivity: Smart module WiFi / LAN / Bluetooth integrated, EMS (RS485), USB and CAN communication for BMS.

Frequently asked questions (FAQ):

1. What real advantages offer the triple MPPT follower of this inverter?

By having 3 independent MPPT, the inverter allows you to make three series of solar oriented in three directions or different inclinations. This prevents the low production of a series affected by shadows or bad tilt harm the overall performance of others, maximizing the photovoltaic efficiency of the cover.

2. Is it compatible with the solar of great format and high power of the market?

Yes, totally. Each of its three MPPT regulators admits a 20A input current and a short circuit current of 25a. These high current specifications guarantee that the inverter work without suffering losses by limitation (clipping) with the powerful modern photovoltaic cells.

3. How does EPS emergency output work before a power supply cut?

The inverter integrates a transfer system that takes less than 10 milliseconds in isolating the housing of the public network fall. Then, it generates a own three-phase network and instantaneous using the simultaneous energy of the batteries and the , supplying 12000VA continuous power so that the appliances and equipment keep working without getting out.

4. What kind of refrigeration do you use this model of 12000W?

Unlike the lowest range models, the 12KW model incorporates a cooling system for forced ventilation (Fan cooling). This ensures optimal thermal dissipation when the equipment works at maximum performance, keeping the noise level below the 55 dB.

5. What communication options include to track the installation?

The inverter it comes equipped from the factory with an advanced connectivity module that includes WiFi, LAN and Bluetooth. This allows you to connect the equipment directly to the FoxCloud V2.0 platform to monitor photovoltaic production, lithium battery charge status and real-time consumer curves from any smartphone or web.
