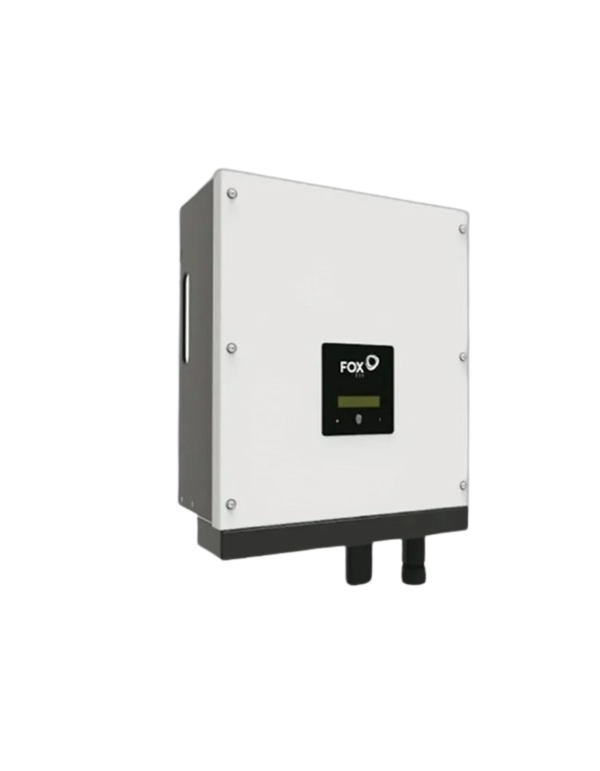

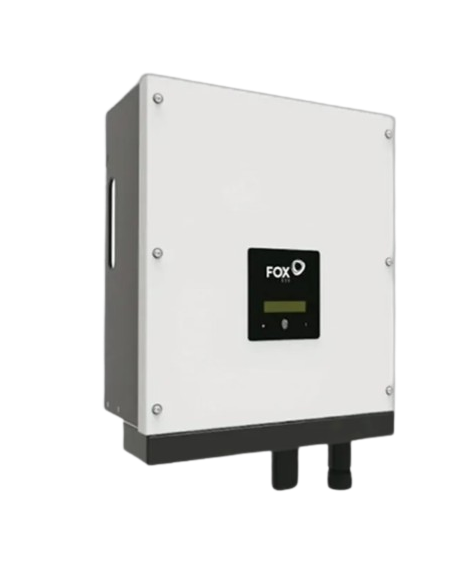

Hybrid Inverter Single-phase Fox ESS H1-5.0-E-G2 5000W Double MPPT WIFI

Fox ESS H1-5.0-E-G2: Top Photovoltaic Performance and Efficient Management of High Voltage Batteries

The development of a system of own consumption Residential efficient and prepared for the future requires inverters Cable of managing surpluses with minimal energy loss. The hybrid Inverter FOX ESS H1-5.0-E-G2 second generation it is positioned ahead of its direct competitors thanks to its direct coupling with lithium batteries High voltage When working in a raised voltage range (up to 480V), significantly reduces operating currents and thermal dissipation losses, allowing a continuous battery charge efficiency (PV to BAT) up to 98.50%. Your flexible scalability allows you to add accumulative modules easily in series (up to 7 units), guaranteeing a robust reserve and adapted to the real needs of each home.

Dual MPPT high stream for Latest Generation Solar

Thanks to his 2 independent MPPT followers admit 16th input current and 20th short circuit by string, This team eliminates the usual restrictions of photovoltaic design. It is fully compatible with high-power commercial modules, allowing to squeeze the maximum performance of solar Even installed in roofs with cross-orientations, partial shadows or complex inclinations, starting production with only 75V AC / DC input.

Advanced security, IP65 insulation and continuous EPS electric backup

Safety is a critical factor in the domestic environment. This team has Integrated Overvoltage Protection (SPD DC Type II and AC Type III), physical cutting switch in continuous current (DC switch), Isolation monitoring and anti-factory anti-island protection. His watertight chassis with Degree of protection IP65 It allows direct installation outdoors. In case of failures or blackouts in the conventional electrical network, its Battery Battery Function (EPS output) responds immediately in less than 20 ms, supplying an apparent emergency power of 5000va (with peaks up 6000VA for 60 seconds) To keep the critical charges of the home on.

Featured technical characteristics:

• Nominal output power: 5000 W With a nominal output current of 21.7.

• Maximum power of photovoltaic input: 7500 W Assigned in a limit of 3750 W for each MPPT.

• Maximum DC input voltage: 600 V With a nominal operating voltage of 360 V.

• MPPT operating voltage range: Broad-range 80 V to 550 V boot 75 V.

• Maximum current of entry PV: 16 a per follower Short circuit current 20 a.

• Storage compatibility: Designed to lithium batteries (LFP) high voltage.

• Battery voltage range: 80 V at 480 V With a maximum current load / unloading At.

• System efficiency: Maximum efficiency of conversion 97.04% and European efficiency of the 96.26%.

• Transfer time EPS: Ultra fast backup switching on less than 20 ms.

• Structural and thermal design: Cooling natural convection (without fans) and sound level of 35 dB.

• Security protections: SPD Type II (DC), SPD Type III (AC), Integrated DC switch and insulation monitoring.

• Dimensions and physical weight: Compact measures 434 x 418 x 185 mm and a net weight of 22 kg.

• Serial communication interfaces: WiFi integrated Rs485, DRM, USB and communication Can For BMS.

Frequently asked questions (FAQ):

1. What advantages does support compatibility with high voltage batteries in this model?

When operating in a range of 80 to 480V, the system requires less current intensity to transfer the same energy compared to batteries Classic 48V. This minimizes generous heat losses, increases the PV load efficiency to BAT at 98.50% And decreases the necessary section in the installation wiring.

2. How does the EPS output work in case of a cut in the power supply?

The inverter has an automatic internal switching system that takes Less than 20 milliseconds In reacting to a network drop. When activated, Isolates the house and uses the combined energy of your solar and batteries To feed the essential consumption through its dedicated emergency channel.

3. Can I connect Strings with last generation and high-generation photovoltaic modules?

Yes, perfectly. Each of his two MPPT followers tolerates a 16A maximum entry current and current critical currents up 20a. This makes it suitable for working without restrictions or losses by limitation (clipping) with large cells of the current market.

4. Is the inverter FOX ESS H1-5.0-E-G2 When operating at full capacity?

No. hybrid Inverter use a system of Cooling by natural convection, dispensing completely from external mechanical fans. Thanks to this, it maintains its level of sonority below the 35 dB, making it extremely silent and suitable for placed in habitable interior areas or passage areas.

5. What connectivity options include to visualize consumption and production?

The team integrates connectivity WiFi native standard and is compatible with interfaces like RS485 and Can. This allows to synchronize all the operation of the equipment with the official website and the mobile application of Fox ESS to track the photovoltaic performance, the state of the lithium batteries and domestic consumption in real time.
