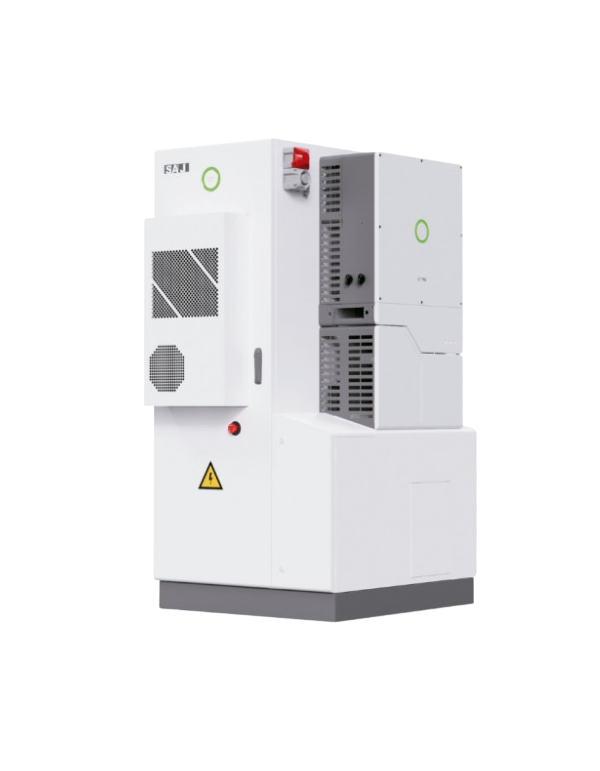

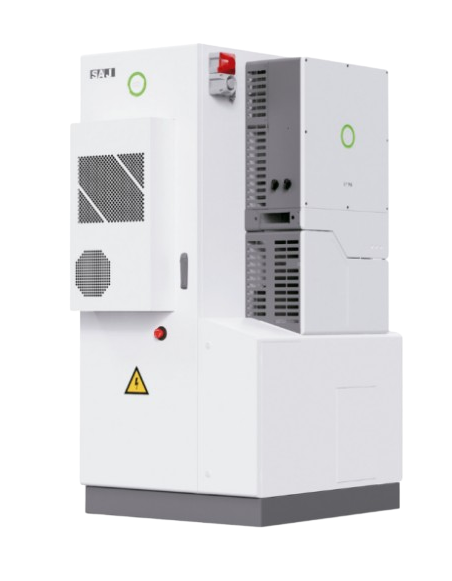

Integral Solution of Storage C & I SAJ CHS2 50KW / 100.3KWH | Series CHS2

Hybrid Inverter Trading all-in-one SAJ CHS2-50K-T6-X: maximum energy autonomy, 280Ah industrial cells and active security protection

The energy transition in commercial environments and small industries requires storage platforms that are not only powerful, but also simple to install and extremely reliable. The serie SAJ Chs2 answer this need by unifying control electronics and accumulator bank in a single block of monolithic design. . The combination of the model of 50kw of power with the maximum storage module of 100.3kwh it allows to optimize electricity costs through direct self-consumption strategies, price arbitration by schedules (time-of-use) and support peak support (peak Shaving).

Advanced photovoltaic performance and supply continuity (function UPS)

One of the greatest virtues of engineering SAJ Chs2-50k-t6-x it lies in its direct current management capacity. The inverter is able to assimilate up to a 200% Overdimension in the Solar field (Admitting a FV field of up 126,000 WP under STC). . This means that the system can feed the operational loads of the business and, simultaneously, derive the surplus to recharge the 100.3 kWh of the battery at a load rate of 0.5c.

In front of unstable networks or prolonged power cuts, the unit immediately active its functionality of contributor (back-up / up / up UPS). . With a transfer time less than 10 milliseconds , the system prevents heavy machinery, servers or commercial refrigeration cameras to experience interruptions or operating damage. . Likewise, the team is fully compatible with direct integration of external Diesel Generators , providing uninterrupted safety even in micro-grinds or fully isolated locations.

Multilayer safety and high durability air conditioning

The battery cabinet incorporates last generation cells 280ah LifePo4 , internationally recognized for its chemical stability and its prolonged useful life without the use of cobalt. . To ensure that cells work in their ideal thermal range and prolong their longevity, the CHS2 series rule out common passive ventilation and adopts a integrated Industrial Air Conditioning System for heat dissipation.

In the field of security, the team has a active / passive safety protection on 6 levels, which includes an internal fire detector, intelligent monitoring by Cloud bms with preventive alerts and protection against arc failures (integrated AFCI). . The exterior set presents a perimeter protection index IP55 for the battery and IP66 module for the inverter , ensuring a maximum resistance against dust and water jets in any installation scenario C & I.

Technical specifications (model CHS2-50K-T6-X):

Continuous current entry (photovoltaic):

• Maximum power of the FV field: 126,000 WP @STC.
• Maximum voltage of cc: 1,000 V.
• MPPT voltage interval: 180 V - 850 V.
• Starting voltage: 200 V.
• Max Entry CC: 64.5.
• Number of Strings by MPPT: 2.

Battery bank parameters:

• Type of battery: Lithium Ferrophosphate (LifePO4) of 280Ah.
• Cumulative nominal energy: 100.3 kWh.
• Maximum loading / unloading current: 140 a.

Alternating current output (CA in network / on-grid):

• Nominal AC power: 50,000 W (50 kW).
• Maximum output current: 79.8 A @ 230V.
• Nominal network voltage: Three-phase 3 + N + PE / 3 + PE (380 V / 400 V).
• Maximum efficiency Inverter: 98.0%.

Critical backup (Emergency AC / Back-up):

• Maximum emergency output power: 55,000 VA.

• Apparent power output peak: 75,000 VA (for 5 seconds).

• Switching time UPS: 10ms.

General parameters and protections:

• Degree of environmental protection: IP55 (Battery Module) / IP66 (Inverter).

• Refrigeration / Air conditioning method: Integrated air conditioning (Air Conditioner).

• Operational temperature range: -30 ° C to +50 ° C (derating from 45 ° C).

• Communications: Wi-Fi / Ethernet / Can / RS485.
• Physical dimensions (at x an x PR): 1980 mm × 988 mm × 1065 mm.
• Total weight of the set (Configuration 100.3KWh): 1,350 kg.

Frequently Asked Questions (FAQ)

1. What commercial applications are the most recommended for the SAJ 50KW / 100KWh CHS2? Thanks to its great accumulation capacity and its three-phase power of 50 kW , it is especially suitable for SMEs, industrial warehouses, warehouses, agricultural complexes (such as wineries or farms), schools, medical centers and service stations that seek to reduce your dependence on the electricity network or ensure critical processes.
2. How does fire protection of this industrial system work? The team has a 6-level multilayer proactive security. . In addition to the usual electrical protections (such as the DC switch and insulation failure monitoring), the inner cabinet has extinction and active containment systems of industrial grade fire and cloud supervision software (Cloud bms) that constantly analyzes the state of the cells to provide any thermal anomaly.
3. Can multiple systems be connected SAJ CHS2 in parallel to increase the power? Yes. According to the manufacturer's technical documentation, the CHS2 series supports the parallel connection of up to 10 units. This allows you to expand the plant in a modular and flexible way as you grow the energy or storage needs.
