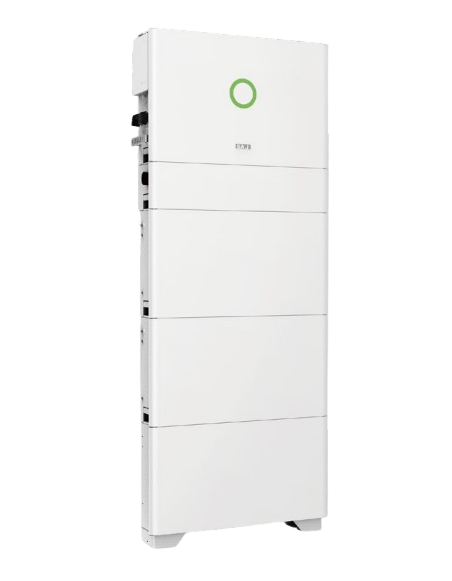

Hybrid Inverter Single-phase SAJ 5kw HS3-5K-S2 | Pack AIO3 + Meter + CT

SAJ HS3-5K-S2 AIO3: 5KW modular revolution, function SAI

Achieving energy independence in a single-phase housing requires a control brain that unifies the generation, demand and storage cleanly and efficiently. The hybrid Inverter networking SAJ 5KW single-phase HS3-5K-S2 it introduces a revolutionary concept of modular and aesthetic design, designed to integrate perfectly into demanding residential environments seeking full protection against increases in light or unexpected blackouts.

Double MPPT 16A and Modular Concept All-in-One for storage

Photovoltaic flexibility in continuous current is supported by 2 independent MPPT followers. This greatly facilitates the design of the strings in residential covers with different inclinations or orientations (such as two-waters and west waters) without shading affect global performance. By admitting a maximum entrance current of 16A per chain, this inverter it is coupled perfectly with modern photovoltaic modules of large cells. This model belongs to our specialized range of inverters hybrid, which means that it has an advanced bidirectional electronics prepared for intelligent battery management.

This pack includes the system AIO3 along with the meter (vatimeter) and the CT (current transformer). These accessories are fundamental, since they measure in real time the sense of electricity in the house, managing to activate essential functions such as zero-to-network injection or the intelligent surplus derivation. The HS3 series stands out for its stackable and clean design concept, allowing the compatible high voltage lithium storage modules, which you can find within our catalog of batteries high efficiency.

Function UPS for network failures and IP65 chassis without fans

The security and continuity of the supply in the home are guaranteed with the SAJ Hs3-5k-s2. Has a function SAI/UPS dedicated with an automatic switching time of less than 10 milliseconds. Before an unforeseen cut in the general electrical network, the inverter react immediately by feeding the critical charges of the house (such as lighting, refrigerator or Internet) without suffering blink or restarts on your equipment. On the physical plane, its elegant IP65 hermetic chassis is refrigerated by natural Convection No Fans, eliminating annoying noises at home and reducing maintenance. If you are going to install the on tile or metal roofs, do not forget to guarantee a rigid and stainless support by acquiring our structures for of reinforced aluminum.

Technical specifications (model SAJ HS3-5K-S2 single-phase):

Continuous current input parameters (DC - photovoltaic):

• Maximum recommended photovoltaic power: 7,500 WP (Supports 150% CC oversioning)

• Maximum System Tension DC: 600 V

• Voltage range of the MPPT: 90 V - 550 V

• Nominal input voltage CC: 360 V

• Investment boot voltage: 100 V

• Maximum cc input current: 16 a / 16 (For each MPPT follower)

• Number of independent MPPT followers: 2

Parameters of the battery (modular accumulation port):

• Type of compatible battery: Lithium (LIFEPO4) high voltage / modular design stackable.

• Battery voltage range: 180 V - 550 V

• Maximum loading / unloading current: 30 a / 30 a

Alternating current output parameters (CA - Network Connection):

• Nominal output power to the network: 5,000 W

• Maximum apparent power of output: 5,000 VA

• Maximum output current CA: 22.8 a

• Nameric Network / Range: 220V, 230V, 240V / 180V-280V

• Maximum efficiency Inverter: 97,6%

Emergency output parameters (CA - Function UPS Back-up):

• Nominal backup power: 5,000 W

• Maximum peak apparent power: 7,500 VA (60 seconds)

• Automatic switching time:

Frequently Asked Questions (FAQ)

1. What are the putting and the CT that are included in this 5KW pack? The Meter (vatimeter) along with your clip amperimeter ct they measure the energy of your home bidirectly. Thanks to this data, the inverter SAJ HS3 instantly knows if you must allocate solar energy to the consumption of the house, load the modular batteries with the surplus, or execute the zero injection to the public electrical network.

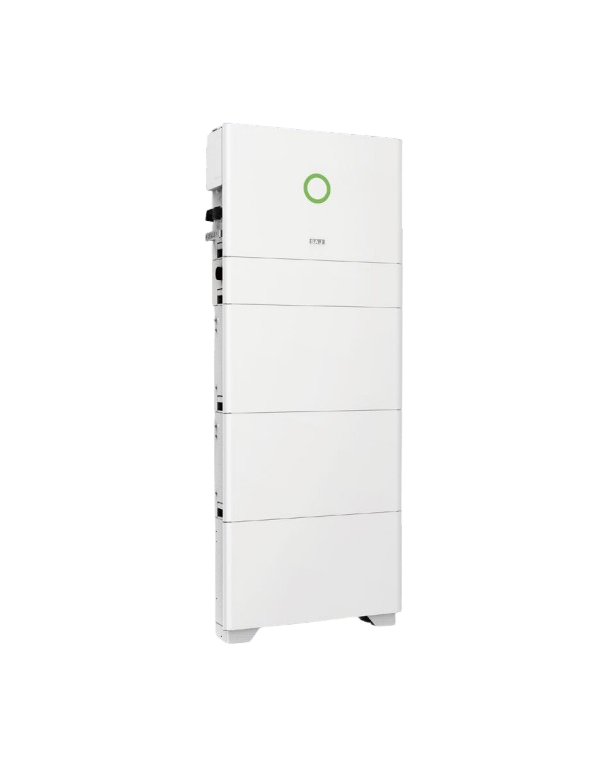

2. What advantages does the All-in-One modular format of the HS3 series provide? Unlike traditional systems, the HS3 series is committed to a clean and compact aesthetics. The inverter it is installed at the top and compatible battery modules are stacked directly below it. This eliminates the need for visible external DC wiring, saves space and drastically reduces the installation time.
3. How does the inverter if there is a light cut in my area? It has a support output dedicated to function UPS that commutes in less than 10 ms. If the general electrical network falls, the equipment takes the energy of your and batteries to feed your critical charges automatically, preventing your appliances or computer devices from turning off.
4. Does inverter does it generate noise when working at full size in summer? No, the team offers operation completely silent. Your IP65 hermetic chassis dissipates the residual heat using an advanced system of natural convection. When dispensing with external mechanical fans, it eliminates continuous ventilation noises and avoids the usual faults caused by dust accumulation.
