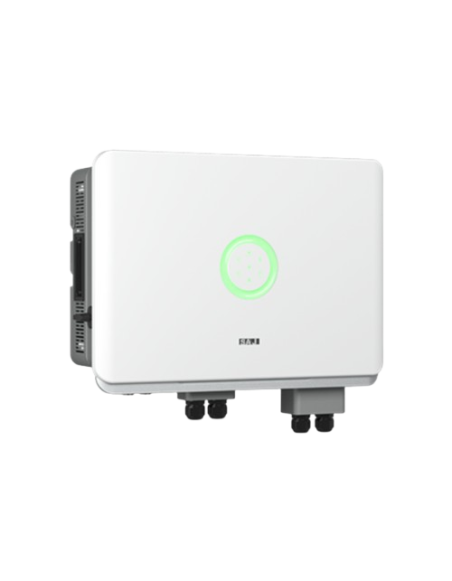

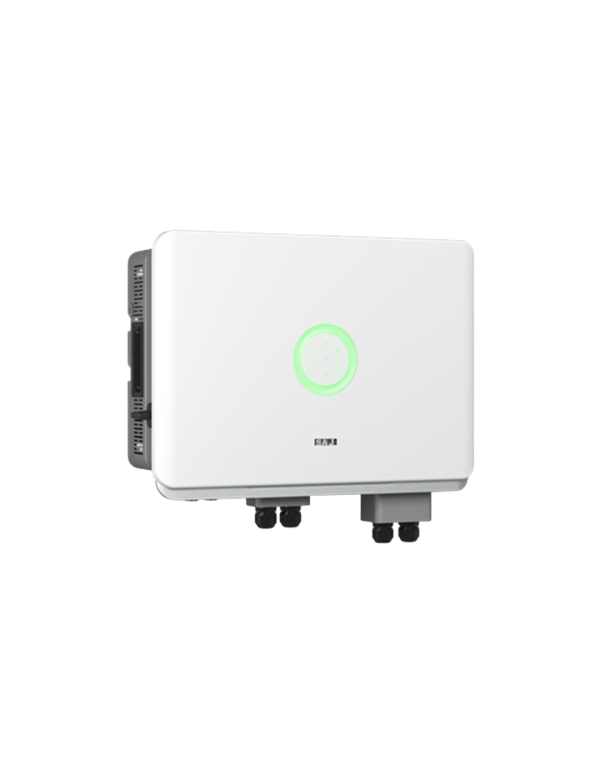

Hybrid Inverter Three-phase SAJ 30kw H2-30K-T3 | Pack AIO3 + Meter + CT

SAJ H2-30K-T3 AIO3: 30KW commercial power, 20A String current and smart backup UPS

Optimizing energy efficiency on large residential surfaces, industries or businesses equipped with three-phase networks requires a high-power solution capable of unifying massive energy capture, intelligent monitoring and public network falling resilience. The hybrid Inverter networking SAJ 30KW three-phase H2-30K-T3 enter an advanced industrial electronics designed to maximize the return rate of investment of the photovoltaic installation.

20A entry by String, double power in plates and advanced surplus management

Continuous current engineering of the H2 series is prepared for the modern photovoltaic module market. Admits a 20A maximum entrance current by String, which allows you to connect natively to high power lots and ultra-large cells without suffering saturation losses. In addition, it has the ability to tolerate a overdimensioning photovoltaic power in DC of 150%, allowing to connect up to 45,000 WP in to ensure excellent production on cloudy days or during the hours of lower solar radiation. This robust model heads our premium range of inverters hybrid three-phase for demanding installations.

This pack incorporates the system from the factory AIO3 Accompanied by your meter (vatimeter) and three-phase current transformers (CT). These measurement accessories bidirectly read the electrical flows between the external distributor network and the property, allowing the inverter run a real-time surplus control and the activation of the zero injection strict if necessary. All the remaining energy produced during the day can be directed towards high-capacity chemical storage systems, which you can configure by selecting the ideal options in our catalog of batteries high voltage stationary.

Active ACCI Security, Function SAI of backrest and industrial IP65 chassis

Operational protection is a priority in the H2 series SAJ. Has a integrated AFCI protection module, which premociously detects the formation of hazardous electric arcs in the CC lines and disconnects the system automatically to prevent fire risks in the property. In case of a cut in the supply of the general electrical network, the equipment activates its function SAI/UPS dedicated with a response time less than 20 ms, supplying commercial or industrial critical charges with total normality using the energy of plates and accumulators. Physically, it has an IP65 hermetic chassis protected against SPD Type II overvoltages. If you are going to deploy a massive amount of photovoltaic modules on industrial covers, we suggest ensuring with our structures for aluminum extruded high strength.

Technical specifications (model SAJ H2-30K-T3 three-phase):

Continuous current input parameters (DC - photovoltaic):

• Maximum recommended photovoltaic power: 45,000 WP (Supports up to 150% of oversimement)

• Maximum System Tension DC: 1,000 V

• Investment boot voltage: 180 V

• Maximum cc input current: 20 a per chain (compatible with ultra high photovoltaic modules).

• Number of followers MPPT / Strings: Optimized configuration for high industrial power.

Electrical output parameters (CA - Network Connection):

• Nominal output power to the network: 30,000 W (30 kW).

• Maximum apparent power of output: 30,000 VA

• Nominal Network Supply Supported: Three-phase 3L + N + PE.

• Maximum efficiency of the Inverter: 98,0%.

• European performance: 97,6%.

Integrated Safety and Protection Systems:

• AFCI protection (electric arc detection): Integrated as standard for maximum fire safety.

• Surge protection: Dischargers SPD Type II integrated both on the CC side and in AC.

• Backup function (SAI / UPS): Automatic switching time ≤ 20 ms.

• Degree of environmental protection: Industrial certification Ip65 (Suitable for aperture).

• Refrigeration method: Intelligent cooling by fan.

Frequently Asked Questions (FAQ)

1. What benefit does the 20A String current contribute to the SAJ H2-30k-t3? The modern large format solar generate very high output currents. By admitting 20th by chain , the inverter SAJ of 30kw is fully compatible with these state-of-the-art modules, allowing them to operate at their maximum capacity without suffering the annoying effect of "clipping" or current cut that occurs in inverters older.
2. What are the entire three-phase current and current transformers (ct)? They are responsible for measuring in real time the total consumption of your company or residence and the management of energy. Thanks to this pack meter + ct, the hybrid Inverter he knows exactly if he should derive solar production towards instant self-consumption, store surpluses on the battery bank or activate zero injection.
3. What is AFCI protection that is integrated into this 30KW model? The AFCI (Arc-Fault Circuit Interrupter) it is an intelligent active security system. Monitors the direct current lines and, if it detects any small anomaly or spark caused by a damaged cable or a bad connection (electric arc), disconnects the inverter instantly to neutralize the risk of short circuit or fire.
4. What happens with the consumption of my property if there is a general blackout of the electrical network? The inverter it has a backup output with function UPS that reacts in less than 20 milliseconds. In case of light cut, the team automatically switches to continue feeding your critical charges using the combined energy of your photovoltaic and batteries, preventing computer stop or air conditioning systems.
