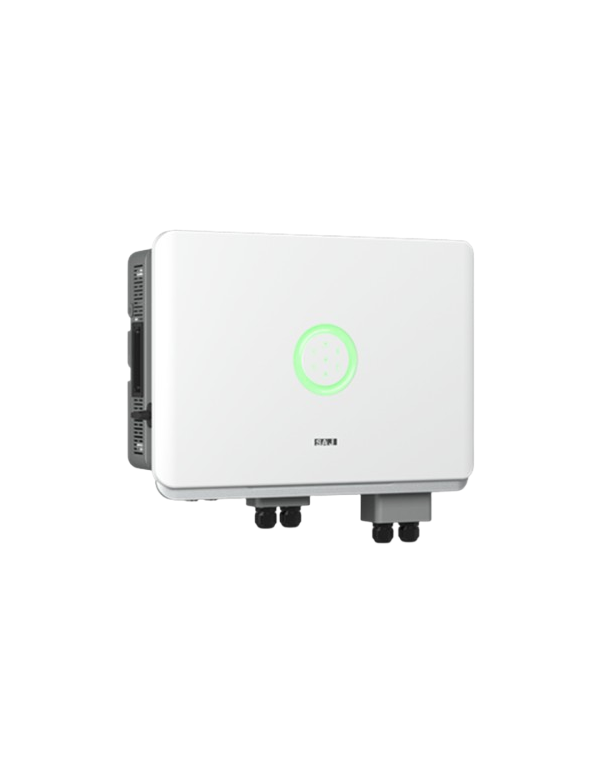

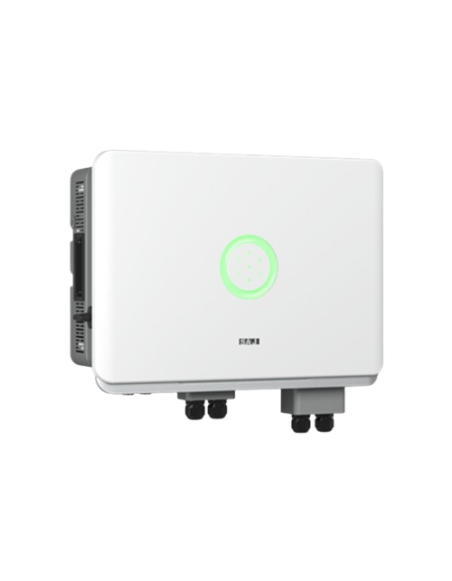

Hybrid Inverter Three-phase SAJ 15kw H2-15K-T3 | Pack AIO3 + Meter + CT

SAJ H2-15K-T3 AIO3: 15KW Photovoltaic Intelligence, 20A Entry Stream and Advanced Commercial Electric Backup

Provide three-phase facilities with large consumption or small industries requires prepared equipment to process high levels of energy without losing efficiency or flexibility. The hybrid Inverter networking SAJ H2-15K-T3 of 15KW it represents the ideal technological leap, acting as a central station that orchestra with millimeter precision the generation of the modules, the operational needs of the property and the storage cycles.

20A entries for of new generation and high voltage storage

The strong point of this model of the T3 series lies in its adaptability on the direct current side. Your tickets accept a maximum current by 20A chain, an essential specification for working without loss of cutting with modern solar of large format cells and elevated powers. Also, when supporting a photovoltaic oversizing up to 200%, the user can install twice power in plates that the nominal power of the inverter, Guaranteeing a maximum production even on cloudy days. If you want to compare this model with other potencies or brand alternatives, we invite you to explore our full range of inverters hybrid of last generation.

The supply includes the ecosystem AIO3 accompanied by the meter (vatimeter) and three-phase current transformers (CT). These tools give you the inverter real-time eyes on the electric distribution network, detecting the exact direction of energy to cover internal consumption, perform symmetric injections or block surpluses towards the street by zero injection. To safeguard all the excess energy from daylight hours, the system is prepared to load and discharged quickly by directly connecting to the accumulation blocks of our specialized category of batteries of high voltage lithium.

Active security with AFCI, function UPS and intelligent cooling

Operational security has been an absolute priority in the development of the SAJ H2-15k-t3. It has a integrated factory AFCI protection system, which constantly scans the direct current lines to detect and extinguish hazardous electric arcs before they may cause thermal failures. In case of emergencies for falls from the outdoor network, its function UPS switches at a time of less than 20 ms, maintaining machinery operations, cameras or critical servers automatically. Due to the high levels of power it handles, this model incorporates a system of intelligent cooling by fan and protections against Overloads and Type II overvoltages in CC and CA. If you are going to set a considerable amount of solar modules in industrial or residential covers, it ensures its stability by acquiring our structures for of great format and high mechanical strength.

Technical specifications (model SAJ H2-15K-T3 three-phase):

Continuous current input parameters (DC - photovoltaic):

• Maximum recommended photovoltaic power: 30,000 WP (Overdimensioning of 200%)

• Maximum System Tension DC: 1,000 V

• Voltage range of the MPPT: 180 V - 850 V * Nominal input voltage CC: 600 V * Investment boot voltage: 180 V * Maximum cc input current: 20 a by chain / entry

Battery parameters (accumulation port):

• Type of battery supported: Lithium (LifePO4) / High Voltage

• Battery voltage range: 180 V - 600 V * Charging / unloading compatibility: Loading and fast discharge of high-efficient admitted efficiency

Alternating current output parameters (CA - Network Connection):

• Nominal output power to the network: 15,000 W

• Maximum apparent power of output: 16,500 VA * Nominal Network Supply Supported: 3x220V / 380V, 3x230v / 400V (three-phase network) * Maximum efficiency Inverter: 98,0%

Emergency output parameters (CA - Function UPS Back-up):

• Nominal backup power: 15,000 W * Automatic emergency switching time: ≤ 20 ms

Frequently Asked Questions (FAQ)

1. Why is it so important that this inverter do you admit 20th chain current? The modern high power solar (especially industrialists) use larger cells that generate a high ampera stream. By admitting up to 20a per chain, the SAJ H2-15K-T3 avoids losses by current limitation (clipping) Suffering others inverters older limited to 13A or 15A.
2. What is integrated AFCI protection and what security does it contribute? Protection AFCI (circuit breaker by arc failure) it is an active intelligent security system. Continuously monitor the direct current wiring and, if necessary, an electric arc (caused by a damaged cable or bad connection), immediately cut the current flow to prevent with total efficiency any risk of fire on the cover.
3. How does the inverter before a light cut in a three-phase commercial network? The team has a support output dedicated to function UPS that reacts in less than 20 ms. If the supply of the general electrical network is interrupted, the inverter he immediately takes the energy of photovoltaic plates and batteries to supply the essential three-phase charges automatedly.
4. What kind of refrigeration does this model of 15kW use? Due to the high power it manages, it employs a system of intelligent cooling by fan. The internal sensors regulate the speed of the automatic fans according to the working temperature of the inverter, ensuring that the electronic components remain in optimal ranges of temperature and prolonging the useful life of the equipment.
