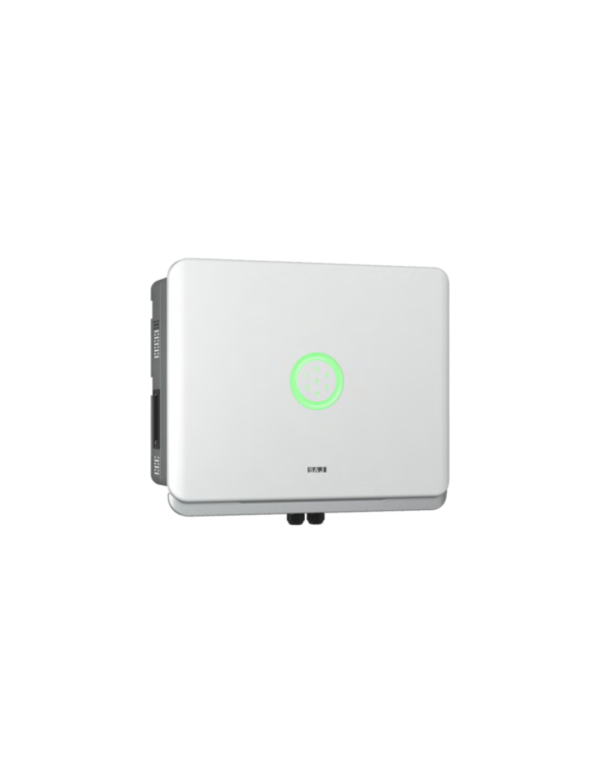

Hybrid Inverter SAJ H2-10K-T2 10kw three-phase | Pack AIO3 + Meter + CT

SAJ H2-10K-T2 AIO3: Three-phase hybrid power of 10KW, switching UPS

Optimizing a three-phase power supply by photovoltaic energy in properties with high demands requires an advanced control team that manages in a balanced way and in real time energy flows. The hybrid Inverter networking SAJ H2-10K-T2 three-phase 10KW it acts as the intelligent installation brain, designed specifically to provide businesses or large residences from an efficient, safe and protected self-consumption against light cuts.

Double MPPT of high efficiency and flexibility in front of imbalances

The photovoltaic management of this model is supported by 2 independent MPPT followers. This allows a versatile design of the strings using covers with orientations or variable inclinations without shadow losses affect the overall production of the plant. Each entry admits a maximum input current of 15A per chain, adapting natively to the modern high power solar. This device is part of our Premium section of inverters hybrid, which ensures a last generation bidirectional electronics conceived for the fast loading and unloading of storage systems.

One of the great advantages of this three-phase model lies in that supports a voltage imbalance in the three-phase outputs of 100%. This means that if one of the phases of the property consumes much more energy than the others, the inverter it will compensate the injection asymmetrically and intelligent. By including as standard the Meter and three-phase tongs, bidirectly monitor the electrical network. If your goal is to store the excess energy produced during the day, you can attach high voltage accumulation modules from our general catalog of lithium batteries, as well as other types of batteries like AGM or Gel

Emergency back SAI high-speed and design without fans

The SAJ H2-10K-T2 stands out for its reliability in the continuity of supply of the installation. Incorporate a backup function UPS with an automatic switching time less than 10 ms. Before an unforeseen blackout of the external distribution network, the inverter it reacts instantly by maintaining assets the typholy or single-phase critical consumption of the property without perceptible power cuts. At the construction level, its robust IP65 chassis has thermal dissipation by natural convection, A mechanical fan-free system that guarantees a noise-free environment and prevents premature failures by dust. To make the safe assembly of your solar in flat or tilted covers, we advise you to use our structures for aluminum high strength.

Technical specifications (model SAJ H2-10K-T2 three-phase):

Continuous current input parameters (DC - photovoltaic):

• Maximum recommended photovoltaic power: 15,000 WP (Overdimensioning 150%)

• Maximum System Tension DC: 1,000 V

• Voltage range of the MPPT: 180 V - 900 V

• Nominal input voltage CC: 600 V

• Investment boot voltage: 180 V

• Maximum cc input current: 15 a / 15 a (For each MPPT follower)

• Number of independent MPPT followers: 2

Battery parameters (accumulation port):

• Type of battery supported: Lithium (LifePO4) / High Voltage

• Battery voltage range: 180 V - 600 V

• Maximum loading / unloading current: 25 a / 25 a

Alternating current output parameters (CA - Network Connection):

• Nominal output power to the network: 10,000 W

• Maximum apparent power of output: 10,000 VA

• Maximum output current CA: 15.2 a

• Nominal Network Supply Supported: 3x220V / 380V, 3x230V / 400V (three-phase system)

• Maximum efficiency Inverter: 98,0%

Emergency output parameters (CA - Function UPS Back-up):

• Nominal backup power: 10,000 W

• Maximum peak apparent power: 16,500 VA (60 seconds)

• Automatic switching time:

Frequently Asked Questions (FAQ)

1. What functions do the meter and three-phase ct included in this pack? The Meter and the ct kit they make bidirectional measurements of the electric current flows in the three phases of the property. This supplies instant readings at inverter SAJ H2 to control the surpluses of the solar boards, inject energy unbalanced according to the demand of each phase and execute the zero injection if necessary.
2. How does the three-phase emergency exit work before a network supply cut? The team has a supporting output dedicated to function UPS that acts at a time less than 10 ms. If the distribution electric network suffers a fall, the inverter automatically divert the energy of the and batteries to supply critical burdens, guaranteeing the continuity of three-phase or single-phase housing equipment or commercial premises.
3. What benefit does it provide to support a 100% of three-phase load imbalance? In most properties, consumptions are not distributed symmetrically between the three phases. By admitting a 100% imbalance, the SAJ H2-10K-T2 can feed a single phase with a lot of demand while the others remain low, optimizing individual self-consumption without the need to force seawal consumption on all lines.
4. Does this inverter produce annoying noises in the place where it is installed? No, the team offers operation completely silent. Its housing with IP65 hermetic protection dissipates the residual temperature generated by a system of natural convection. Losing from external mechanical fans, it eliminates continuous ventilation noises and reduces maintenance costs due to dirt accumulation.
