Inverter Solar Fronius Primo Gen24 4.6 Plus | Hybrid Inverter Single-phase

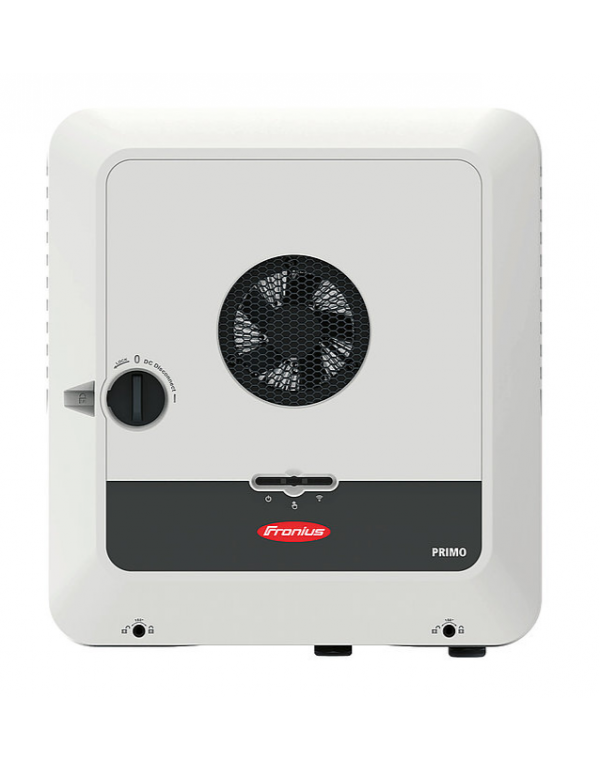

Fronius Primo Gen24 4.6 Plus: The hybrid revolution for your home

The transition towards energy independence requires smart electronics capable of simultaneously managing production, housing consumption and storage. The hybrid Inverter Fronius Primo Gen24 4.6 Plus of 4600w assume this control impeccably, allowing you to synchronize your energy solar With the traditional single-phase network or stored efficiently for its night use.

Secured continuity: functions of Backup PV Point and Full Backup

The main differential advantage of the series Gen24 plus in front of the inverters Conventional network is your ability to maintain power supply during a light cut in the public network:

• PV Point: A series integrated emergency output that provides up to 3 kW of automatic monophasic power during the day, feeding directly essential appliances (such as refrigerators, routers or chargers) using the instantaneous energy of the solar panels, with or without connected battery.

• Full Backup: By installing an external switching box and the use of lithium batteries, the inverter It is capable of feeding all the single-phase housing circuits automatically before a network failure.

Advanced Shadow Management and Vanguard Design

On Tienda Solar We select durable and easy to operate components. The Primo Gen24 breaks with the old SnapinVerter scheme to incorporate a compact design with rapid closing screws of a quarter turn, facilitating a clean and hermetic installation with IP66 protection. Thanks to his 2 independent MPPT followers, manages without roof problems with asymmetric orientations. If your roof is affected by partial shades due to chimneys or trees, the intelligent algorithm Dynamic Peak Manager Make a continuous sweep of the power curve to extract until the last watt available from your photovoltaic plates.

Technical specifications (Primo Gen24 4.6 plus model):

• Nominal output power (AC): 4600 W (4.6 kW)

• Maximum input power (DC): 6900 W (allows an excellent oversizing range of )

• Number of MPPT followers: 2

• Maximum efficiency Inverter: 97,2%

• Compatible batteries: High voltage batteries BYD Battery-Box Premium HVS / HVM

• Battery input voltage range: 150 V - 455 V

• Connection to Network: Single-phase (220V / 230V)

• Degree of environmental protection: IP66 (maximum resistance against dust and water jets for external installation)

• Serial connectivity: WLAN (WIFI), Ethernet (LAN), 2X RS485 (Modbus RTU), digital tickets / outputs for load management

• Refrigeration technology: Intelligent forced ventilation (Active Cooling)

• Dimensions of the team: 52.8 x 47.4 x 16.3 cm

• Net weight of Inverter: 16.6 kg

Frequently Asked Questions (FAQ)

1. Is it mandatory to install a battery together with the Fronius Primo Gen24 4.6 Plus? No, this hybrid Inverter can work perfectly as a inverter of connection to pure network in a first phase. The extraordinary thing is that it is "ready for battery" (Battery Ready), so you can add a lithium accumulator in the future without needing to change inverter Neither add additional load components.

2. What lithium batteries can I connect to this 4600W equipment? The GEN24 PLUS range is approved to work in perfect symbiosis with the High voltage lithium batteries brand BYD, specifically the models BYD Battery-Box Premium HVS and HVM. It is not compatible with low voltage (48V) batteries or with old lead-acid technologies.

3. How does the PV Point output work if I do not have installed batteries? If a blackout occurs during the day and the sky is clear, the inverter Automatically activate the dedicated jack PV POINT. You can connect there an extension or emergency line to feed consumption up to 3000W using directly the electricity generated by your solar At that time.

4. Why the Active Cooling Fronius exceeds passive cooling? By simultaneously managing photovoltaic production and battery charge cycles, the internal temperature tends to rise. The system Active Cooling Use a smart front fan that actively dissipates the heat of the electronics. This avoids energy efficiency losses per temperature (derating), Protects the internal circuits and prolongs the useful life of the equipment.
