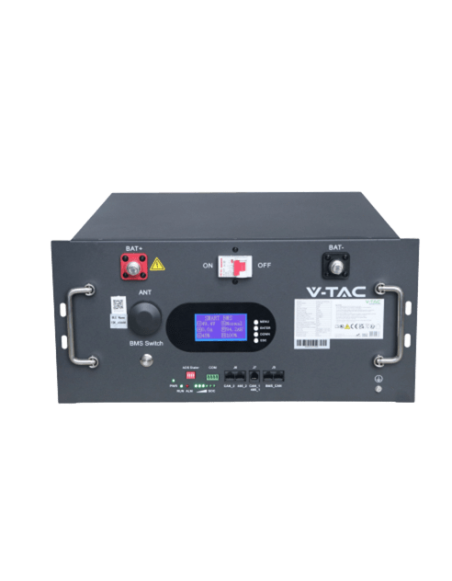

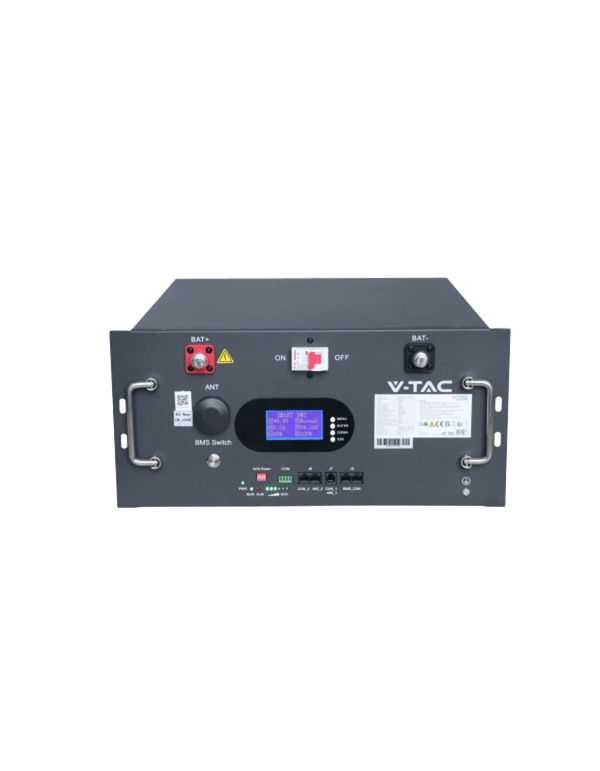

Lithium Battery V-TAC 48V 200Ah 9,6KWH VT-91600

Benefits of Lithium Battery V-TAC VT-91600

The VT-91600 is positioned as a solid alternative against other market storage solutions thanks to its balance between Capacity, durability and security. Your Certified useful life of more than 6000 cycles At 90% depth of discharge (DOD), maintaining 70% of its capacity at the end of its useful life (EOL), places this battery well above the average of traditional lead-acid batteries, significantly reducing the cost per kWh Stored throughout your operational life.

Your Ultra low internal resistance of 16 MΩ Minimizes heat losses during loading and unloading cycles, improving the overall system efficiency, while its discharge temperature range of -20 ° C at 60 ° C It makes it a specially versatile option for installations exposed to demanding weather conditions. When it is a 48 V system with CAN, the VT-91600 is integrated natively with most inverters hybrid of the market, allowing real-time monitoring of the state of charge, temperature and accumulated cycles. This compatibility also makes it the ideal complement for those who already have solar panels and seek to maximize their self-consumption by storing daily production surpluses.

Compatibility and integration with your solar system

Thanks to its continuous maximum current of 100 a Both on load and unloading, VT-91600 can work in facilities with high power demands without compromising safety or the useful life of cells. Is a battery especially indicated for those seeking to ride a Solar Kit Complete self-consumption, since its 48 V nominal voltage is the standard used by most residential systems and small current commercial facilities. For those looking for more compact storage solutions or simplified installation, in Tienda Solar you will also find alternatives like Batteries Plug & Play, designed for a rapid startup without renouncing the performance of a modern lithium battery.

Recommended loading method

To ensure maximum performance and maximum battery life, the manufacturer recommends a loading process in two stages:

1. Constant current stage (CC): load 90 a constant current until reaching the 54 V.
2. Constant voltage stage (CV): the load is maintained 54 V constants until the load current descends 15.7 a, at which time the load is considered complete.

Following this cargo protocol is essential to preserve the health of lithium cells and ensure that battery reach or exceeds 6000 cycles of life specified by the manufacturer.

Detailed technical characteristics

Product identification

• Type of battery: Lithium battery (Lithium-ion)
• Model: Vt-91600
• SKU: 12684

Electrical specifications

• Nominal capacity: 200 ah
• Nominal voltage: 48 V
• Nominal energy: 9.6 kwh
• Standard load current: 90 a
• Standard discharge current: 90 a
• Maximum continuous load current: 100 a
• Maximum continuous discharge current: 100 a
• Standard load voltage: 54 V
• Upper load limit voltage: 54 V
• End of discharge voltage: 40.5 V
• Communication interface: Can
• Internal resistance: 16 mΩ

Mechanical specifications

• Dimensions (background × width × high): 505 × 490 × 228 mm
• Degree of protection: Ip20
• Battery structure: 15 in series, 1 in parallel (15S1P)

Environmental specifications

• Charging temperature range: 0 ° C to 60 ° C
• Discharge temperature range: -20 ° C at 60 ° C

Performance specifications

• Useful life (cycles @ 25 ° C, 90% DOD): ≥ 6000 cycles
• End of useful life (@ 25 ° C, 70% EOL): ≥ 6000 cycles

Frequently Asked Questions (FAQ)

1. What is the capacity and real useful energy of the Battery VT-91600? Battery VT-91600 (SKU 12684) offers a Nominal capacity of 200 AH a 48 V Voltage, what is translated into a Nominal energy of 9.6 kWh. This capacity is ideal for both residential facilities and projects with higher storage needs.

2. With what inverters Is this lithium battery compatible? Thanks to its nominal voltage of 48 V and his CAN, this battery is compatible with most Inverters solar and inverters market hybrids working in this voltage range, allowing bidirectional communication between the BMS of the battery and the inverter To optimize the energy management of the system.

3. How many life cycles does the VT-91600 battery have? According to the manufacturer's specifications, the VT-91600 reaches 6000 cycles or more At 25 ° C with a depth of discharge (DOD) of 90%, maintaining at least 70% of its original capacity at the end of its useful life (EOL).

4. What degree of protection does it have and under what conditions can it be installed? The battery has a degree of protection Ip20, so it is designed for indoor, protected humidity and water entry facilities. Its operating temperature range at download is -20 ° C at 60 ° C, while in load it is 0 ° C to 60 ° C.

5. How should the VT-91600 battery be loaded correctly? The manufacturer recommends a load method in two stages: first to 90 a constant current to 54 V, and then 54 V constant voltage until the current descends 15.7 a. Respect this process is key to maximize the useful life of the battery and the rest of your system of lithium batteries.

6. What internal configuration does the battery have and why is it relevant? The VT-91600 is composed of a configuration of 15 Cells in series and 1 in parallel (15S1P), managed by an integrated BMS that individually monitors the voltage and temperature of each cell, thus guaranteeing a safe and balanced operation throughout the life of the product.

Do you have questions about which battery best suits your installation? On Tienda Solar You will find a complete catalog of storage solutions, and in our Blog Tienda Solar You can consult purchase guides, technical advice and all specialized knowledge prepared by our team of Solar Energy Experts.
