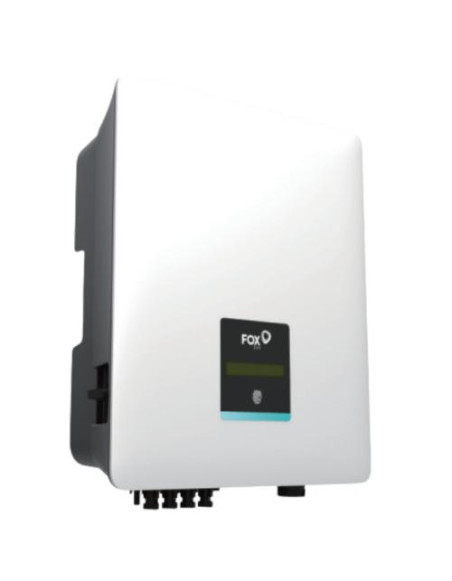

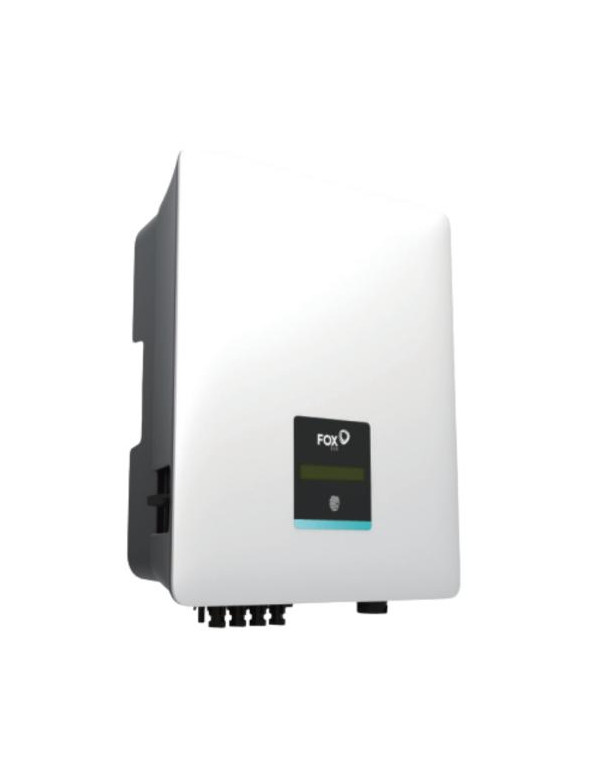

Inverter Three-phase network Fox ESS T3-G3 3000W Double MPPT WIFI

Fox ESS T3-G3: Residential three-phase efficiency and third-generation photovoltaic performance

The optimization of energy costs in the home through a three-phase system requires components capable of offering maximum low powers stability. The inverter three-phase Fox ESS T3-G3 answer this challenge integrating third-generation engineering (G3) oriented to squeeze each sunbeam. With a nominal output power of 3KW, the device stands out for its sophisticated power stage that achieves a maximum efficiency of the 98.60% (97.80% European efficiency). Its design optimizes production starts thanks to a threshold of solo 140v, allowing solar plates to begin to inject clean electricity to the network long before others inverters of the competition, significantly expanding the useful hours of daily generation.

Independent Double MPPT for a flexible Strings design

Despite being the model of access to the three-phase range, this team does not cut out in performance and integrates 2 independent MPP followers with a configuration of 1 String by Tracker. By allowing an identical operating range of 140V to 1000V, Installers can design independent series in roofs with different orientations (such as East-West Combined Tilt). Each MPPT is prepared to manage 14th input current and up 18th short circuit, what is valid for its direct compatibility with the modern monocrystalline modules of large format without experiencing losses for power cut (clipping).

IP65 reliability and mechanical integrated security

Long-term durability is a structural priority in Fox ESS T Series. This inverter dispenses completely from external fans, relying their thermal control to a system of natural Convection Refrigeration high dissipation. This not only eliminates the need for technical maintenance by wear, but reduces the level of operational noise below the 30 dB. In addition, his robust chassis with degree of protection IP65 it comes equipped as standard with a total electric shield: overvoltage protection through integrated SPD II dischargers both on the CC side and AC, Isolation monitoring, Anti-island protection and short-circuit protection in AC.

Featured technical characteristics:

• Nominal output power: 3000 W with a maximum apparent power output 3300 VA.
• Maximum power of the solar field: Admits a field of photovoltaic up 4500 WP.
• Max input voltage DC: 1100 V with a nominal operating voltage of 620 V.
• MPPT operating voltage range: Broad-range 140 V at 1000 V with boot 140 V.
• Maximum current of entry PV: 14 a per follower Short circuit current 18.2.
• Number of Followers MPP: 2 independent MPPT with 1 String by Tracker.
• Conversion efficiency: Maximum efficiency 98.60% and European efficiency of the 97.80%.
• Internal topology: Efficient architecture without transformer (transformerless).
• Structural and thermal design: Passive cooling natural convection and sound level less to 30 dB.
• Dimensions and weight: Compact body 370 x 480 x 183.5 mm with a net weight of 17 kg.
• Safety and SPD: Protections SPD Type II (DC and BC), residual current monitoring and anti-island serial.
• Serial connectivity: Integrated interface for WiFi / LAN and remote monitoring.

Frequently asked questions (FAQ):

1. The inverter FOX ESS T3-G3 supports direct battery connection?

No, this model of the T Series range (G3) is a inverter of pure three-phase network (on-grid) designed to inject energy directly to consumption or electrical network. However, it incorporates technology Upgradeable, which means that it is fully prepared to update and integrate storage in the future using additional AC coupling equipment from Fox ESS.

2. What advantages does 2 independent MPPT provide in a inverter of 3kw?

When integrating 2 independent MPPT, You can divide the Solar field into two different orientations or inclinations (for example, a two-waters and west watershed). In this way, the loss of production or partial shading that affects one of the series will not harm at all the photovoltaic performance of the other series.

3. Is it compatible with the modern high power solar?

Yes, it is fully compatible. The inverter tolerate a 14A maximum entrance current and admits a short circuit current of up 18.2a per follower, Ideal technical values to work safely with the powerful cells and large monocrystalline modules cells.

4. What kind of maintenance does your refrigeration system require?

None. The T3-G3 model uses a method of natural Convection Refrigeration. By not incorporating external mechanical fans that accumulate dust or suffer friction wear, the inverter opera free maintenance and with a noise lower than 30 dB (totally silent).

5. How are the remote monitoring functions of this equipment are configured?

The inverter includes connectivity WiFi serial. Once linked to the housing router, it constantly sends energy production data to the Foxcloud V2.0 cloud platform, allowing to control photovoltaic performance graphs in real time from the mobile application or the web.
