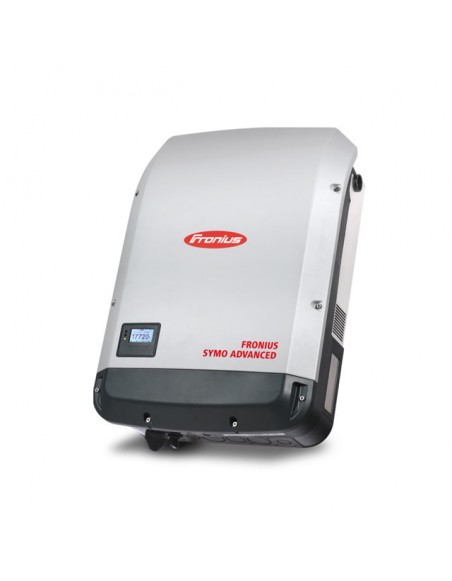

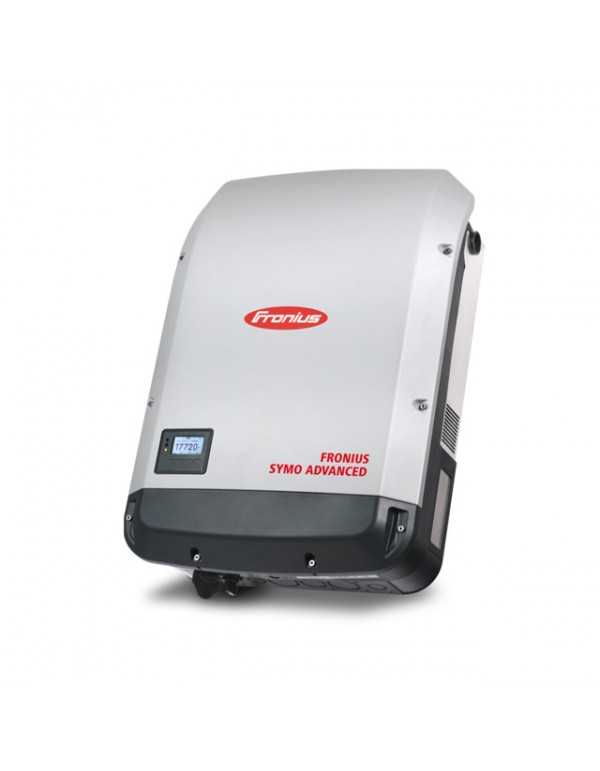

Inverter Solar Fronius Symo 12.5kw -3-M Light
Inverter Solar Fronius Symo 12.5kw -3-M Light

Inverter Solar Fronius Symo 12.5kw -3-M Light

FS125-FL
€2,290.78
Tax included

Inverter Solar connection network Fronius Symo of 12500W three-phase

The line of inverters brand Fronius Symo of pure sine wave, offers superior performance for three-phase residential and commercial facilities. The inverters Symo for using transformer-free technology, Internet connection via WLAN or Ethernet cable without additional elements

The robust electronics and the mechanical design of the Austrian brand make the inverters Fronius Symo the best option in reliability. Designed for a long life with short-circuit protection and high temperature Fronius Symo is a safe option for any solar installation you want to operate for many years. 7 Year Product Guarantee and CE Certificate



The Inverter solar Fronius of the Symo series is a inverter Three-phase (unlike their cousin siblings) of connection to non-transformer network that allows synchronization of solar installation with the three-phase electrical network.

All models of the Symo series of Fronius They incorporate two MPpt's (higher power point tracking) and have IP65 degree of protection. The models of inverter Solar Symo Lite / Light do not incorporate WLAN communications for remote management and monitoring unlike Full models of the same series. The inverters Solar Symo Solar have a standard internet interface through a WLAN or Ethernet cable easily. The Fronius Symo include DataManager and free connection to the Solaroweb portal which allows to monitor the three-phase solar installation clearly and remotely.

The inverters solar Fronius Symi has a zero network injection system which allows us to decrease the power of the inverter To avoid pouring energy to the network in the event that the solar installation produces more electricity from which is being consumed.

The main advantages of Symo Series of Fronius are:

  • - Snapinverter technology: the inverter Solar Primo is coupled in the fixed wall bracket. In case of service it is not necessary to remove all inverter, but only the power stage to access the interior of the device. All wiring is maintained in place to be able to manipulate easily and quickly the connection of the inverter
  • - Integrated data communication: the inverter Primo can be connected to the Internet using WLAN, Ethernet without the need for additional modules. Can be connected via Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON).
  • - Smart Grid Ready: The inverter solar Fronius From the Primo series it is prepared to connect to the SMART Grids so that they can remotely control the active and reactive energy injected to the network.
  • - Dynamic Peak Manager: new monitoring algorithm of the highest power point for each MPPT. The Dynamic Peak Manager is responsible for making a sweep of the I-V curve every so often to find the best work point
  • - Active Cooling: The Symo Series has a ventilation system that refirms the internal circuit of the inverter Improving your performance and the useful life of your electronics.

- -

General characteristics of the inverter:

Model

Symo 12.5 3-M-Light

Maximum input power (W)

18800 W

MPPT

2

Efficiency

97,6%

Guarantee product

2 years

Dimensions

72.5x54.0x22.5 inches

Protections

Ip66

Weight package (kg)

34.8 kg

Power (kW)
10 - 14.9
Phase Type
Three-phase
Max Current Input (A)
20+
