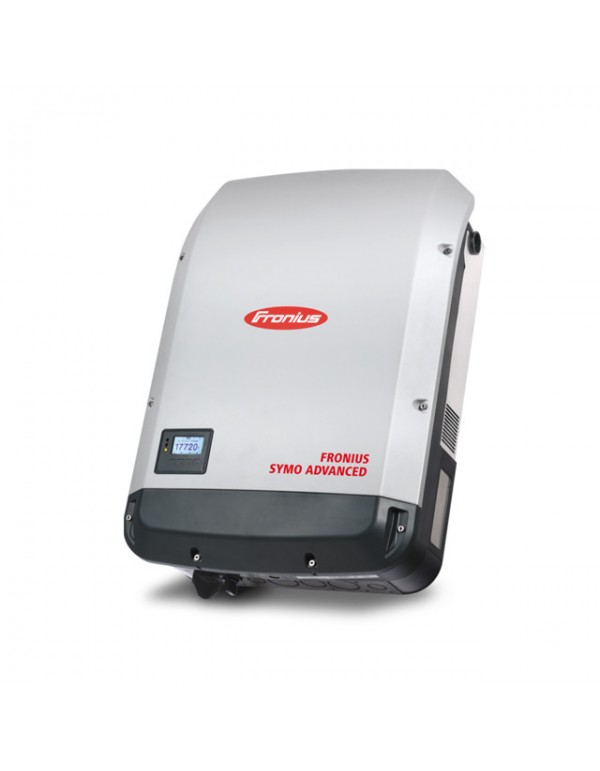

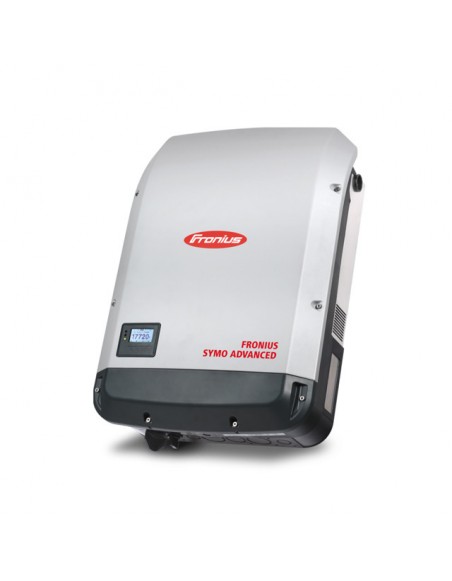

Inverter Solar Fronius Symo 20kw -3-M Full | Inverters Three-phase solar high capacity commercial

Fronius Symo 20kw Full: Advanced industrial power for your solar panels

The investment in a commercial photovoltaic plant of 20kw It requires a core of electrical conversion with the maximum resistance and stability of the market. The inverter networking Fronius Symo 20.0-3-M Full It is the ideal brain for these configurations, taking care of high volumes of clean energy to massively move the consumption of the network and sink the operating costs of your company.

Full digital supervision with Native Solar.Web

Unlike other market options that require separate payment communication gateways, inverters solar Fronius in their variant Full They integrate all communications hardware. The equipment connects wirelessly (WLAN) or by network cable (Ethernet) to automatically send all metrics to the free portal Fronius Solar.web. This allows you to audit the millimeter the performance of your solar panels And cross the data with the demand of your machine in real time from any mobile device.

Flexibility Snapinverter and efficient response before shadows

On Tienda Solar We value engineering solutions that simplify technical maintenance. The patented system Snapinverter divide the inverter in a fixed wall bracket (where all the direct current wiring of the solar) and the power stage. Any subsequent technical intervention is rapidly executed, safely and minimizing production stops. In addition, your integrated algorithm Dynamic Peak Manager Continuously monitor the power curve to dodge the impact of partial shadows (caused by chimneys, ventilation ducts or clouds), ensuring that the system always work at its optimal point.

Technical specifications (Symo 20.0-3-M Full model):

• Nominal output power (AC): 20,000 W (20 kW)

• Maximum input power (DC): 30,000 W (allows an excellent margin to oversize the field of solar)

• Number of MPPT followers: 2

• Start voltage (DC): 200 V

• Nominal input voltage (DC): 595 V

• Maximum input voltage (DC): 1,000 V

• Maximum input current (MPPT1 / MPPT2): 33.0 A / 27.0 A (prepared for high current chains)

• Short circuit current (MPPT1 / MPPT2): 49.5 A / 40.5 A

• Nominal output current (AC): 28.9

• Synchronized network voltage: Three-phase (380V / 400V)

• Degree of protection: IP65 (suitable for assembly to the weather in demanding climates)

• Integrated connectivity: DataManager, WLAN, Ethernet, Interfaces Modbus TCP / RTU and Fronius Solar API

• Refrigeration technology: Forced ventilation regulated by temperature (Active Cooling)

• Net weight of the team: 43.4 kg

Frequently Asked Questions (FAQ)

1. What is the difference to the Symo 20kw "Full" model of the rest of the industrial range? The model Full It comes from the factory ready to connect to the Internet without extra costs, as it includes the DataManager data card. If you are going to install multiple inverters solar Fronius In the same ship, you only need the first to be the Full version to centralize the communications of the entire plant.
2. Can I connect industrial lithium batteries to this inverter of network connection? Not directly. The range Fronius Standard Symo operates under the pure network connection modality. If you need an accumulation project with lithium batteries On a large scale, get in touch with the technical team of Tienda Solar To design a custom coupling in alternating current (AC).
3. How does Zero injection work in 20KW plants? In ships where pouring permissions are in process or denied, inverter Solar adjusts its production of electricity in fractions of a second to cover only the active consumption of the company, completely avoiding exporting surpluses towards the external electrical network.
4. Why is active cooling crucial in this power block? By transforming 20,000w energy continuously, electronics generates heat. The system Active Cooling Use intelligent internal fans that actively dissipate the temperature, preventing overheating failures (derating) and multiplying the useful life of these inverters solar.
