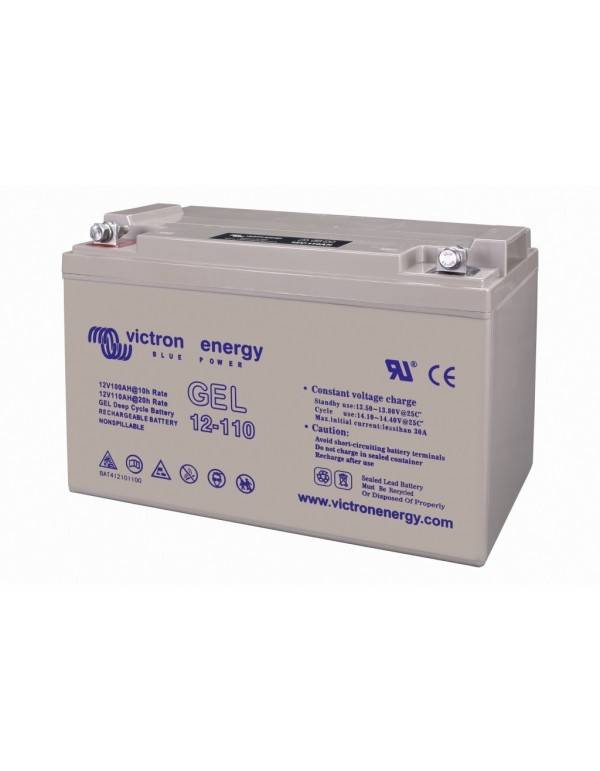

Deep Cycle Gel Battery Victron 12V 110AH BAT412101100

Victron Gel V110G: Hermetic monobloc storage VRLA, high resistance to deep cycles and efficient copper connectivity M8

The design of isolated photovoltaic systems or critical backup networks requires chemical accumulators capable of supporting recurrent deep discharges without suffering premature degradation of their cells. Battery Victron Gel v110g it is positioned as one of the most reliable solutions of the residential and nautical sector, combining the robustness of high purity lead alloys with the physical stability of a fully immobilized electrolyte.

Garled electrolyte of great stability and optimized thermal connectivity

Unlike the open-acid-open accumulators that suffer from acid stratification and evaporated liquid loss, this model of Victron it encloses the electrolyte in the form of a dense gel regulated by safety valves (VRLA). This physical composition prevents leakage in any position and optimizes internal thermal dissipation, drastically extending the useful life of the block in daily work cycles.

In addition, instead of using the classic conical terminals prone to false contacts by sulfation, this range integrates copper flat terminals for bolts M8. Copper raises conductivity and minimizes resistance at the point of union, which avoids heat losses and increases the overall performance of the storage bank. If you are planning an autonomous installation on roof and are looking for a robust fixing base for your photovoltaic collectors, you can provide the system of an excellent mechanical resistance integrating structures for aluminum high quality.

Minimum autodescar and fire-retardant chassis certified

Thanks to the purity of its manufacturing materials, the Victron Gel v110g has a extraordinarily low self-discharge rate. It can remain stored for long periods of time without the need to receive constant floating loads, consolidating as an unbeatable option for seasonal use housing, telecommunication stations or emergency systems.

The security of the domestic environment is backed by a rigid container manufactured in acrylonitrile butadiene styrene (ABS) With flame retardant properties and high impact resistance, strictly complying with international UL and EC regulations. To recharge these blocks efficiently by direct solar energy in isolated residential locations, many users choose to configure their solar gardens with solar high performance monocrystals. Similarly, if your project evolves towards an interconnected urban solution with injection to the electricity grid to reduce monthly invoices, you can manage power flows by replacing traditional regulators by inverters networking of the latest technological generation.

Featured technical characteristics:

• Commercial model: Victron Gel V110g.

• Manufacturer's reference: Bat412101100.

• Nominal system voltage: 12v.

• Storage capacity: 110 ah in C20 regime.

• Chemical technology: Gel-up electrolyte of deep cycle (VRLA without maintenance).

• Mechanical connections: Copper flat terminals suitable for m8 bolts.

• Container material: ABS chassis resistant to fire (flame retardant).

• Physical dimensions (high x wide x deep): 330 mm x 171 mm x 220 mm.

• Net weight of the block: 33 kg.

• International Certifications: CE and UL regulatory compliance.

• Official guarantee: 2 years of global coverage provided by Victron.

FAQ Section (Frequently Asked Questions)

1. What actual performance difference offers this gel battery against a conventional open-acid battery? The main difference lies in maintenance and life under deep cycles. As the electrolyte be hermetically sealed and sealed, the Victron Gel V110G does not suffer from water evaporation or acid stratification, completely eliminating the need to review or fill in its internal levels. Additionally, it resists much better the chemical damage derived from deep and repeated downloads, providing a number of superior life cycles in autoconsure installations facing open lead.
2. Why is it an advantage that includes M8 copper flat terminals instead of lead terminals? Copper has a significantly higher electrical conductivity to lead. By including M8 copper flat terminals, the internal resistance is reduced at the point of contact, decreasing the voltage drops and eliminating the risk of overheating by high current intensities. In addition, it allows to become the installation cables by pockets directly and firmly, guaranteeing a fixed mechanical connection that does not loosen with the vibrations.
3. How much time can this battery stay stored without saving damage by download? Thanks to the use of high purity lead-calcium grids, this model exhibits an extremely low self-discharge rate. This means that you can spend several months stored or with the solar installation off (for example, in second residences during the winter) without suffering deep sulfation, keeping its capacity intact for the moment the loading system is reactivated.
4. Is it safe to install the Victron Gel v110g inside a camperized van or domestic cabin? Yes, it is completely safe. Being a hermetic VRLA battery, the gases generated during the loading process are automatically recombined automatically. It does not emit harmful vapors or corrosive gases to the atmosphere, and by containing free liquid, it does not have risks of leakage or spills, allowing its placement in closed interior spaces or habitable areas.
5. What precautions should be taken into account when configuring the charger or inverter for this monobloc? It is essential to adjust the loading parameters of the regulator or the inverter charger in the specific profile for gel batteries. This implies that the tensions in the absorption phase should be strictly limited to the ranges indicated by the manufacturer (usually between 14.1V and 14.4V for 12V systems) and the equalization function must be deactivated completely. An excessive voltage could open the safety valves, releasing gas and drying the gel irreversibly, which would ruin the battery.
