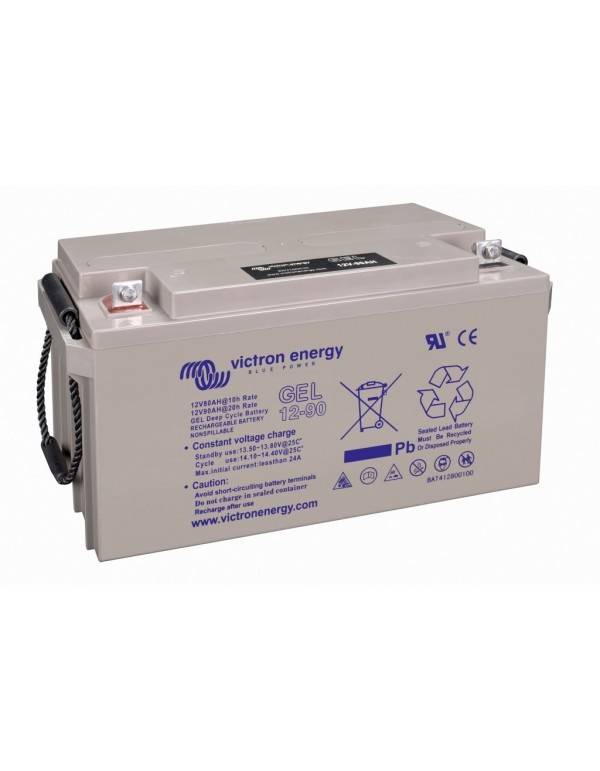

Battery Monobloc of deep cycle gel Victron 12V 90AH BAT412600100 | High energy retention and copper terminals M8

Victron Gel V90G: Hermetic monobloc accumulator free of maintenance, minimum self-discharge rate and high security chassis with CE certification and UL

Energy storage in remote locations or critical systems requires stable chemical components that support deep discharge cycles without prematurely degrading their useful capacity. Battery Victron Gel V90g it belongs to the prestigious Deep Cycle range of the Dutch manufacturer, consolidating as a reference option thanks to the use of first cast materials and an airtight design regulated by safety valves (VRLA).

Gelled electrolyte against stratification, connectivity M8 and high retention

The main constructive advantage of this block lies in the immobilization of the electrolyte in the form of a gel. This technology prevents acid stratification and minimizes internal evaporation, allowing lead plates to work under optimal conditions throughout their operational life. Thanks to the special alloy of its internal grilles, it exhibits a low internal resistance, which translates into a self-cargo rate exceptionally low. It can remain stored for months without losing its effectiveness, a suitable quality for second residences or emergency systems of seasonal activation. If you are planning a fixed installation on the roof of a single-family home or rural house, we suggest you review our selection of structures for aluminum with universal anchors.

Instead of traditional conical terminals prone to mechanical wear or false contacts, the range Victron Gel incorporates copper flat terminals for bolts M8. This design drastically improves the conductive contact surface, reduces voltage drops at the tightening point and simplifies the interconnection of cable terminals. For those users who seek to configure more compact or laptop generation systems for domestic self-consumption, we recommend that you examine the versatility of our solar kits last generation clip art.

ABS chassis resistant to fire and certified security worldwide

Structural security is a fundamental pillar in this accumulator. The battery is protected by an acrylonitrile container butadiene styrene (ABS) High resistance to impact and with flame retardant properties, strictly complying with international UL and EC security regulations. With very balanced dimensions (350 mm long, 167 mm wide and 183 mm highAnd a net weight of 26 kg, it is very simple to integrate into residential benches, telecommunications cabinets or stannial compartments.

The total sealing of the block allows to install it in habitable environments with total tranquility, since it does not produce emissions of harmful gases to the atmosphere. To constantly feed this type of accumulators through direct uptake of clean energy in your home, we invite you to consult the variety of our category of solar high performance monocrystals. Similarly, if your project contemplates direct injection to the distributor lines to reduce the monthly invoice by supporting independent modular solutions, you can inform you in our menu of microinverters efficient.

Technical specifications (model Victron Gel V90G):

Electrical and performance data:

• Nominal block of the block: 12 V.

• Nominal capacity in C20 regime: 90 ah.

• Electrolyte technology: Gelled of a deep cycle.

• Autodescarga rate: Extremely low (thanks to its high purity lead-calcium grilles).

• Maintenance: Fully maintenance-free (VRLA hermetic structure).

Physical and connection specifications:

• Commercial reference of the manufacturer: Bat412600100.

• Type of connection terminals: Copper flat terminals for M8 bolt (integrated screw terminals).

• Outside housing material: ABS Fire resistant (flame retardant).

• Block length: 350 mm.

• Block width: 167 mm.

• Block height: 183 mm.

• Net weight of the team: 26 kg.

Certifications and guarantee:

• International approvals: Strict compliance with UL and EC regulations.

• Manufacturer's coverage: 2 years of official guarantee Victron with Global Support.

Frequently Asked Questions (FAQ)

1. What real advantages offer gel technology of this battery Victron faced with traditional open-acid-length? Gel technology immobilizes the electrolyte in the form of dense gel and seals the battery hermetically. Unlike open-acid-open models, the Victron Gel V90G does not require that the levels of water distilled in all its useful life are restrained or refilled, completely eliminating maintenance tasks. In addition, when recombining gases internally, it does not emit harmful vapors to the atmosphere, it is totally safe against acid leaks and tolerate the repeated deep discharge cycles without losing capacity.

2. Why are the M8 copper flat terminals that includes this model beneficial? The M8 copper plane terminals eliminate the need to add traditional lead conical births. Copper has an electrical conductivity much higher than that of lead, which reduces internal resistance at the connection point, prevents high intensity heating and optimizes the passage of energy. When the flat cable terminal is screwed directly on the battery thread, a perfect mechanical fixation is achieved that does not loosen before light vibrations, guaranteeing optimal contact.

3. What does it mean that a gel battery has a low self-discharge and how long can it be stored? Self-discharge is the natural process by which a battery loses part of its accumulated energy when it is saved without use. Thanks to the extreme purity of its lead-calcium grids, the Victron Gel V90G Just loses a small percentage of its capacity per month. This allows you to leave the installation of a weekend home or a backup system disconnected for several months in a row without the battery with chemical damage by sulfation, keeping your health intact when you turn on the system.

4. What kind of investment or regulation equipment are recommended to load this monobloc? To ensure a long operational life of this monobloc, it is essential that the charger or solar controller has a specific load profile for gel batteries. The load voltage in the absorption phase must be strictly adjusted between the recommended values (usually between 14.1V and 14.4V), avoiding high equalization voltages of the open lead, since an overpressure would open the valves Internal security, causing the gel to dry irreversibly. If you want to configure a powerful isolated network with this storage, we suggest you review our section of inverters hybrid of low voltage.
