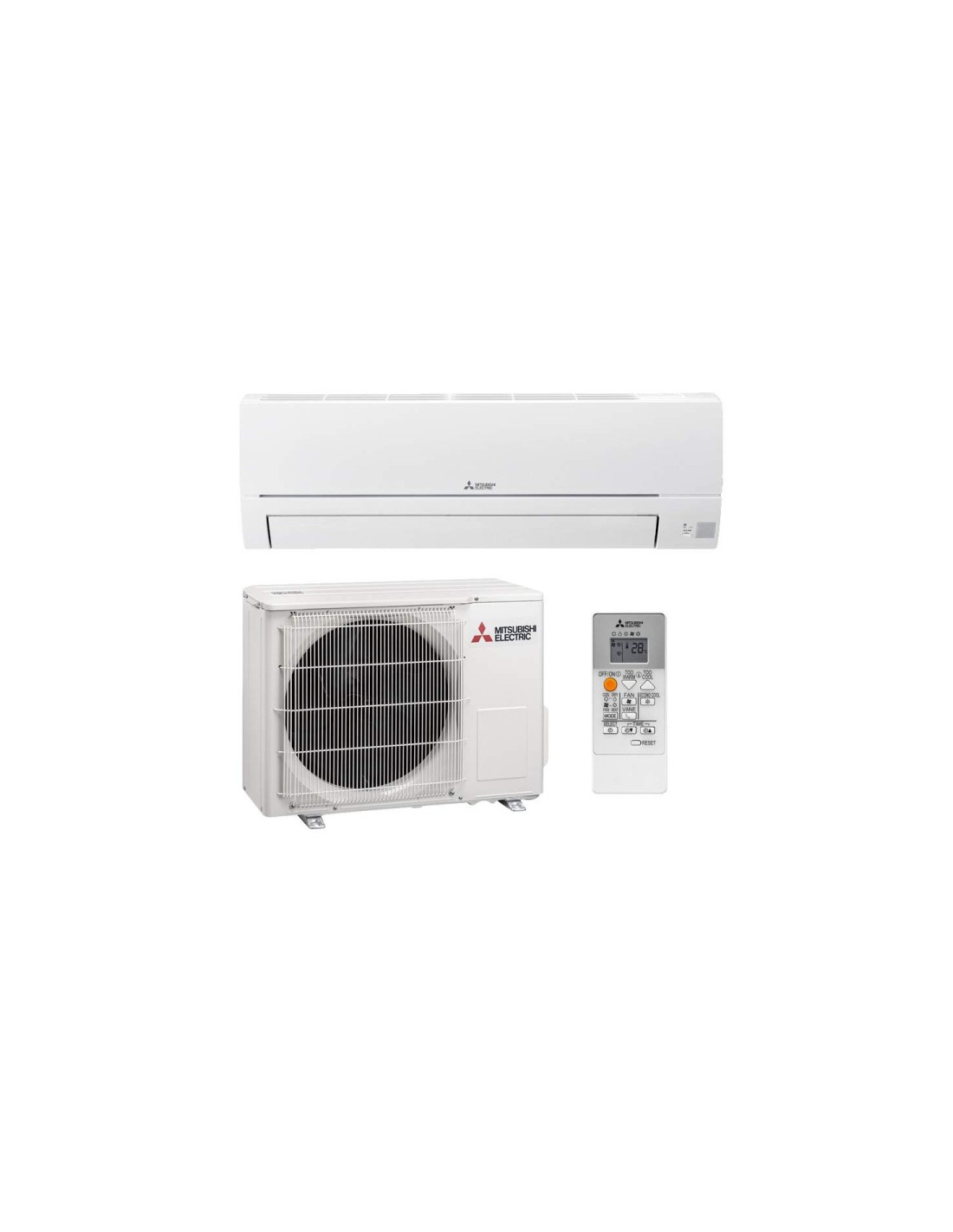

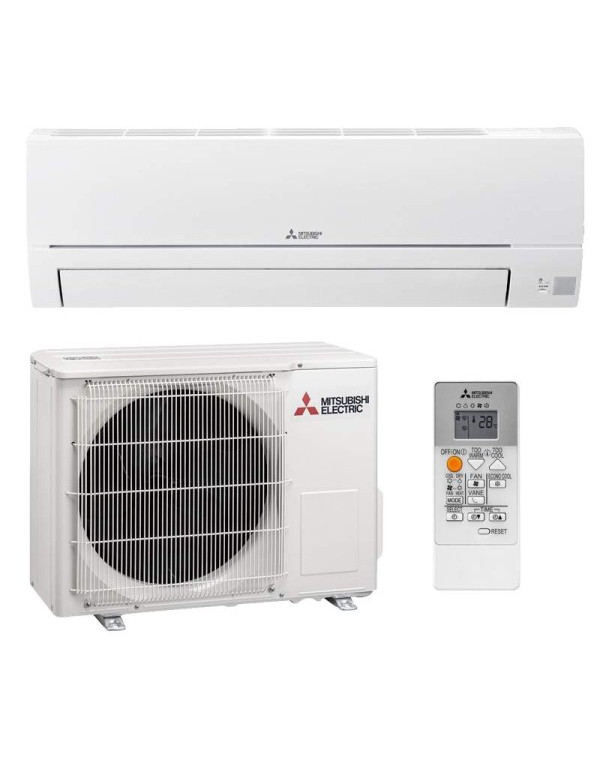

Air conditioning Mitsubishi MSZ-HR35VFK WIFI

A more power step inside the HR series

The MSZ-HR35VFK is located just above the MSZ-HR25VFK, offering 900W additional nominal cold capacity (3,4kw versus 2,5kw) maintaining exactly the same Seer of 6.2, so energy efficiency is not penalized when choosing this option of greater power. This makes it the option indicated for slightly larger stays than a small bedroom, such as offices or rooms with the highest surface.

Interestingly, the SCOP in warm climate area (5,2) It is slightly lower than that of MSZ-HR25VFK (5,3), a minimum difference that does not significantly affect seasonal performance in heating for temperate climates such as the large part of Spain. Complement this equipment with the energy of your solar It allows reducing the cost of air conditioning, especially in the hours of greater solar production coinciding with those of the highest refrigeration demand.

Same dimensions, greater power

A practical advantage of this model is that your indoor unit keeps exactly the Same dimensions and weight that the MSZ-HR25VFK (280 x 838 x 228mm, 8.5kg), which facilitates its installation in the same type of space without the need to adapt the mounting gap, even if you choose to give the power jump.

Intelligent control from the mobile

With Integrated wifi, the MSZ-HR35VFK allows to control the temperature, operating modes and schedule schedules directly from the smartphone, without the need for additional modules.

Detailed technical characteristics

Capacity and performance:

• Nominal cold (min-max): 3,4KW (0.9-34kw)
• Nominal heat (min-max): 3,6KW (0.9-3,7kw)
• Cold capacity: 2.924 Kcal / h
• Capacity in heat: 3.096 kcal / h
• Cold nominal consumption: 1,21kw
• Nominal consumption Heat: 0,975kw
• Annual electrical consumption (cold): 191kwh / year
• Annual electrical consumption (heat, intermediate zone): 781kwh / year
• Annual electrical consumption (heat, warm zone): 344kwh / year
• EER / COP: 2,81 / 3,69
• Seer (Label): 6.2 (A ++)
• SCOP Intermediate Zone (Label): 4.3 (a +)
• SCOP CLEAR ZONE (tag): 5.2 (A +++)

Indoor unit:

• Air flow (Silence / low / medium / high / maximum): 3.6 / 5.6 / 7.8 / 11.7 m³ / min
• Sound level (silence / low / medium / high / maximum): 22/31/38/46 dB (A)
• Sonora power: 60db (a)
• Dimensions (X an X FO): 280 x 838 x 228mm
• Weight: 8,5kg

Outdoor unit:

• Air flow: 32.2 m³ / min
• Sound level: 51db (a)
• Sonora power: 64db (a)
• Dimensions (X an X FO): 538 x 699 x 249mm
• Weight: 24kg
• Coolant: R32, 0.45kg (PCA 675, 0.30 TCO2EQ)
• Tension / phases - Maximum intensity: 230v / 1 - 6,7
• Diameter Pipes (Liquid / Gas): 6.35 / 9,52mm
• Maximum tubing length (vertical / total): 12 / 20m
• Outdoor operation range (refrigeration): -10 ° C ~ + 46 ° C
• Outdoor operation range (heating): -10 ° C ~ + 24 ° C

Frequently Asked Questions (FAQ)

1. What surface can the MSZ-HR35VFK air climate to?
With a Nominal power of 3,4kw cold, This model is indicated for medium-sized stays, typically between 30-35m² according to isolation and orientation.

2. How is MSZ-HR25VFK difference?
It offers greater power (3.4kw versus 2,5kw cold) maintaining the same Seer of 6.2, with identical dimensions of indoor unit, so it does not penalize efficiency or occupy more space.

3. Does it include WiFi as standard?
Yes, this model incorporates Integrated wifi For control from the mobile, without the need to acquire an additional module.

4. What refrigerant gas do you use?
Employ Gas R32, with a load of 0.45kg, the standard ecological refrigerant in current domestic air conditioning.

5. Can I feed it with solar energy from my photovoltaic installation?
Yes, as a standard 230V single-phase electrical computer, you can feed on your energy solar, optimizing savings in the hours of greater production. Consult more technical content in the Blog Tienda Solar.
