Split Mitsubishi Electric MSZ-HR60VF | Air conditioning 5,200 fridge

Mitsubishi MSZ-HR60VF: Reliable and efficient solution for medium and large spaces

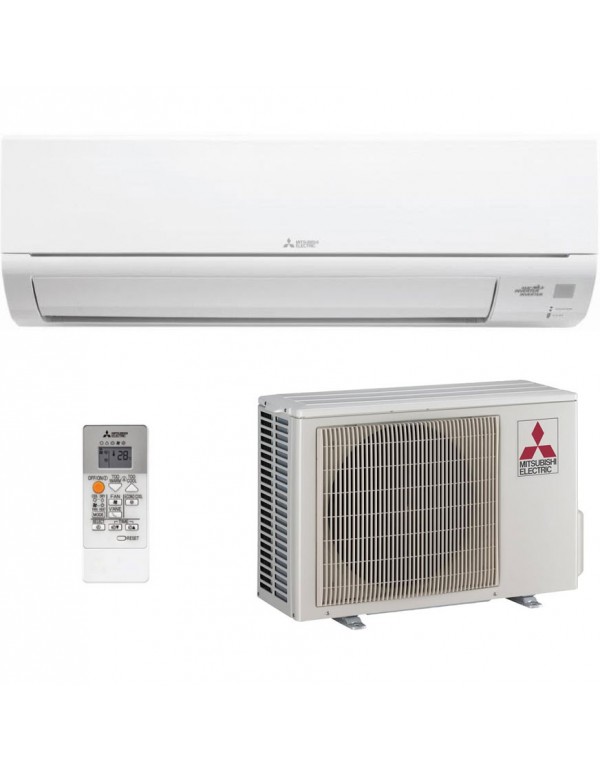

Customize wide classrooms, offices or common areas efficiently requires a computer with adequate technology to avoid consumer peaks. Split type air conditioning Mitsubishi Electric MSZ-HR60VF is the answer to this need, offering 5.246 Friends of controlled power. This system is composed of the indoor unit Msz-hr60vf and the outdoor unit Muz-hr60vf, configuring an air conditioning ecosystem that stands out for its superior durability, its low acoustic signature and optimal energy management.

Real-time inverter saving and purification with silver filter

On Tienda Solar we focus on offering solutions that optimize your daily energy consumption. Thanks to the advanced Inverter compressor Mitsubishi Electric, this equipment self-regulates its speed to maintain the desired temperature constantly, managing to reduce energy expenditure up to 80% compared to the old On / Off technology systems. If you are looking for an extra saving, its intelligent function Cool automatically adjust the movement of air deflector slats, allowing to raise the setpoint temperature in 2 ° C in cooling mode without Notes any loss of thermal comfort.

The quality of what you breathe is as important as the temperature. Therefore, the MSZ-HR60VF model incorporates a ionized filter with silver particles capable of capturing the dust in suspension, catching the common domestic allergens and neutralizing the odors of the environment. The result is a flow of purified, clean and totally healthy air for the whole family.

Remote Management Melcloud and Intelligent Air Distribution

This air conditioning is fully prepared for the digital age. Adding the optional Wi-Fi connection module, you can link the equipment to the official application Melcloud to control the ignition, turn off the split, schedule weekly schedules or set the temperature of your home comfortably from your mobile phone or tablet, no matter where you are. In addition, the optimized design of its grids guarantees a uniform distribution of air throughout the stay, eliminating the annoying direct bursts and operating at a surprisingly low noise level that starts in just 33 dB (a).

Technical specifications (MODA MSZ-HR60VF):

• Nominal cold capacity (min-max): 6.1 kW (1.7 - 7.1 kW)

• Nominal heat capacity (min-max): 6.8 kW (1.5 - 8.4 kW)

• Refrigerator capacity (cold mode): 5.246 Kcal / h (frigoriats)

• Heat capacity (heat mode): 5.848 Kcal / h

• Nominal consumption (cold): 1,81 kW

• Nominal consumption (heat): 1,81 kW

• Annual electrical consumption (cold): 305 kWh / year

• Annual Electrical Consumption - Heat (Intermediate Climate Zone): 1,631 kWh / year

• Annual Electrical Consumption - Heat (Warm Climate Zone): 754 kWh / year

• Energy coefficient Seer (cold): 7.0 (A ++ classification)

• Energy coefficient SCOP (Intermediate Climate Zone): 4.3 (classification A +)

• Energy coefficient SCOP (warm climate zone): 5.3 (A +++ classification)

• Air flow Indoor unit (silence / low / medium / high / maximum): 10.2 / 11.7 / 14.3 / 18.3 m³ / min

• Sound level Indoor unit (silence / low / medium / high / maximum): 33/38/44/50 dB (A)

• Dimensions Indoor unit (high x wide x background): 305 x 923 x 263 mm

• Weight Indoor unit: 12.5 kg

• Dimensions Outdoor unit (high x wide x background): 714 x 800 x 285 mm

• Exterior unit weight: 40 kg

• Coolant type / load: R32 (Ecological Preload of 1.05 Kg / PCA: 675 / tco₂ EQ: 0.71)

• Diameter of pipes (liquid / gas): 6.35 mm / 12.7 mm (1/4 "- 1/2")

• Maximum tubing length (vertical / total): 15 meters / 30 meters

• Operation range External temperature (refrigeration): -10 ° C up to + 46 ° C

• Operation range Outdoor temperature (heating): -10 ° C up to + 24 ° C

• Voltage / phases / maximum intensity: 230V / 1 Phase / 14.1 A

Frequently Asked Questions (FAQ)

1. For what surface or size of the room is the Mitsubishi Msz-hr60vf? With its more than 5,200 fridge (6.1 kW), this model is especially recommended to optimally climate diaphanous, small commercial premises or salons between 45 and 55 square meters, always depending on the level of isolation and solar orientation of housing.
2. Does the WiFi adapter come standard with this Split team? No, control by WiFi through the Melcloud platform is an optional functionality. If you want to control the air conditioning from your mobile device or by voice commands, you can acquire the official compatible adapter of Mitsubishi Electric in our store.
3. What benefit does the Cool Econo mode provide daily savings? Econo COOL mode performs an intelligent oscillation of the ventilation slats according to the air temperature expelled. This allows to increase the selected temperature at 2 ° C without losing freshness feel, managing to automatically reduce light consumption up to 20%.
4. Does any special maintenance require the ionized silver filter? To ensure proper air quality and maintain the high efficiency of the equipment, it is recommended to remove the filters from the indoor unit every two weeks, clean them with warm water or suck them gently to remove the accumulated dust and let them dry in the shade before replacing them.
