Inverter Single-phase SolarEdge SE2200H-N4 2200W with fixed voltage technology

SolarEdge SE2200H-N4: Optimization at the module level, 380V fixed voltage and higher efficiency of 98%

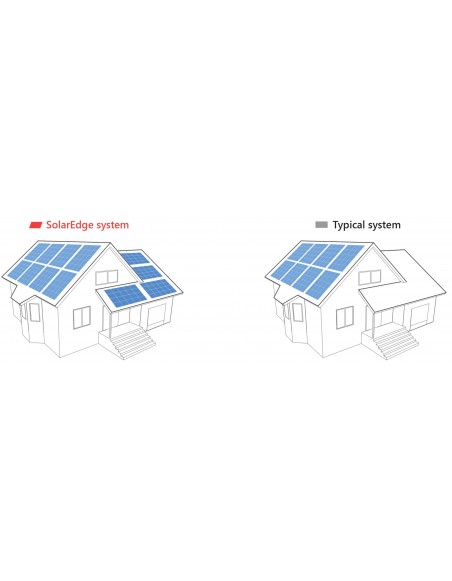

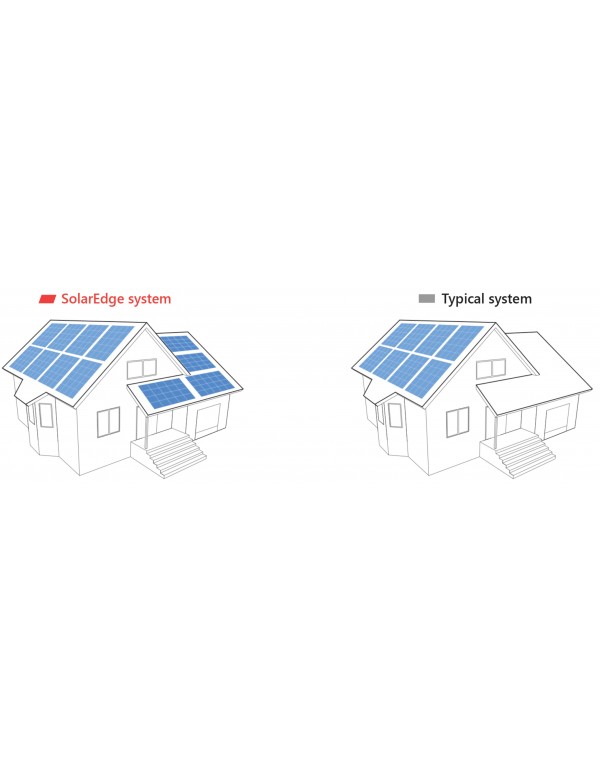

The development of residential photovoltaic self-consumption facilities in complex rooftops with multiple orientations or recurring shading problems requires technologies that exceed the limitations of the inverters of traditional string. The inverter single-phase SolarEdge Se2200h-n4 from the HD-Wave series revolutionizes the sector by delegating the search of the maximum power point to the individual optimizers installed on each plate. This allows the inverter it is concentrated exclusively on a continuous current conversion to alternating extremely efficient, clean and reliable.

Exclusive fixed voltage technology for optimizers SolarEdge

Unlike standard equipment, this inverter it does not include internal MPPT channels, but an optimized continuous current input for receiving the data bus from the signature module optimizers. Its operating principle is based on the fixed voltage technology at 380 VDC, which means that the equipment always operates constantly in its most efficient input voltage range, regardless of the variations of thermal irradiation, the number of plates connected in series or if there are modules affected by dirt or clouds.

Data communication is done through the braided direct current wiring itself (Power Line Communication), sending millimeter photovoltaic performance metrics of each plate directly to inverter. This information is processed natively through its connection Ethernet RJ45 integrated, allowing the end user and the installer to display production graphics and alerts in real time over the Internet in the Advanced Monitoring Portal of SolarEdge. If you need to robustly fix the plates associated with this ecosystem in tile or sheet tile roofs, it is essential to have structures for aluminum with high-durability modular anchors.

Smart start-up without screen, IP65 compact design and industrial robustness

The new inverters of the N4 range of SolarEdge they eliminate traditional liquid crystal screens, prone to wear by environmental conditions, replacing them with an intelligent digital assistant. The initial configuration of the system and commissioning are carried out wirelessly in a matter of minutes using an official mobile application for smartphones, streaming the installation times in a substantial manner.

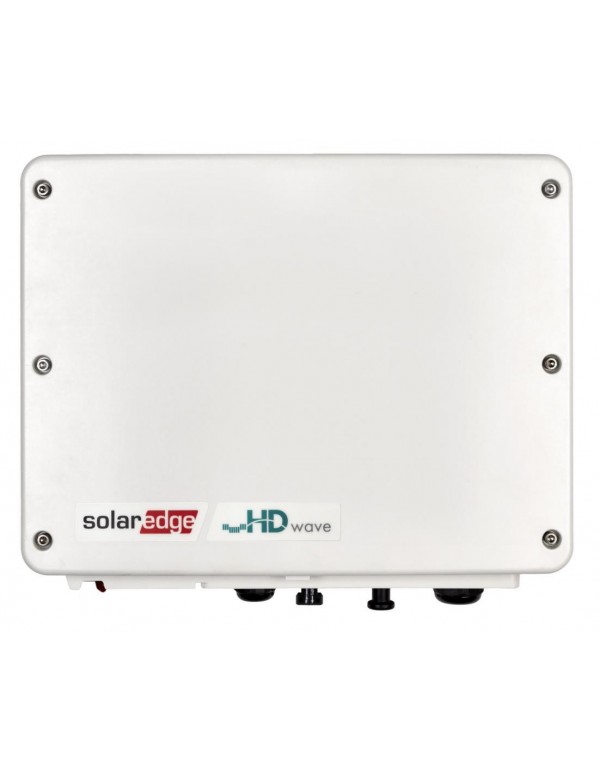

With extremely reduced physical dimensions of 280 x 370 x 142 mm and an ultralight weight of just 7.8 kg, the block can be installed by a single operator in interior or outdoor walls thanks to its chassis with sealing certification Ip65. The robustness of its internal electronics is complemented by ports for radio ripple control receptors and optional wireless interfaces (such as WiFi kits or ZigBee gateways). To feed this inverter in a balanced way and extract the maximum benefit from individual optimization, it is recommended to attach the system to solar high efficiency monocrystallines, ensuring a stable electric supply and rapid amortization.

Technical characteristics:

• Commercial model: SolarEdge Se2200h-n4.

• Nominal output power: 2,200 W (2.2 kVA).

• Type of electrical network: Single-phase (phase + neutral).

• Maximum efficiency Inverter: Up to 98%.

• Nominal input voltage CC: 380 VDC (fixed voltage technology).

• Continuous current input connections: 1 pair of fast MC4 terminals.

• Serial communication interfaces: Ethernet port RJ45.

• Wireless connectivity options: Supports expansion through WiFi kit (ant-zbwifi-kit), zigbee or mobile communications cards.

• Start-up: Digital and wireless by mobile application (N4 models without physical screen).

• Degree of environmental protection: IP65 (suitable for indoor and exterior exposed).

• Physical dimensions: 280 mm length x 370 mm Height x 142 mm deep.

• Net weight of the device: 7.8 kg.

• Standard product warranty: 12 years of factory official guarantee SolarEdge.

FAQ Section (Frequently Asked Questions)

1. Why the inverter SolarEdge SE2200H-N4 does not include MPPT followers in your technical specifications? Because SolarEdge it uses a decentralized system architecture. The function of tracking the maximum power point (MPPT) is transferred directly to the roof, where a direct current optimizer is installed below each photovoltaic module. This allows the inverter always work at an ideal 380V fixed tension, simplifying its internal electronics, dissipating less heat and achieving a conversion efficiency greater than 98%.
2. Is it possible to install and start this inverter if you do not have a physical display screen? Yes, it is extremely simple. The inverters SolarEdge from generation N4 eliminate the screen to prevent faults by weather and reduce residual consumption. The start-up is done wirelessly in a few steps connecting your smartphone directly to inverter through the official application of the manufacturer, allowing you to activate the equipment and verify the network parameters instantly.

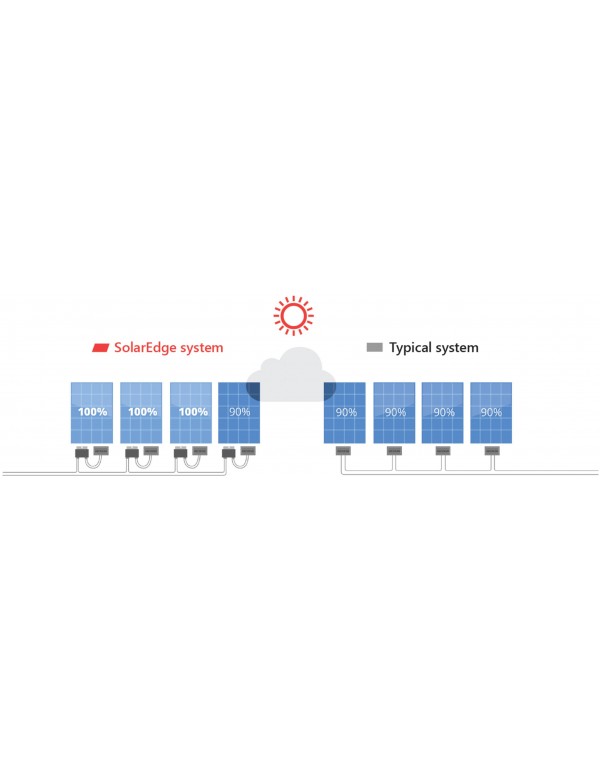

3. What happens if a solar panel of the series suffers a partial shading due to a tree or a fireplace? In a conventional Strings system, a shadow in a single panel reduces the current of the entire row at the level of the weakest plate. With the ecosystem SolarEdge, The shading panel optimizer adjusts its voltage and current individually so as not to affect the rest of the series. The other solar plates will continue to yield to 100% of their individual capacity and the inverter SE2200H-N4 will continue to receive the maximum possible energy.
4. What kind of cables and communication infrastructure do you use to monitor the production of the plates? The inverter it is communicated with the optimizers of the modules by means of the direct current power line (PLC technology), so it does not require adding additional data cables on the roof. To send those Internet data and view them in the monitoring portal of SolarEdge, you just need to connect the inverter to the local network of your home using its native RJ45 Ethernet port or adding an optional wireless communication kit.
5. Can this model be coupled directly to a battery bank to store energy? This model SE2200H-N4 is designed of origin as a inverter single-phase connection to pure network to manage instantaneous consumption loads and export surplus. If you want to incorporate lithium battery storage in your home directly or through complementary self-consumption solutions, we invite you to consult the interface compatibility or explore our section of inverters networking to configure the design that best suits your property.
