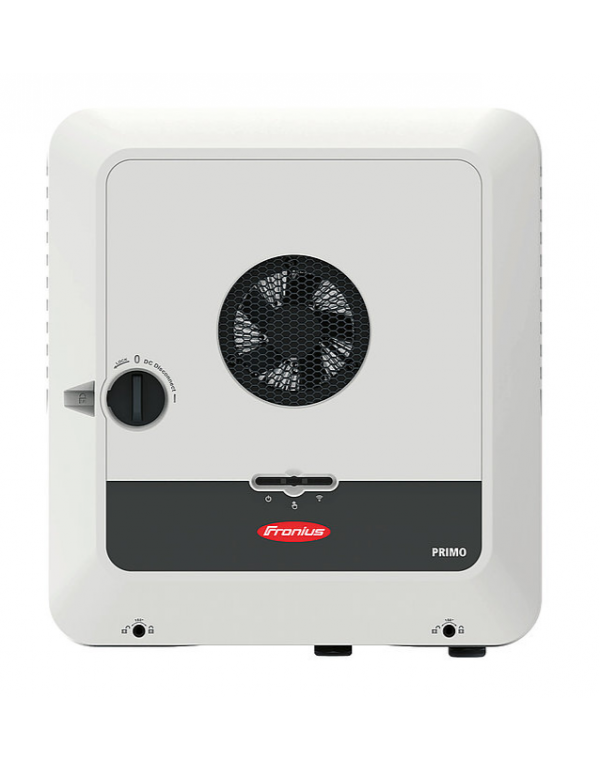

Fronius Primo GEN24 3.6kW Solar Inverter
Fronius Primo GEN24 3.6kW Solar Inverter

Inverter Solar Fronius Primo Gen24 3.6KW

FP36
€1,340.00
Tax included

Inverter network connection Fronius Single-phase 3600W cousin with back-up function

The line of inverters brand Fronius Cousin combines in the same apparatus inverter and monitoring in an apparatus with an output power of 3.6kWac. Compatible with batteries LG Chem BYD through a special update that can be purchased in www.solarweb.com/

The robust electronics and mechanical design make inverters Fronius Primo The best option in reliability for those installations connected to the network. Designed for a long life with short-circuit protection, overloads and high temperature Fronius Primo are safe option for any solar installation you want to operate for many years. 7 Year Product Guarantee and CE Certificate



The Inverter solar Fronius of the cousin series is a inverter Single-phase network connection without transformer that allows the synchronization of the solar installation with the electrical network as well as the load, download of batteries connected to the inverter.

All the models of the cousin series Fronius Incorporate 2 MPPT's (higher power point tracking) and have IP66 degree of protection. The models of inverter Solar incorporates communications for management and remote monitoring. The inverters Solar Solar Hybrid Primo Series have a standard Internet interface through a WLAN or Ethernet cable of easy integration.

The inverters solar Fronius Cousin has a zero network injection system which allows us to reduce the power of the inverter To avoid pouring energy to the network in the event that the solar installation produces more electricity than it is being consumed.

The main advantages of the cousin series and also for their hybrid brothers of Fronius are:

  • - Snapinverter technology: the inverter Solar Primo is coupled in the fixed wall bracket. In case of service it is not necessary to remove all inverter, but only the power stage to access the interior of the device. All wiring is maintained in place to be able to manipulate easily and quickly the connection of the inverter
  • - Integrated data communication: the inverter Primo can be connected to the Internet using WLAN, Ethernet without the need for additional modules. Can be connected via Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON).
  • - Smart Grid Ready: The inverter solar Fronius From the Primo series is prepared to connect to the SMART Grids so that they can remotely control the active and reactive energy injected to the network.
  • - Dynamic Peak Manager: new monitoring algorithm of the highest power point for each MPPT. The Dynamic Peak Manager is responsible for making a sweep of the I-V curve every so often to find the best work point
  • - Active Cooling: The Primo series has ventilation system that refrigerates the internal circuit of the inverter Improving your performance and the useful life of your electronics.

General characteristics of the inverter:

  • Model: Inverter Solar Fronius Primo Gen24 3.6
  • MPPT number: 2
  • Input voltage range: 65 - 600 VCC
  • Nominal input voltage: 400 Vcc
  • Maximum input current: 22/12 A
  • Maximum short circuit current: 36/19 a
  • Number of Strings by MPPT: 2
  • Dimensions: 530 x 474 x 165 mm
  • Protection class: IP66
  • Max. Performance: 97.6%

Power (kW)
3 - 5.9
Phase Type
Single phase
Max Current Input (A)
20+
