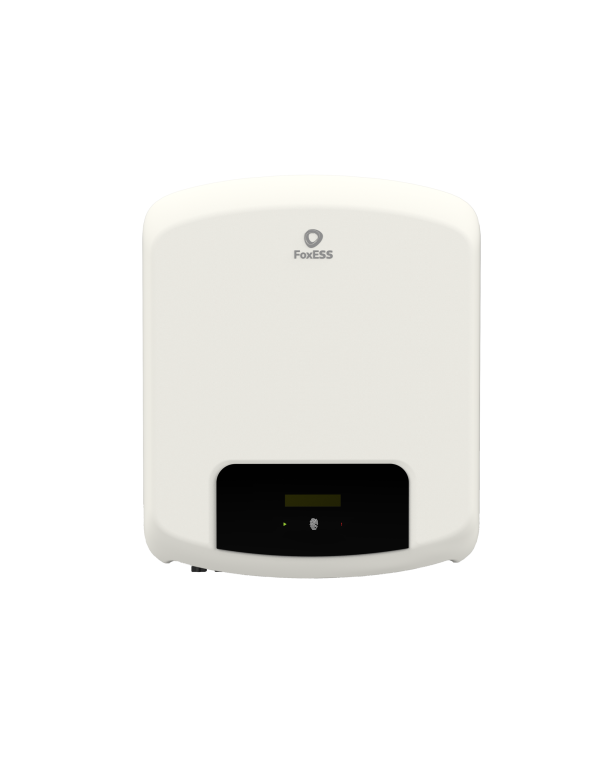

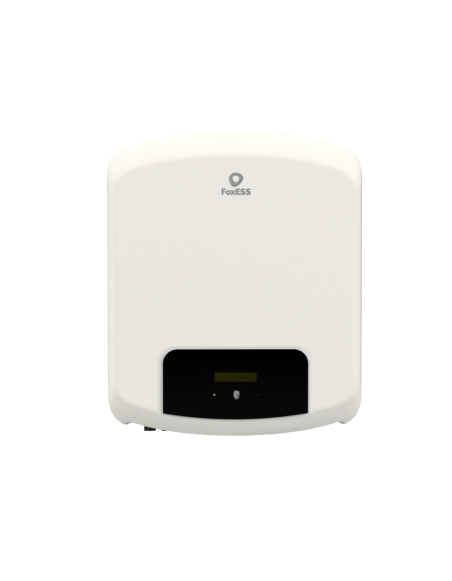

Inverter FoxESS Series F3000-2 MPPT Single-phase
F3000
€432.77
Tax included
The F series are inverters They have two MPPT to which a string can be connected for each MPPT. This will allow greater optimization of production and configurations with different orientations.
This attached to the wide range of installed power of (DC - DCT), it will allow you to have the maximum output power (AC - AC - AC - current) for a greater number of hours.
The F series has an IP65 protection rating and is ready to work with energy storage FoxESS with the use of an appropriate load controller.
All the inverters From Fox-ESS comes standard with the adapter for your WiFi connection and thus dispose of remote connection for production control.
The inverters Inverter FoxESS Series F3000-2 Single-phase MPPT are characterized by the following:
• Easy installation:Its assembly is simple and presents a flexible configuration, ready to install and easy to expand and expand.
• High voltage:Compatible with high voltage batteries to maximize global efficiency
• IP65 Classification:Durable housing with IP65 classification for maximum flexibility for indoor and outdoor use.
• High performance:The inverter solar Hybrid Fox presents a maximum performance of up to 98%.
• Safety and protection:It allows to protect your hardware and software through improved security functions.
In addition, this inverter solar includes an emergency feed in case of light cut. That is, in case of power supply, the phases or loads connected to the emergency supply continue to receive energy from the photovoltaic system or the connected storage system. With a switching time of 20 ms the hybrid Inverter keep supplying energy to your home temporarily. Optimal performance is achieved thanks to the 2 MPPT followers
The inverter solar Fox ESS can be connected to other products through intelligent interfaces: USB, CAN or RS485.
Technical sheet:
| Model: | F3000 |
| Maximum input power [W] | 4500 |
| Maximum input voltage [V] | 600 |
| Nominal entry voltage [V] | 360 |
| MPPT Operation Voltage Range [V] | 50-480 |
| Maximum input current [A] | 14 |
| Maximum short circuit [A] | 18 |
| Number of independent MPPT | 1 |
| Number of Strings by MPPT | 1 |
| Nominal output power [W] | 700 |
| Maximum apparent power output [VA] | 800 |
| Name nominal voltage [V] | 220/230/240 |
| Naminal network frequency [Hz] | 50/60 |
| Nominal output current [A] | 3 |
| Maximum output current [A] | 3.5 |
| Power factor | 1 (Adjustable 0.8 overtake at 0.8 delayed) |
| Total harmonic distortion (THDI) [%] | |
| MPPT performance [%] | 99,8 |
| Dimensions (WXHXD) [mm] | 290 * 220 * 116 |
| Weight [kg] | 5.4 |
| Cooling method | Natural convection |
| Topology | Transformer |
| Loudness [dB] | |
| Maximum operating [m] |
3000 |
|
Operation temperature range [°C]
|
-25 ~ 60 |
|
Humidity [%]
|
0 ~ 100 (without condensation)
|
| Degree | Ip65 |
| Nightly internal consumption[W] | |
| Monitoring | WiFi / 4G (optional) |
| Communication | RS485, Meter, DRM, Estop |
| Screen | LCD, TACTUAL KEYS, APPLICATIONS, SI FIRE |
| Security | EN 62109-1 / 2, BIS IS 16169, BIS IS 16221-1 / 2 |
| EMC | EN 61000-6-1 / 2/3/4 |
| Network regulation | ABNT NBR 16149, ABNT NBR 16150, C10 / 11, EN 50549-1, PN EN-50549-1, VDE V 0126-1-1, RD 1699, IEC 61727, IEC 62116, IEC 61683, IEC 60068-2-1 / 2/14/30/64, G98 |
- Power (kW)
- 10 - 14.9
- Phase Type
- Three-phase
- Max Current Input (A)
- 12 - 12.99
- Compatibility list
- BYD HVS / HVM
Dyness Tower T7 / T10 / T14 / T17 / T21
