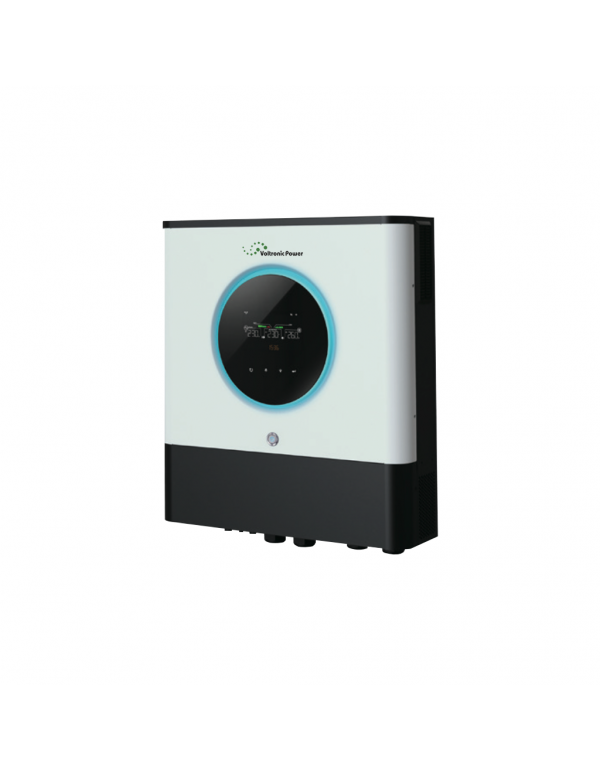

Inverter Solar Hybrid Axpert Max II 10KW-48V

Name: Inverter Solar Hybrid Axpert Max II 10KW-48V
Brand: Voltronic Power
SKU: MAXII-1000048
Price: 1200 EUR
Availability: PreOrder

Reference MAXII-1000048

€1,200.00

Tax included

Consult availability

Inverter Solar Hybrid of 10000 W and 48 V. Thanks to its great power, it is able to manage large photovoltaic installations of higher performance. It has a solar boot of up to 500VD of open circuit voltage and an abseno range of MPPT between 90 and 450VDC. The inverters Axpert Max II stand out for its power, easy management, energy management and design.

This line of inverters solar They include the UBS on-the-Go function For easy rewrite of internal parameters, data downloads and software updates. The independent battery design improves this inverter To work without the connected battery. It is also compatible with the electrical network or generator entry.

The inverters Family Solars Axpert Max II are characterized by the following:

- Customizable state LED bar with RGB lights
- Touch button with large color LCD screen of 5 ".
- Wi-Fi integrated for mobile supervision (Android / iOS application available)
- Supports the USB function on-the-go
- Event data record stored in the inverter
- Replaceable fan design for facilitating maintenance
- Independent Battery Design
- Timer of use of AC / PV output configurable and prioritization
- Selectable high power load current
- Built-in dust kit
- Parallel operation with 6 units

Technical sheet:

Model

Axpert Max II 10KW-48V

Nominal power

10000 VA / 10000 W

Parallel capacity

Yes, 6 units

Entrance

Voltage

230 a. C.

Selectable voltage range

170-280 VAC (for personal computers)

90- 280 VAC (for appliances)

Frequency range

50 Hz / 60 Hz

Exit

AC voltage regulation (Batt. Mode)

230 VAC +/- 5%

The power emerges

20000 VA

Efficiency (peak)

93%

Transfer time

15 ms (for personal computers); 20 ms (for appliances)

Wave

Pure sinusoidal wave

DC Voltage

12 VCC +/- 5%, 100W

Drums

Battery voltage

48 VCC

Floating load voltage

54 VCC

Overload protection

66 VCC

Solar charger and AC charger

Solar charger type

10000 (5000 W x 2)

Maximum power of the photovoltaic matrix

90 - 450 Vdc

MPPT Range @ Operating Voltage

500 VCC

Maximum Voltage of open matrix open circuit

27 x 2 (max 40 a)

Solar load current maxmum

150 a

Maximum AC load current

150 a

Maximum load current

150 a

Physical

Dimension, d x w x h (mm)

158.4 x 503.6 x 530.8

Net weight (kgs)

Communication interface

USB / RS232 / RS485 / WIFI / Dry Contact

Operating environment

Humidity

5% to 95% relative humidity

Operating temperature

-10 ° C to 50 ° C

Storage temperature

-10 ° C at 60 ° C

Standard

Compliance security

Power (kW): 10 - 14.9
Phase Type: Single phase
Max Current Input (A): 15 - 15.99
Compatibility list: Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
Turbo Energy (Slim)
