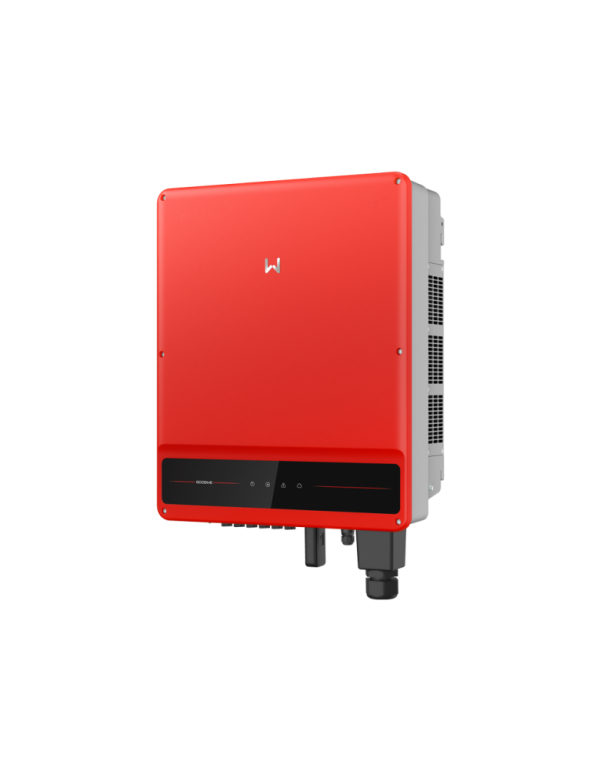

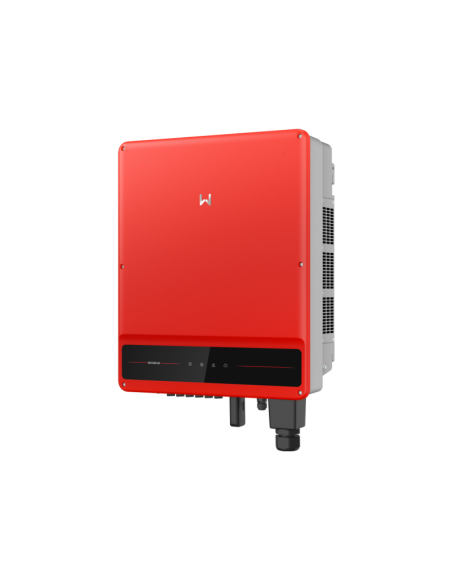

Inverter Solar GoodWe GW30K-MT three-phase

The inverters solar GoodWe From this SMT series are characterized by the following:

• They cover a high range of powers.

• Minimum start of 180V boot that allows operation from first hours of day or on days of low solar radiation.

• Maximum efficiency of 98.8%

• Solid condenser, design without fuse and an optional AFCI function.

• 30% photovoltaic oversizing.

• 10% output overload

• IP65 protection which provides you with tightness in front of moisture and dust, and allows you to be installed inside or outside the house.

• Light design of only 40 kg.

New features that guarantee a longer lifespan and a greater degree of operational safety.

Technical sheet:

Nominal input voltage DC (V)

600

Max. Input current (A)

25/25/25

Max. short circuit current (A)

31.3 / 31.3 / 31.3

No. of MPP trackers

3

No. of chains by MPP trackers

2/2/2

Output data CA

Apparent power of nominal output to the network (W)

30000

Max apparent power output to the network (VA)

33000

Nominal output voltage (V)

400, 3L / N / PE or 3L / PE

Nominal exit frequency (Hz)

50/60

Max output current CA to the network (A)

48

Output power factor

~ 1 (adjustable from 0.8 conductive to 0.8 inductive)

Output THDI (in nominal output)

Efficiency

Max. efficiency

98.8%

Euro efficiency

98.5%

General data

TEMP range Operational (° C)

-30 ~ 60

Relative humidity

0 ~ 100%

Operational altitude (M)

≤3000

Noise (DB)

Weight (kg)

40

Size (Width * High * Long MM)

480 * 590 * 200

Degree

Ip65

Self-consumption at rest (W)

Topology

Transformer
