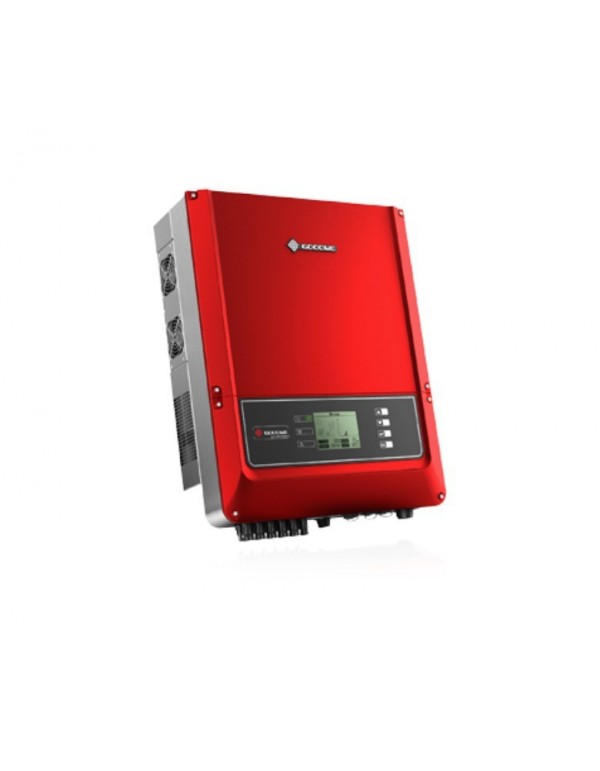

Inverter Solar GoodWe GW20K-DT three-phase
GW20K-DT
€1,461.80
Tax included
Inverter 20000W Goodwe Three-phase Solar with SetApp configuration, specially designed for self-consumption installations without battery. It belongs to the DT series, so it includes 2 MPPT Solar Followers, which make it ideal for installations of Oriented in different directions. Thanks to its reliable network support capacity, high degree of protection against water and dust and wide tension margin is suitable for commercial and industrial solar roofs and small and medium-sized systems.
The inverters solar GoodWe of the DT series are characterized by the following:
- They cover a high range of powers.
- 5-inch LCD front viewer.
- Export control
- 30% photovoltaic oversizing.
- 30% lighter.
- IP65 protection which provides you with tightness in front of moisture and dust, and allows you to be installed inside or outside the house.
- Light design of only 39 kg.
Technical sheet:
|
Model
|
Gw20k-dt
|
|
DC input data |
|
|
Max. Input power CC (W)
|
26000
|
|
Max. Input voltage DC (V)
|
1000
|
|
MPPT Range (V)
|
260 ~ 850
|
|
Start voltage (V)
|
250
|
|
MPPT range of full load (V)
|
470 ~ 850
|
|
Nominal input voltage DC (V) |
620
Max. Input current (A)
22/22
Max. short circuit current (A)
27.5 / 27.5
No. of MPP trackers
2
No. of chains by MPP trackers
2
Output data CA
Apparent power of nominal output to the network (W)
20000
Max apparent power output to the network (VA)
20000
Nominal output voltage (V)
400, 3L / N / PE
Nominal exit frequency (Hz)
50/60
Max output current CA to the network (A)
30
Output power factor
~ 1 (adjustable from 0.8 conductive to 0.8 inductive)
Output THDI (in nominal output)
Efficiency
Max. efficiency
98.4%
Euro efficiency
98.1%
General data
TEMP range Operational (° C)
-25 ~ 60
Relative humidity
0 ~ 100%
Operational altitude (M)
≤4000
Noise (DB)
Weight (kg)
39
Size (Width * High * Long MM)
516 * 650 * 203
Degree
Ip65
Self-consumption at rest (W)
Topology
Transformer
- Power (kW)
- 20 - 29.9
- Phase Type
- Three-phase
- Max Current Input (A)
- 20+
- Inverter Type
- Not hybrid
