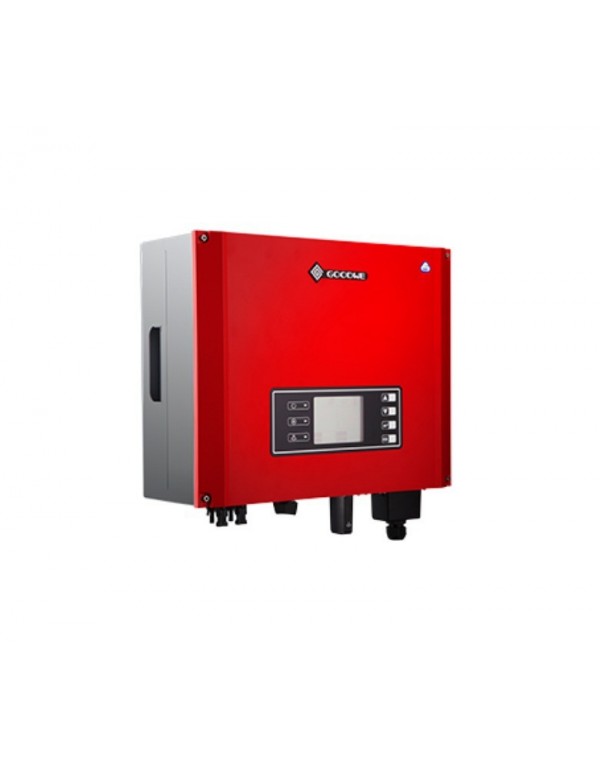

Inverter Solar GoodWe GW15KN-DT three-phase
GW15KN-DT
€1,177.26
Tax included
Inverter Three-phase solar Goodwe of 15000W with SetApp configuration, specially designed for self-consumption installations without battery. It belongs to the SMART DT series, so it includes 2 MPPT Solar Followers, which make it ideal for installations of Oriented in different directions. Small, lightweight and easy to install, with silent operation thanks to its natural convection cooling system.
The inverters solar GoodWe from the SMART DT series are characterized by the following:
- They cover a high range of powers.
- 5-inch LCD front viewer.
- Export control.
- 30% photovoltaic oversizing.
- 20% more compact.
- IP65 protection which provides you with tightness in front of moisture and dust, and allows you to be installed inside or outside the house.
- Light design of only 25kg.
Technical sheet:
|
Model
|
Gw15kn-dt
|
|
DC input data |
|
|
Max. Charging current (A
|
22
|
|
Max. Discharge current (A)
|
24
|
|
Max. Input power CC (W)
|
19500
|
|
Max. Input voltage DC (V)
|
1000
|
|
MPPT Range (V)
|
200 ~ 850
|
|
Start voltage (V)
|
180
|
|
MPPT range of full load (V)
|
480 ~ 850
|
|
Nominal input voltage DC (V)
|
620
|
|
Max. Input current (A)
|
22/11
|
|
Max. short circuit current (A)
|
27.6 / 13.8
|
|
No. of MPP trackers
|
2
|
|
Output data CA
|
|
|
Apparent power of nominal output to the network (VA)
|
15000
|
|
Max apparent power output to the network (VA)
|
16500 |
|
Max. Apparent power from the network (VA)
|
15000
|
|
Nominal output voltage (V)
|
400, 3L / N / PE
|
|
Nominal exit frequency (Hz)
|
50/60
|
|
Max output current CA to the network (A)
|
24
|
|
AC current from the network (A)
|
22/11
|
|
Output power factor
|
~ 1 (adjustable from 0.8 conductive to 0.8 inductive)
|
|
Output THDI (in nominal output)
|
|
|
Efficiency
|
|
|
Max. efficiency
|
98.3%
|
|
Euro efficiency
|
98%
|
|
General data
|
|
|
TEMP range Operational (° C)
|
-25 ~ 60
|
|
Relative humidity
|
0 ~ 100%
|
|
Operational altitude (M)
|
≤4000
|
|
Noise (DB)
|
|
|
Weight (kg)
|
24
|
|
Size (Width * High * Long MM)
|
560 * 455 * 192
|
|
Degree
|
Ip65
|
|
Self-consumption at rest (W)
|
|
|
Topology
|
Transformer
|
- Power (kW)
- 15 - 19.9
- Phase Type
- Three-phase
- Max Current Input (A)
- 20+
- Inverter Type
- Not hybrid
