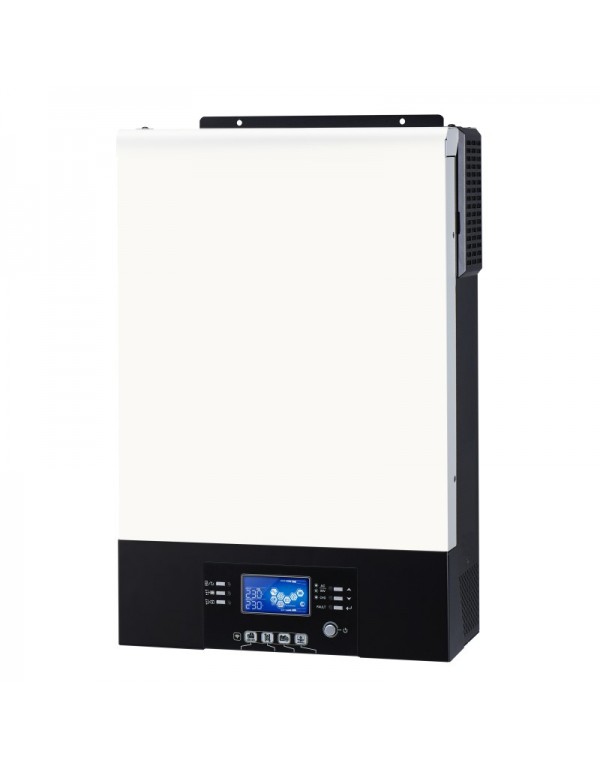

Inverter Solar Axpert King LL 5000-48V
AXVKNGll5K48
€500.00
Tax included
Inverter Solar charger for isolated installations of 5000W to 48V single-phase 48V to be able to connect 48V solar battery bench. The Axpert King LL 5K has a single MPPT (maximum power tracking point) and provides 94% yield. The maximum solar regulator entry current is 100A.
The Axpert King LL integrates the MPPT loading regulator with removable screen, Bluetooth (Mobile APPLIC APPLOY) and the possibility to connect 9 inverters Solar in parallel to increase the capacity of 45kw power. Automatic generator equipment start. Continuous voltage from 110 to 280V and up to 6000W of solar input panel.
2 year warranty of product and CE certificate.
The inverter solar Axpert King Ll stands out in addition to its price for the following characteristics:
- - Zero transfer time (0MS) to protect critical mission loads, such as servers and ATMs.
- - High range of voltage of photovoltaic input.
- - Removable LCD control module with multiple communications.
- - Electable high power load current.
- - Wi-Fi integrated for mobile supervision (there is an application available).
- - Configurable AC / Solar Input Priority through the LCD screen.
- - Communication port reserved for BMS (RS485 or Can-Bus).
- - Operation in parallel of up to 9 units.
The inverter- Axpert King 5000W-48V charger is a very economical option for demanding clients who want to own a reliable and trouble-free product in the operation of its installation. For any questions, consult with us in [email protected]
Technical characteristics:
|
Model |
Axpert King LL 5000W-48V |
|
Nominal power |
5000va / 5000w |
|
Entrance voltage |
110-280 VAC |
|
Assigned network frequency / frequency range |
50hz / 60hz |
|
Output voltage AC |
230VAC +/- 5% |
|
Maximum power peak transient |
10000va |
|
Efficiency peak |
94% |
|
Waveform |
Pure sine |
|
Battery tension |
40-62vdc |
|
Load floating tension |
54vdc |
|
Overload protection |
62vdc |
|
Maximum power Solar PV |
6000wp |
|
MPTT range in operating voltage |
120 - 450Vdc |
|
Maximum tension of circuit open by String |
500vdc |
|
Maximum solar current |
100a |
|
Maximum AC current |
100a |
- Power (kW)
- 3 - 5.9
- Phase Type
- Single phase
- Max Current Input (A)
- 20+
- Compatibility list
- Dyness BX51100
Dyness Power Box
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
Turbo Energy (Slim)
