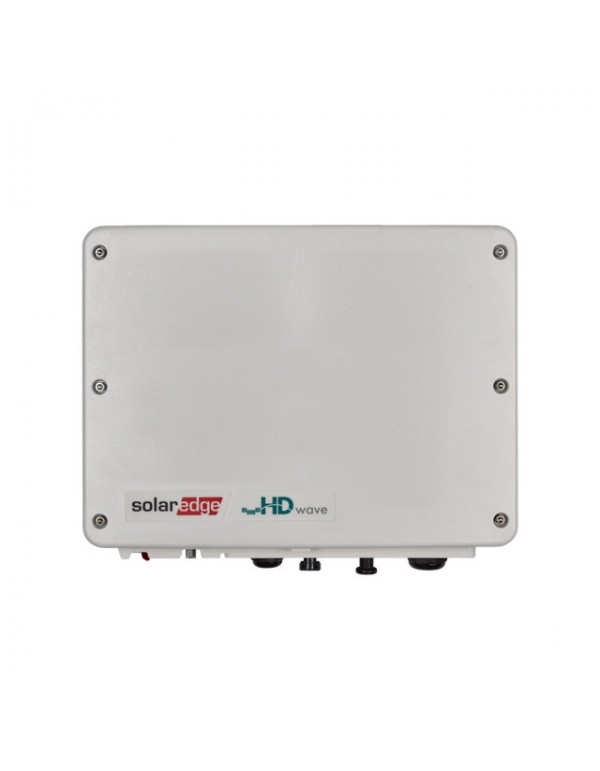

Inverter solar SolarEdge HD-Wave 5.0kw - Single-phase
SE5000H-RW000BNN4
€1,235.14
Tax included
Inverter single-phase SolarEdge of 5000W with SetApp configuration and HD-Wave technology. It has a maximum efficiency of 99.2% and a maximum entry current of 13.5A. The models of inverters HD-Wave are characterized by its small and lightweight design, high efficiency and safety.
This inverter You have received the Intersolar Award 2016 and Edison Award 2018 prizes. What distinguishes it from others inverters is that it handles the monitoring of the maximum power point and the voltage management separately for each solar module, so that inverter It is only responsible for the investment of CC to CA, this makes it more profitable, simple and reliable. Specially designed to operate with optimizers SolarEdge
12-25 year warranty.
The inverters solar SolarEdge HD-WAVE feature the following characteristics:
- - Designed specifically to work with power optimizers SolarEdge
- - Leading efficiency in the sector with an oversizing CC of 200%.
- - Quick and simple start-up inverter directly from a smartphone through the SolarEdge Setapp
- - Perfect wireless connectivity with system devices, such as energy bank battery SolarEdge, through the optional platform SolarEdge Energy Net
- - Extremely compact, lightweight and easy to install
- - Integrated monitoring at the module level
- - Suitable for exterior and interior installation
- - Inverter of fixed voltage for longer chains
- - Advanced security function: integrated protection against arc failures
Technical sheet:
|
Model
|
Se5000h
|
|
EXIT
|
|
|
Nominal power output of CA
|
5000 W
|
|
Maximum power of AC output
|
5000 VA
|
|
AC output voltage (nominal)
|
220/230 VAC
|
|
AC output voltage range
|
184 - 264.5 VAC
|
|
AC frequency (nominal)
|
50/60 ± 5 Hz
|
|
Maximum continuous output current
|
By
|
|
Power factor
|
1, adjustable from -0.9 to 0.9
|
|
Monitoring of Public Services, Islands Protection, Configurable Power Factor, Configurable Thresholds by Country
|
Yes
|
|
ENTRANCE
|
|
|
Maximum power of CC
|
10000 W
|
|
No transformers, without ground connection
|
Yes
|
|
Maximum input voltage
|
480 VDC
|
|
Nominal DC input voltage
|
380 VDC
|
|
Maximum input current
|
1 3.5 ADC
|
|
Reverse polarity protection
|
Yes
|
|
Earth fault insulation detection
|
600 kΩ sensitivity
|
|
Maximum efficiency of the inverter
|
99.2%
|
|
European weighted efficiency
|
99%
|
|
Compliance with rules
|
|
|
Security
|
IEC-62109-1 / 2
|
|
Network connection standards
|
IEC61727, IEC62116, EN 50438, VDE-AR-N-4105, VDE 0126-1-1, G98, G99, CEI-021, ÖNORM, TF3.2.1, C10-11, NRS 097-2-1
|
|
Electromagnetic compatibility (EMC)
|
EN / IEC 61000-6-1, EN / IEC 61000-6-2, EN / IEC 61000-6-3, EN / IEC 61000-6-4, EN 55011, FCC Part 15, EN / IEC 61000-3-2, EN / IEC 61000-3-3, EN / IEC 61000-3-11, EN / IEC 61000-3-12
|
|
Installation specifications
|
|
|
AC output: compatible cable diameter
|
9-16 mm
|
|
AC - Transversal section of compatible wire
|
1-13 mm ^ 2
|
|
DC Entrance (PV)
|
2 x MC4
|
|
Dimensions (H x W x D)
|
280 x 370 x 142 mm
|
|
Noise
|
|
|
Weight
|
9 kg
|
|
Cooling
|
Natural convection
|
|
Operating temperature range
|
-40 to +60 c
|
|
Degree
|
IP65 - Exterior and Interior
|
- Power (kW)
- 3 - 5.9
- Phase Type
- Single phase
- Max Current Input (A)
- 13 - 13.99
