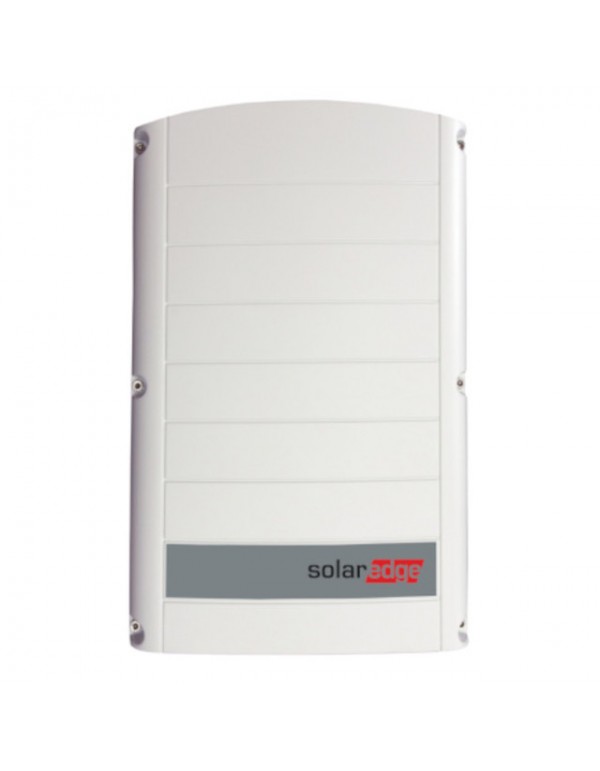

Inverter solar SolarEdge SE33.3K 33.3KW - Three-phase
SE33.3K-RW00IBNM4
€2,370.12
Tax included
Inverter three-phase SolarEdge of 33300W with SetApp configuration. It has an efficiency of 98.3% and a maximum entry current of 48.25A. This brand inverters They are characterized by their great power, lightness and efficiency.
The inverter Maximizes solar energy obtaining thanks to combining digital control technology with an efficient energy conversion architecture. Fixed voltage technology guarantees that the inverter Always running at an optimal input voltage, regardless of the number of modules in a chain or environmental conditions. The data of the monitoring receiver of the inverter and the performance of the energy optimizer of each solar board can be transmitted to the Web.
12-25 year warranty.
The inverters three-phase solar SolarEdge They stand out for the following characteristics:
- - Inverter of fixed voltage for upper efficiency (98.3%) and longer chains
- - Integrated monitoring at the module level with Ethernet communication, wireless or cellular for total system visibility
- - Quick and simple start-up inverter directly from a smartphone using the SetApp SolarEdge
- - Advanced security features: integrated protection against arc failures optional
- - Small, the lightest of your kind and easy to install
- - Installation outdoor and interiors IP65
- - Protection against Type 2 CC Overvoltage integrated, to better support the rays
- - Prepared for the future for the energy storage solution of SolarEdge
Technical sheet:
|
Model
|
Se33,3k
|
|
EXIT
|
|
|
Nominal power output of CA
|
33300w
|
|
Maximum power of AC output
|
33300va
|
|
AC output voltage (nominal)
|
380/220 ; 400/230 VAC
|
|
AC output voltage range
|
304 - 437/176-253 ; 320 - 460/184 - 264.5 VAC
|
|
AC frequency (nominal)
|
50/60 ± 5 Hz
|
|
Maximum continuous output current
|
48.25 a
|
|
Connections of the output line of CA
|
3W + PE, 4W + PE
|
|
Monitoring of Public Services, Islands Protection, Configurable Power Factor, Configurable Thresholds by Country
|
Yes
|
|
ENTRANCE
|
|
|
Maximum power of CC
|
49950 W
|
|
No transformers, without ground connection
|
Yes
|
|
Maximum input voltage
|
1000 VDC
|
|
Nominal DC input voltage
|
750 VDC
|
|
Maximum input current
|
48.25 ADC
|
|
Reverse polarity protection
|
Yes
|
|
Earth fault insulation detection
|
Sensitivity of 167 kΩ
|
|
Maximum efficiency of the inverter
|
98.3%
|
|
European weighted efficiency
|
98%
|
|
Compliance with rules
|
|
|
Security
|
IEC-62109, AS3100
|
|
Network connection standards
|
VDE-AR-N-4105, G99, G99 (Ni), AS-4777, EN50438, EN5043 8, CEI-021, VDE 0126-1-1, CEI-016, EN50549-1, EN50549-2, VDE-AR-N 4110, Tor Erzeuger Typ, VFR 2019
|
|
Emissions
|
IEC61000-6-2, IEC61000-6-3 Class A, IEC61000-3-11, IEC61000-3-12
|
|
Installation specifications
|
|
|
Diameter of the AC output gland / cross section of the cable
|
Diameter of the cable 19-28 mm / 4 - 16 mm2
|
|
DC Entrance (PV)
|
4 pairs MC4
|
|
Dimensions (H x W x D)
|
550 x 317 x 273 mm
|
|
Noise
|
|
|
Weight
|
32 kg
|
|
Cooling
|
Fan (replaceable by the user)
|
|
Operating temperature range
|
-40 to +60 c
|
|
Degree
|
IP65 - Exterior and Interior
|
- Power (kW)
- + 30
- Phase Type
- Three-phase
- Max Current Input (A)
- 20+
