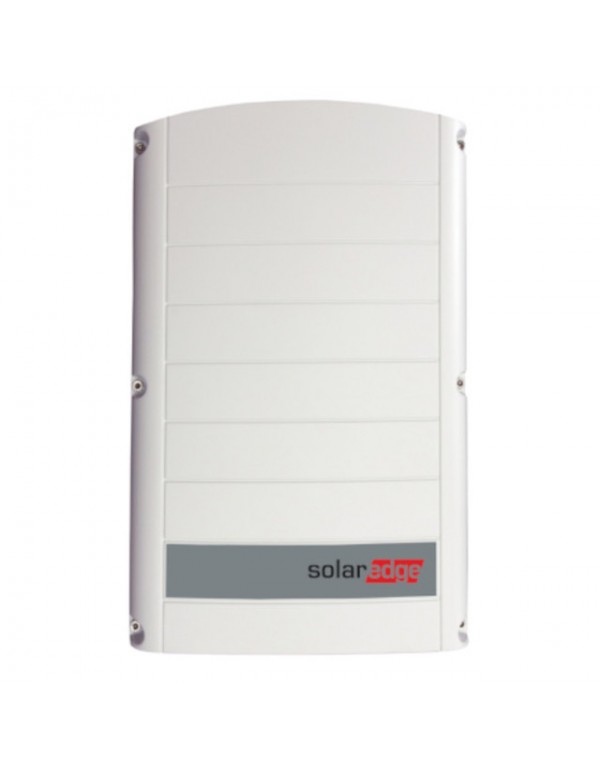

Inverter solar SolarEdge SE9K 9KW - Three-phase

SE9K-RW0TEBEN4
€1,960.22
Tax included

Inverter three-phase SolarEdge of 9000W with SetApp and Energynet configuration. It has an efficiency of 98% and a maximum entry current of 15 A. This line of inverters They are characterized by their efficiency, lightness and easy installation.

The inverter Maximizes solar energy obtaining thanks to combining digital control technology with an efficient energy conversion architecture. Fixed voltage technology guarantees that the inverter Always running at an optimal input voltage, regardless of the number of modules in a chain or environmental conditions. The data of the monitoring receiver of the inverter and the performance of the energy optimizer of each solar board can be transmitted to the Web.

12-25 year warranty.



The inverters three-phase solar SolarEdge They stand out for the following characteristics:

  • - Adequate noise level for residential environments - without external fan
  • - Upper efficiency (98%)
  • - Small, the lightest of your kind and easy to install
  • - Integrated monitoring at the module level
  • - Quick and simple start-up inverter directly from a smartphone using the SetApp SolarEdge
  • - Internet connection via Ethernet or wireless (Wi-Fi, Zigbee Gateway, Cell)
  • - IP65 - Exterior and interior installation
  • - Inverter of fixed voltage for longer chains
  • - Control of intelligent energy management

Below is a general description based on the typical characteristics of the inverters solar SolarEdge:

- Nominal power: The SE9K model has an output capacity of 9 kilowatts (9 kW), which makes it suitable for medium-size installations in solar systems connected to the electrical network.

- Inverter Three-phase: this inverter it is three-phase, which means that it is designed for systems connected to a three-phase electrical network.

- Optimization technology: SolarEdge it is known for its optimization technology at the panel level. This means that each solar panel can be controlled and optimized individually, which improves the efficiency of the system under shadow conditions and in environments where the solar have different levels of insolo.

- Remote monitoring: SolarEdge it offers an online monitoring system that allows owners to monitor the performance of their solar system in real time. They can access detailed data on the production of each solar panel.

- Compact design: inverters of SolarEdge they usually have a compact and lightweight design, facilitating installation in various locations.

- Compatibility with energy storage: some inverters SolarEdge, including models such as the SE9K, are compatible with energy storage solutions, allowing owners to store energy surplus for later use.

- Security and integrated protections: inverters SolarEdge they incorporate safety and protections functions, such as automatic disconnection in case of failures or problems.

- Connectivity and updates: many inverters SolarEdge they have advanced connectivity to facilitate firmware updates and integration with other energy management devices and systems.

Technical sheet:

Model

Se9k

EXIT



Nominal power output of CA

9000va

Maximum power of AC output

9000va

AC output voltage (nominal)

380/220; 400/230 VAC

AC output voltage range

184 - 264.5 VAC

AC frequency (nominal)

50/60 ± 5 Hz

Maximum continuous output current

14.5

Supported grids - three-phase

3 / N / PE (Wye with neutral)

Monitoring of Public Services, Islands Protection, Configurable Power Factor, Configurable Thresholds by Country

Yes

ENTRANCE



Maximum power of CC

12150 W

No transformers, without ground connection

Yes

Maximum input voltage

900 VDC

Nominal DC input voltage

750 VDC

Maximum input current

15  ADC

Reverse polarity protection

Yes

Earth fault insulation detection

            Sensitivity of 700 kΩ

Maximum efficiency of the inverter

98%

European weighted efficiency

97,5%

Compliance with rules



Security

IEC-62103 (EN50178), IEC-62109

Network connection standards

VDE 0126-1-1, VDE-AR-N-4105, AS-4777, G83 / G59

Electromagnetic compatibility (EMC)

EN / IEC 61000-6-1, EN / IEC 61000-6-2, EN / IEC 61000-6-3, EN / IEC 61000-6-4, EN 55011, FCC Part 15, EN / IEC 61000-3-2, EN / IEC 61000-3-3, EN / IEC 61000-3-11, EN / IEC 61000-3-12

Installation specifications



CA

Certificates - Diameter 15-21 mm

DC Entrance (PV)

2 pairs MC4

Dimensions (H x W x D) with Storedge interface

540 x 315 x 191 mm

Noise

Weight

16.4 kg

Cooling

Internal fan

Operating temperature range

-40 to +60 c

Degree

IP65 - Exterior and Interior
Power (kW)
6 - 9.9
Phase Type
Three-phase
Max Current Input (A)
15 - 15.99
