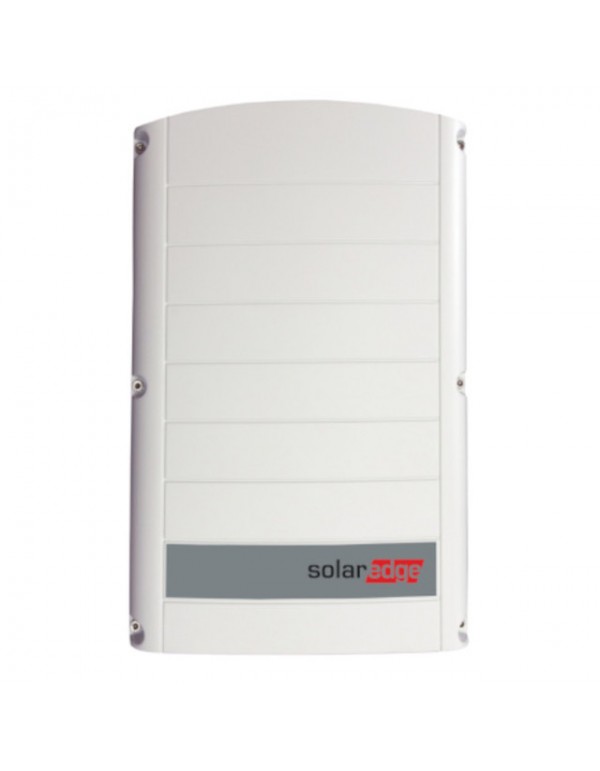

Inverter solar SolarEdge SE5K 5KW - Three-phase
SE5K-RW0TEBEN4
€1,485.57
Tax included
Inverter three-phase SolarEdge of 5000W with SetApp and Energynet configuration. It has an efficiency of 98% and a maximum entry current of 8.5 A. This line of inverters They are characterized by their efficiency, lightness and easy installation.
The inverter Maximizes solar energy obtaining thanks to combining digital control technology with an efficient energy conversion architecture. Fixed voltage technology guarantees that the inverter Always running at an optimal input voltage, regardless of the number of modules in a chain or environmental conditions. The data of the monitoring receiver of the inverter and the performance of the energy optimizer of each solar board can be transmitted to the Web.
12-25 year warranty.
The inverters three-phase solar SolarEdge They stand out for the following characteristics:
- - Adequate noise level for residential environments - without external fan
- - Upper efficiency (98%)
- - Small, the lightest of your kind and easy to install
- - Integrated monitoring at the module level
- - Quick and simple start-up inverter directly from a smartphone using the SetApp SolarEdge
- - Internet connection via Ethernet or wireless (Wi-Fi, Zigbee Gateway, Cell)
- - IP65 - Exterior and interior installation
- - Inverter of fixed voltage for longer chains
- - Control of intelligent energy management
Technical sheet:
|
Model
|
Se5k
|
|
EXIT
|
|
|
Nominal power output of CA
|
5000va
|
|
Maximum power of AC output
|
5000va
|
|
AC output voltage (nominal)
|
380/220; 400/230 VAC
|
|
AC output voltage range
|
184 - 264.5 VAC
|
|
AC frequency (nominal)
|
50/60 ± 5 Hz
|
|
Maximum continuous output current
|
8.5
|
|
Supported grids - three-phase
|
3 / N / PE (Wye with neutral)
|
|
Monitoring of Public Services, Islands Protection, Configurable Power Factor, Configurable Thresholds by Country
|
Yes
|
|
ENTRANCE
|
|
|
Maximum power of CC
|
6750 W
|
|
No transformers, without ground connection
|
Yes
|
|
Maximum input voltage
|
900 VDC
|
|
Nominal DC input voltage
|
750 VDC
|
|
Maximum input current
|
7 ADC
|
|
Reverse polarity protection
|
Yes
|
|
Earth fault insulation detection
|
Sensitivity of 700 kΩ
|
|
Maximum efficiency of the inverter
|
98%
|
|
European weighted efficiency
|
97.3%
|
|
Compliance with rules
|
|
|
Security
|
IEC-62103 (EN50178), IEC-62109
|
|
Network connection standards
|
VDE 0126-1-1, VDE-AR-N-4105, AS-4777, G83 / G59
|
|
Electromagnetic compatibility (EMC)
|
EN / IEC 61000-6-1, EN / IEC 61000-6-2, EN / IEC 61000-6-3, EN / IEC 61000-6-4, EN 55011, FCC Part 15, EN / IEC 61000-3-2, EN / IEC 61000-3-3, EN / IEC 61000-3-11, EN / IEC 61000-3-12
|
|
Installation specifications
|
|
|
CA
|
Certificates - Diameter 15-21 mm
|
|
DC Entrance (PV)
|
2 pairs MC4
|
|
Dimensions (H x W x D) with Storedge interface
|
540 x 315 x 191 mm
|
|
Noise
|
|
|
Weight
|
16.4 kg
|
|
Cooling
|
Internal fan
|
|
Operating temperature range
|
-40 to +60 c
|
|
Degree
|
IP65 - Exterior and Interior
|
- Power (kW)
- 3 - 5.9
- Phase Type
- Three-phase
- Max Current Input (A)
- 10-
