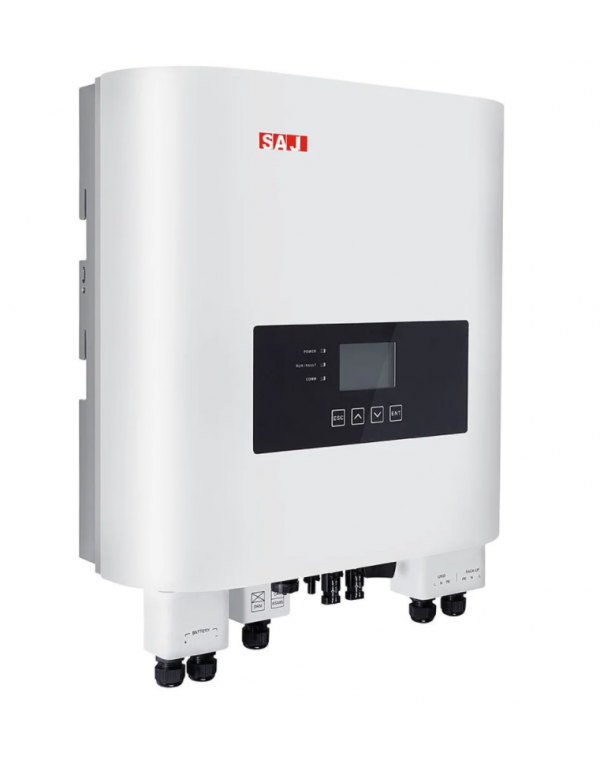

Inverter solar hybrid SAJ H1-5k-s2
h1-5K-S2
€1,016.40
Tax included
Inverter Solar Hybrid Single-phase SAJ 5KW and 48V of the H1-6K-S2 series
Inverter Solar hybrid single-phase network connection SAJ 5000W of 2 MPPT's that allows connect 48V lithium batteries. With an efficiency greater than 98.8%, it allows to connect up to 7500W solar panel power with a maximum input voltage of 600V.
The H1 series inverters Single-phase hybrids SAJ They are a highly recommended option for network connection installations with batteries as they allow the system to operate in the case of network fall (system UPS). With short-circuit protection, overloads and high temperatures the H1 series SAJ It is a good quality option price.
Your guarantee is 5 years and are certified for use in the European Community.
The inverters hybrid Solar H1-S2 SAJ they provide have the following current residential characteristics:
- - Interrupted feeding system which allows to supply energy to the home if there is no network (UPS - Uninterrumped Power Supply)
- - 5KW backup power to support more important loads that connects in less than 10 ms
- - Multiple modes of work to maximize self-consumption and increase the benefit of the investment
- - Compatible with 48V lithium batteries
- - Accredited and certified for the different European markets
- - Design without fan with long life and no noise.
- - Fully intelligent energy management 24 hours, plant monitoring even during the night
- - zero injection function integrated in the inverter no need to use vatimeter.
- - maximum 100A discharge current
Technical characteristics of the inverter:
|
Model |
H1-5k-s2 |
|
DC current input (photovoltaic side) |
|
|
Maximum input power (Wpage) |
7500 |
|
Maximum input voltage (V) |
600 |
|
Nominal voltage (V) |
360 |
|
Boot voltage (V) |
120 |
|
MPPT voltage range (V) |
90-550 |
|
Maximum input current (A) |
12,5 |
|
Maximum short circuit current |
15 |
|
Mppts |
2 |
|
Drums |
|
|
TYPE |
Lithium |
|
Voltage range (V) |
42-58 |
|
Load-maximum load current (A) |
100 |
|
Maximum load power (W) |
5000 |
|
AC current output (storage) |
|
|
Nominal output power (VA) |
5000 |
|
POWER PICO DEAL (VA) |
5000 |
|
Nominal exit voltage (V) |
220/230 |
|
Nominal frequency (Hz) |
50/60 |
|
AC current output (Electric network) |
|
|
Nominal output power (VA) |
5000 |
|
POWER PICO DEAL (VA) |
5000 |
|
Maximum output intensity (A) |
22,7 |
|
General characteristics |
|
|
Dimensions (mm) |
470 x 470 x 190 |
|
Weight (kg) |
23 |
|
Communication |
WiFi, GPRS |
|
Refrigeration |
Natural convection |
- Power (kW)
- 3 - 5.9
- Phase Type
- Single phase
- Max Current Input (A)
- 12 - 12.99
- Compatibility list
- Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
SAJ B1 / AS1-3KS
