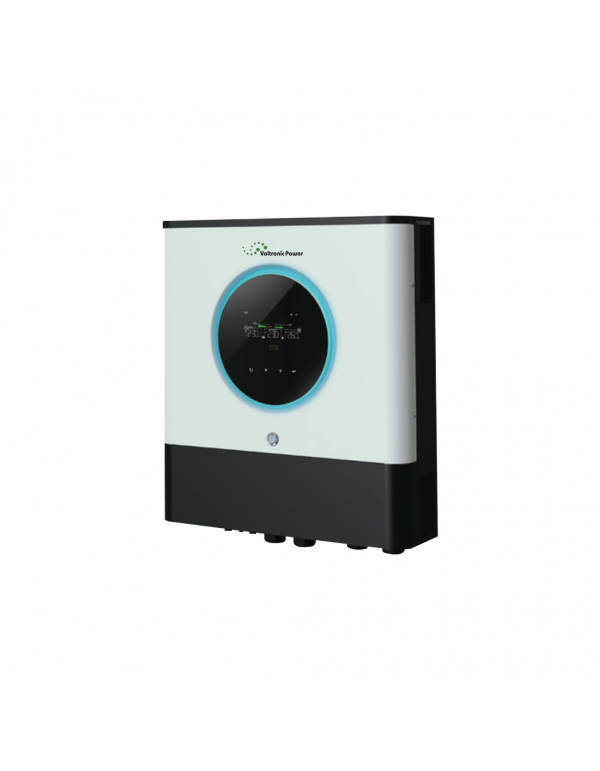

Inverter Solar charger Axpert Max II 8000-48V

AXMAXII800048
€941.38
Tax included

Consult availability

Inverter Solar charger for installations of isolated 80000W to 48V single-phase to be able to connect sunscreen from the corresponding voltage (48V). The AXPERT MAX of 8000W has two MPpt's (maximum power tracking point) and provides a yield of 93.0%. The maximum solar regulator input current is 120A per mppt.

The AXPERT MAX II 8000W 48V can support up to 8000 WP of solar panel power.

This inverter 8KW Axpert Max II Solar Charger (KVA) offers a guarantee of 2 years of product and CE certificate.



This model incorporates a 5 ", WiFi, USB color touch screen stores the incidents, system to maximize the useful life of batteries and an anti-dust kit.

The inverter solar Axpert Max II 8000W-48V as the rest of the family stands out in addition to its price for the following characteristics:

  • - Inverter isolated pure sine wave wave of great efficiency
  • - Output power factor of 1 which involve 8KW of real power
  • - MPPT loading regulator integrated in the inverter solar (This model has 2 mppt's)
  • - Wide range of input voltage selection of the inverter solar 170-280V)
  • - Wide range of selection of entry current of the inverter solar for battery charge up to 120A
  • - Configurable AC / Solar Entrance through the LCD screen
  • - In this case, the Axpert Max II 8000-48V has a car auto-landing or hybrid installation (by using electricity network)
  • - Overvoltage and short circuit protections in the inverter solar
  • - Option for coupling remote control of the inverter charger
  • - inverter pARALLY ALREADY UP IN 6 STUDES.
  • - Possibility of selecting the battery charge by solar power () or network
  • - Specific communication port for the Battery Battery (RSM 485 / Can-Bus / RS232)

The inverter- Axpert Max II 8000W-48V charger is a very economical option for demanding clients who want to own a reliable and smooth quality product in the operation of its installation.  For any questions, consult with us in [email protected]

Technical characteristics

Model

Axpert Max II 8000W-48V

Nominal power

8000va / 8000w

Entrance voltage

230vac

Assigned network frequency / frequency range

50hz / 60hz

Output voltage AC

230VAC +/- 5%

Maximum power peak transient

16000va

Efficiency peak

93%

Waveform

Pure sine

Battery tension

48vdc

Load floating tension

54vdc

Overload protection

66vdc

Maximum power Solar PV

8000wp

MPTT range in operating voltage

90VDC - 450VDC

Maximum tension of circuit open by String

500vdc

Maximum solar current

150a

Maximum AC current

120a
Power (kW)
6 - 9.9
Phase Type
Single phase
Max Current Input (A)
15 - 15.99
Compatibility list
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
Turbo Energy (Slim)
