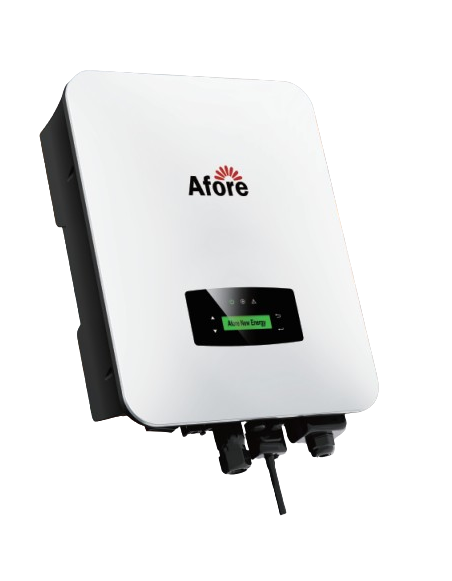

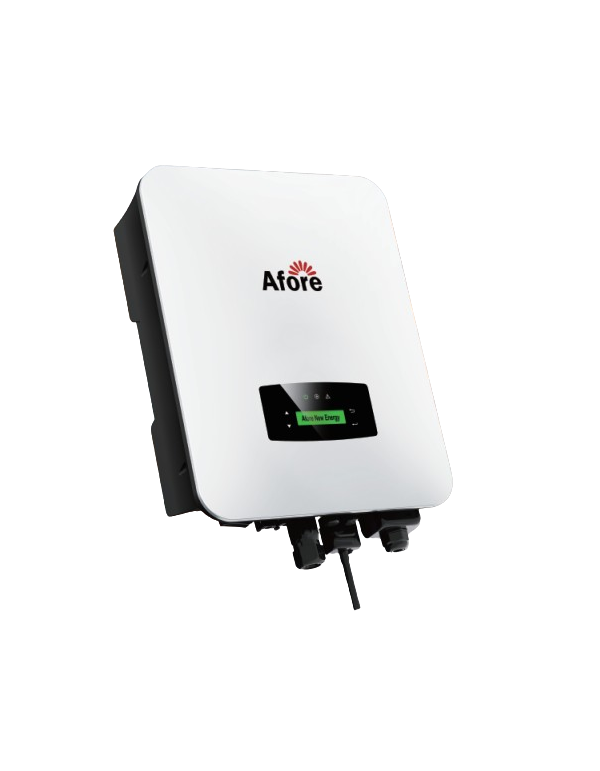

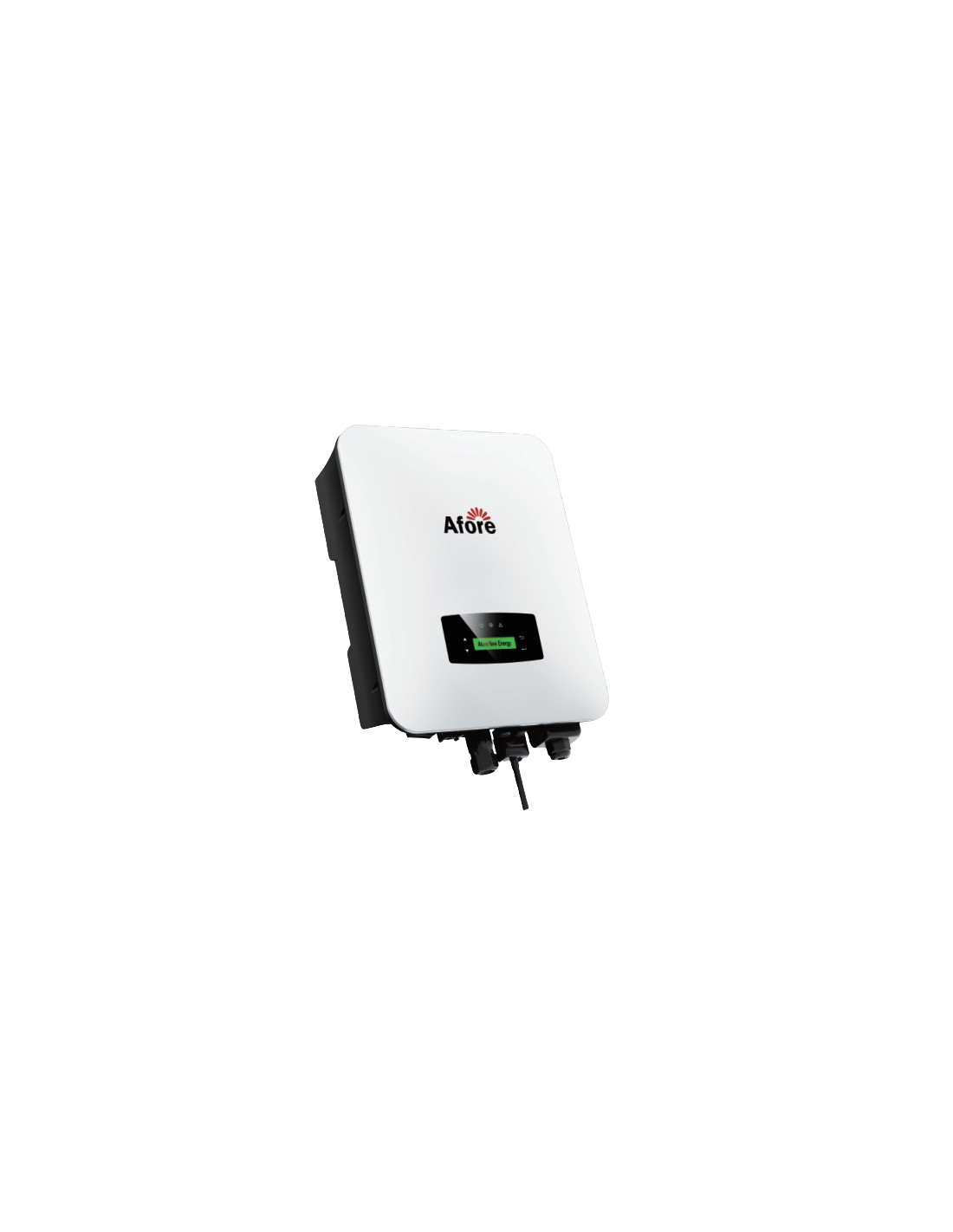

Hybrid Inverter Three-phase AFORE AF10K-MTH 10KW

Benefits hybrid Inverter Three-phase AFORE AF10K-MTH

The Af10k-mth It is part of AFORE's high-voltage three-phase series, designed for higher consumption residential facilities and small commercial facilities that require a balanced supply in the three phases. Unlike a inverter networking conventional, this equipment allows you to manage intelligently when to load the battery, when to self-consuming and when to pour or buy power to the network, applying strategies Peak Shaving To reduce hired power peaks and optimize savings on the electricity invoice.

Compatibility with high voltage batteries

AF10K-MTH is designed to work with Batteries from 80 to 600V, a much wider range than that of inverters hybrid Low-voltage single-phase, which allows connecting greater capacity accumulation systems without the need to multiply the number of modules in parallel. It is compatible with Ion-lithium batteries, lead-acid and metal sodium chloride, offering flexibility to the installer when selecting the most suitable storage technology for each project.

Continuity of supply with function UPS

One of the great advantages of AF10K-MTH is your function UPS with switching time of less than 10ms, practically imperceptible, which guarantees the continuous supply of critical charges before a network cutting. In addition, in mode backup The team admits a Peak overload up to 150%, allowing to start without problems appliances or machinery with high boot peaks. Its exit 100% unbalanced by phase It is especially useful in installations where loads are not distributed homogeneously between the three phases.

Flexible photovoltaic design and intelligent energy management

With 2 independent MPPT channels and a spacious Full MPPT range from 500 to 850V, superior to that of lower-power models of the same family, AF10K-MTH offers great flexibility when designing chains of solar with different orientations or lengths. Its ability to Overdimensioned up to 1.5 times The nominal power allows the maximum available the available area, while its compatibility with external power management systems (EMS Port Ready) It facilitates its integration into facilities with advanced automation or centralized energy management.

Prepared for backup generator and future expansion

AF10K-MTH includes support for Backup generator (Generator Backup Support), a function especially valuable in areas with unreliable electric supply, as well as preparation for AFCI (electric arc detection) optional and quick off, reinforcing the security of the installation. This combination of benefits makes it a robust alternative against architectures based solely on microinverters No storage capacity. If you want to deepen the dimensioning of three-phase hybrid systems, you can consult the technical guides of the Blog Tienda Solar.

Detailed technical characteristics

Photovoltaic entrance (PV INPUT)

• Maximum entry power CC: 15 kW
• Maximum voltage FV: 1000 V
• Input voltage CC Nominal: 620 V
• Input voltage range CC: 150 to 1000 V
• MPPT voltage range: 150 to 850 V
• Complete MPPT range: 500 to 850 V
• Starting voltage: 160 V
• Max Entry CC: 18.5 A x 2
• Maximum short circuit: 25 a x 2
• No. of Followers MPPT / No. of chains: 2/2

Battery port

• Nominal battery voltage: 350 V
• Battery voltage range: 80 to 600 V
• Maximum loading / unloading current: 30 a
• Maximum loading / unloading power: 10 kW
• Cargo curve: 3 stages
• Type of compatible battery: Ion-lithium / lead-acid / metallic sodium chloride

Red CA (AC Grid)

• Nominal power output: 10 kW
• Maximum input / output power: 15/11 kVA
• Maximum output current CA: 17 a
• Nominal voltage CA: 3P + N + PE / 3P + PE, 230/400 V
• Nominal frequency CA: 50/60 Hz
• Power factor: 1 (Adjustable -0.8 to 0.8)
• Thd of current:

Charging output CA - Backup (AC Load Output)

• Nominal output power: 10,000 VA
• Nominal exit tension: 3P + N + PE / 3P + PE, 230/400 V
• Nominal output frequency: 50/60 Hz
• Nominal output current: 14.5
• POWER OF PICO: 11,000 goes for 60 s
• THDV (with linear load):
• Switching time:

Efficiency

• European efficiency: 97,5%
• Maximum efficiency: 98,2%
• Charging efficiency / battery discharge: 98,0%

Protection

• Reverse polarity protection: Yes
• Overcurrent / overvoltage protection: Yes
• Anti-Isla Protection: Yes
• Protection against short circuit: Yes
• Leak detection of leakage: Yes
• Earth failure monitoring: Yes
• Network monitoring: Yes
• LEVEL OF PROTECTION OF THE CASH: Ip66
• Overvoltage protection CA / CC: Type II

General data

• Dimensions (an x at x p): 370 x 598.5 x 192 mm
• Weight: 22 kg
• Topology: No transformer (transformer)
• Refrigeration: smart fan
• Relative humidity: 0% to 100%
• Operational temperature range: -25 ° C at 60 ° C
• Operational altitude: up to 4,000 m
• Noise emission:
• Consumption in Standby:
• Communication interfaces: LCD, LED, RS485, Can, Wi-Fi, GPRS, 4G
• Certifications: NRS097, G98 / G99, EN50549-1, C10 / C11, AS4777.2, VDe-AR-N4105, VDe0126, IEC62109-1, IEC62109-2
• EMC: EN61000-6-2, EN61000-6-3
