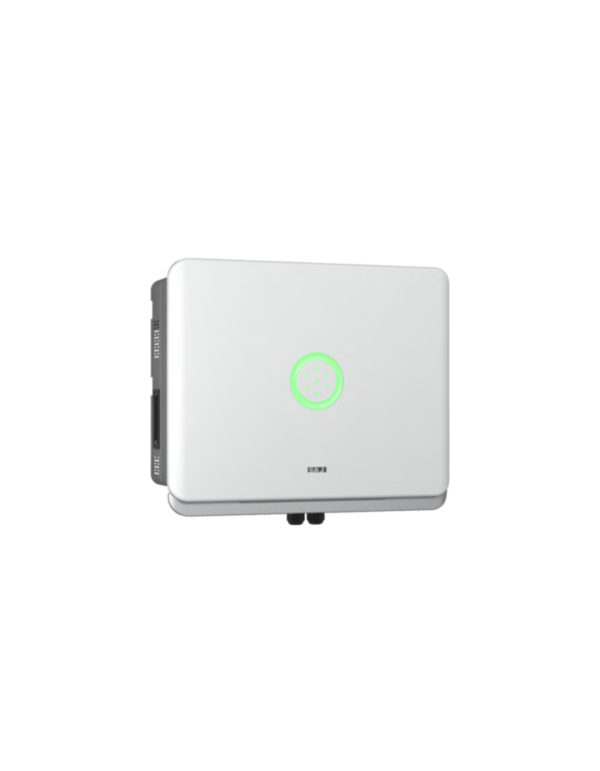

Hybrid Inverter SAJ H2-10K-S3 10kw single-phase | Pack AIO3 + Meter + CT

SAJ H2-10K-S3 AIO3: Hybrid Intelligence 10KW, Function SAI

Taking the step towards residential energy independence with high consumption requires a central brain capable of directing the production of the plates, the demand for housing and the storage of energy instantaneously. The hybrid Inverter networking SAJ H2-10K-S3 single-phase 10kw it has been developed for demanding households looking for an absolute control of its electricity, being protected against the increases in light and the power supply cuts of the conventional network.

Double MPPT high current and compatibility with lithium batteries

The photovoltaic flexibility of this equipment is determined by the integration of 2 independent MPPT followers. This greatly facilitates the design of Strings in covers with two orientations (for example, roofs to two waters and west) without shading affect global performance. By admitting a maximum entrance current of 16A per chain, this inverter it is coupled perfectly with modern photovoltaic modules of large cells. This model belongs to our specialized range of inverters hybrid, which means that it has advanced load and bidirectional download electronics ready to work together with storage systems.

This pack includes the system AIO3 along with the meter (vatimeter) and the CT (current transformer). These accessories are fundamental, since they allow to measure in real time the sense of electricity in the house, managing to activate essential functions such as zero-to-network injection or the intelligent surplus derivation. To make the most of these hybrid capacities during night hours, it is essential to associate the equipment to a compatible lithium storage bank, which you can find within our specialized catalog of batteries residential.

Function UPS for blackouts and thermal dissipation totally silent

The security and continuity of the supply in the home are guaranteed with the SAJ H2-10k-s3. Has a function SAI/UPS integrated with a switching time of less than 10 milliseconds. Before an unforeseen cut in the general electrical network, the inverter react immediately by feeding the critical charges of the house (such as lighting, refrigerator or Internet) without notes flashing. On the physical plane, your IP65 hermetic chassis is cooled by natural Convection No Fans, eliminating annoying noises at home. Also, it incorporates sPD Overvoltage Protections in CC and CA Integrated factory. If you are going to install the on tile or metal covers, do not forget to guarantee a rigid and stainless support by acquiring our structures for of reinforced aluminum.

Technical specifications (model SAJ H2-10K-S3 single-phase):

Continuous current input parameters (DC - photovoltaic):

• Maximum recommended photovoltaic power: 15,000 WP (Overdimensioning 150%)

• Maximum System Tension DC: 600 V

• Voltage range of the MPPT: 90 V - 500 V

• Nominal input voltage CC: 360 V

• Investment boot voltage: 100 V

• Maximum cc input current: 16 a / 16 (For each MPPT follower)

• Number of independent MPPT followers: 2

Battery parameters (accumulation port):

• Type of compatible battery: Lithium (LifePO4) / High Voltage

• Battery voltage range: 180 V - 550 V

• Maximum loading / unloading current: 30 a / 30 a

Alternating current output parameters (CA - Network Connection):

• Nominal output power to the network: 10,000 W

• Maximum apparent power of output: 10,000 VA

• Maximum output current CA: 45.5

• Nameric Network / Range: 220V, 230V, 240V / 180V-280V

• Maximum efficiency Inverter: 97,6%

Emergency output parameters (CA - Function UPS Back-up):

• Nominal backup power: 10,000 W

• Maximum peak apparent power: 15,000 VA (60 seconds)

• Automatic switching time:

Frequently Asked Questions (FAQ)

1. What are the putting and the CT that are included in this pack? The Meter (vatimeter) together with the CT (amperimeter clamp) they are responsible for measuring bi-directionally the energy that comes in and leaves your home towards the general electrical network. Thanks to these readings in real time, the inverter SAJ H2 knows exactly when to send solar surpluses to batteries, when to cover domestic consumption or how to apply zero injection.
2. What happens with the household appliances if there is a light cut? The inverter has an emergency backing output with function UPS integrated that commutes in less than 10 ms. This means that, if the general electrical network falls, the equipment takes the power of your plates and batteries to feed critical consumption instantaneously, avoiding electronic equipment to shut down or are disclurred.
3. What kind of solar plates can I connect to SAJ H2-10k-s3? This team has 2 independent MPPT admit maximum input current of 16A by chain. Thanks to this high range of amperage, it is 100% compatible with the modern high power solar of leading brands, even those that have large-format cells.
4. Does inverter does noise when you work at maximum power? No, it offers operation completely silent. Your chassis with IP65 industrial protection dissipates the residual heat using a system of natural convection, completely eliminating the external mechanical fans that generate annoying noises and tend to be damaged with the passage of time due to dust.
