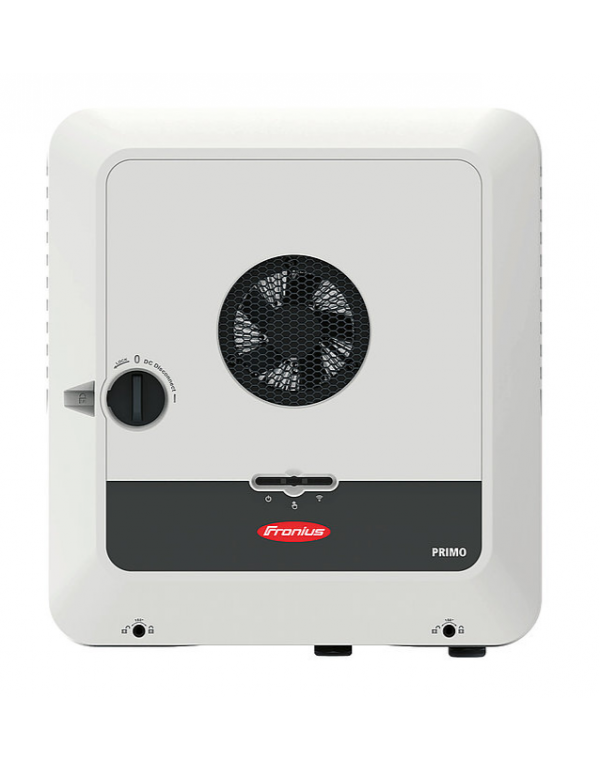

Inverter Solar Fronius Primo Gen24 5.0 Plus | Hybrid Inverter Single-phase with electric backrest

Fronius Primo Gen24 5.0 Plus: Resilience and intelligent control of your photovoltaic surpluses

The optimization of a modern residential photovoltaic installation requires a nucleus inverter Versatile that coordinates solar production, domestic burdens and storage. The hybrid Inverter Fronius Primo Gen24 5.0 Plus It assumes this control with the maximum precision of Austrian engineering. Impeccably synchronize your continuous energy solar With the single-phase housing network, prioritizing the instantaneous consumption of your appliances and deriving surplus towards batteries to ensure a clean supply during the night.

Energy assured before blackouts: PV Point and Full technology BackUp

The great competitive advantage of the platform Gen24 plus in front of the inverters Traditional is your ability to maintain the power supply of your home in the face of public distribution network:

• PV POINT (integrated series): It is an automated emergency output that provides up to 3 kW of single-phase power during radiation hours. If a light cut occurs, it allows directly essential appliances (such as refrigerators, routers or chargers) using the direct production of the solar panels, with or without connected accumulators.

• Full BackUp (Advanced): By adding an external switching box and the use of lithium batteries, the inverter It assumes the total control of the house in milliseconds, feeding all the home single-phase circuits in a transparent manner before a supply cut of the general electrical network.

Advanced Shadow Management and New Generation Design

On Tienda Solar We bet on teams that facilitate technical deployment and ensure a long service life. The Primo Gen24 range replaces the old Snapinverter structure by an ultra-lobby and compact chassis with rapid closing screws of a quarter turn, achieving an ideal IP66 degree for installations both indoors and weathering. Thanks to his 2 independent MPPT followers, Tolerate Strings configurations on roofs with different orientations (such as East-West Structures). In the presence of partial shadows caused by trees or chimneys, its intelligent algorithm Dynamic Peak Manager performs a continuous scan of the I-V curve to ensure your photovoltaic plates Always operate at your point of maximum performance.

Technical specifications (Primo Gen24 5.0 plus model):

• Nominal output power (AC): 5000 W (5 kW)

• Maximum input power (DC): 7500 W (Excellent margin for the oversizing solar)

• Number of MPPT followers: 2

• Maximum efficiency Inverter: 97,2%

• Compatible batteries: High voltage accumulators BYD Battery-Box Premium HVS / HVM

• Battery input voltage range: 150 V - 455 V

• Connection to Network: Single-phase (220V / 230V)

• Degree of environmental protection: IP66 (total sealing against dust and powerful water jets for external installation)

• Serial connectivity: WLAN (WiFi), Ethernet (LAN), 2x RS485 (Modbus RTU), Digital Tickets / Outputs for Smart Charging Management

• Refrigeration system: Intelligent forced ventilation (Active Cooling)

• Dimensions of the Inverter: 52.8 x 47.4 x 16.3 cm

• Net weight of the team: 16.6 kg

Frequently Asked Questions (FAQ)

1. Is it mandatory to install a battery to use the Fronius Primo Gen24 5.0 Plus? No, this hybrid Inverter can operate perfectly as a inverter Connecting network connection in a first phase of the installation. As a team Battery Ready, it allows you to integrate a lithium battery in the future directly, without having to change the inverter Neither add additional load components.

2. What lithium battery brands are compatible with this 5000W equipment? The Gen24 Plus line is approved to work in perfect harmony with the High voltage lithium batteries brand BYD, specifically the series BYD Battery-Box Premium HVS and HVM. It is not compatible with standard low voltage (48V) batteries or with ancient lead-acid technologies.

3. How does the PV Point emergency output work if I do not have installed battery? If you suffer a network blackout during the day and your solar they are receiving radiation, the inverter Automatically active PV POINT. You can extract from there to 3000W of power to feed critical consumption using directly the electricity generated by your At that very moment.

4. Why is the Active Cooling system superior to passive cooling? By centralizing the photovoltaic conversion and the management of battery charge cycles, the internal components accumulate temperature. The system Active Cooling Emple a smart front fan that forced dissipating heat, avoiding overheating performance losses (derating) And substantially extending the useful life of all electronics.
