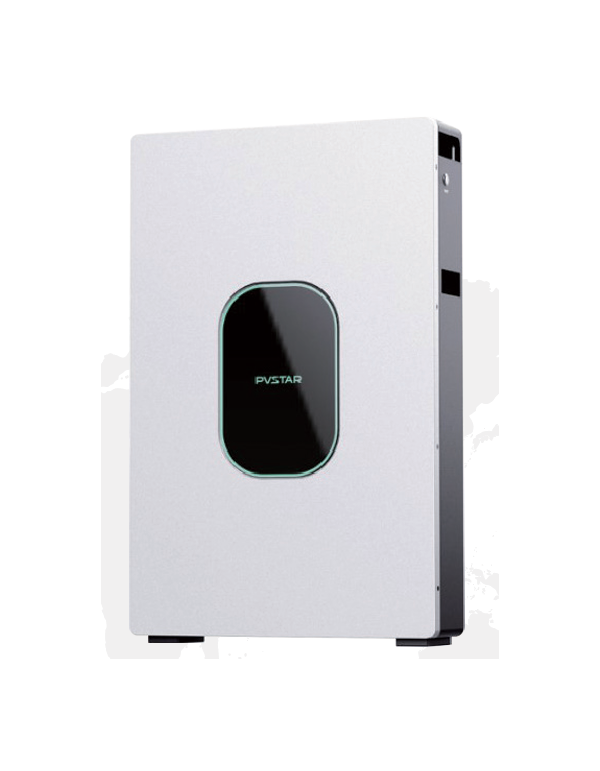

PVSTAR Low Voltage Solar Battery 5.12 kWh

Installation and Design: The PVS-LB 5K-G2 battery features a modular design with plug-in connections, which facilitates quick and easy installation with basic tools. Its stable, anti-tilt structure ensures seamless integration into any environment, whether residential or commercial.

Reliability and Protection: This battery offers high reliability thanks to its safe LFP technology and integral BMS protection. Cell-level monitoring and IP65 protection make it suitable for indoor and outdoor use, ensuring durability and resistance.

Interface and Monitoring: Online monitoring via the PVSTAR app enables real-time control and management, making it easy to monitor the performance and efficiency of the energy storage system.

Technical Specifications:

• Cell type: LiFePO4
• Nominal capacity: 5.12 kWh
• Nominal battery voltage: 51.2V
• Battery voltage range: 44.8V~58.4V
• Maximum charge/discharge power: 3.07 kW/5.12 kW
• Dimensions: 460mm x 165mm x 652mm
• Module weight: 50 kg
• Installation location: Indoor/Outdoor
• Mounting: Floor bracket/wall bracket
• Operating temperature: Load: -5℃
• Cooling system: Natural convection
• Degree of protection: IP65
• Maximum relative humidity: 5%~95%, non-condensing
• Max. operating altitude: 3,000m
• Scalability: Max. 32 batteries in parallel
• Communication: CAN/RS485/Wifi/Dry contact
• Certification & Standard: IEC 62619, IEC EN 61000-6-x, IEC EN 62040-1, IEC EN 62477-1, UN38.3
• Number of cycles: 6,000 cycles

Frequently Asked Questions:

• What type of technology does the PVS-LB 5K-G2 battery use?

It uses LFP (LiFePO4) technology, which is known for its safety and reliability.

• Is it suitable for outdoor use?

Yes, it is IP65 protected, which makes it ideal for indoor and outdoor use.

• How is the system monitored?

Monitoring is carried out via the PVSTAR app, which allows real-time control and management.

Imagine a home where solar energy is not just an option, but an efficient and reliable reality. With the PVS-LB 5K-G2 low voltage solar battery, every day is an opportunity to store and make the most of the sun's energy. From simple installation to intuitive monitoring, this battery transforms the way you manage your energy, ensuring you always have access to electricity, even during power outages. With its robust design and advanced protection, the PVS-LB 5K-G2 is more than a battery; it's the key to a sustainable energy future.
