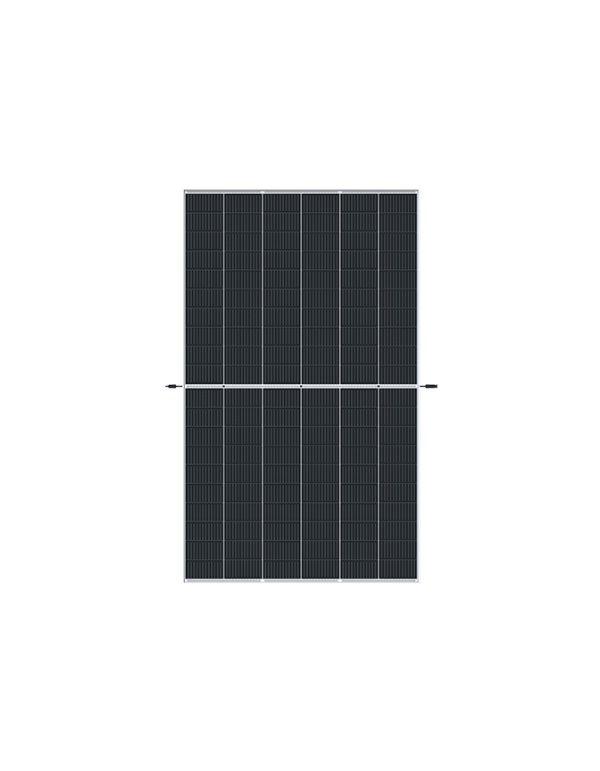

Solar Panel Trina Vertex 595W Mono Perc

Innovation and Cutting-Edge Technology

The Trina Vertex 595W features multi-busbar technology and high-efficiency monocrystalline cells for improved light harvesting and reduced series resistance. Thanks to its design with high-density interconnections, this panel optimises power generation even in low irradiance and partial shading conditions.

Guaranteed Performance and Durability

• Maximum Efficiency: Up to 21.3%, allowing for more energy production in less space.
• Low Degradation: Only 2% in the first year and 0.55% per year until year 25.
• High Endurance: Withstands high wind and snow loads with a capacity of 5400 Pa at the front and 2400 Pa at the back.
• Extreme Environment Resistant: Protection against PID, humidity, salt spray, sand and ammonia, ideal for coastal and desert areas.

Technical Specifications

• Peak Power (Pmax): 595W
• Maximum Power Voltage (Vmp): 34.5V
• Maximum Power Current (Imp): 17.25A
• Open Circuit Voltage (Voc): 41.5V
• Short Circuit Current (Isc): 14.85A
• Dimensions: 2172×1303×33 mm
• Weight: 30.6 kg
• Cell Type: Monocrystalline
• Connector: MC4 EVO2 / TS4
• Certifications: IEC61215/IEC61730, UL61730, ISO 9001, ISO 14001, ISO 14064, ISO 45001

Frequently Asked Questions (FAQs)

Is this panel compatible with microinverters?

Yes, as long as the microinverter is compatible with the power and voltage of the panel. It is recommended to check with the inverter manufacturer.

How many panels do I need for a residential installation?

It depends on the energy consumption of the household. On average, a household needs between 5 and 10 panels of this type for an efficient installation.

What kind of maintenance is required?

Minimal maintenance: periodic cleaning to avoid dirt accumulation and checking electrical connections.

Is it suitable for installation on pitched roofs?

Yes, it can be installed on pitched roofs and ground structures with the appropriate support.

How long does it take for the investment to pay for itself?

Depending on consumption and electricity tariff, the payback is usually between 4 and 7 years.

With the Trina Vertex 595W Solar Panel, efficiency, resilience and cost-effectiveness are assured - harness the power of the sun with the best technology available on the market!
